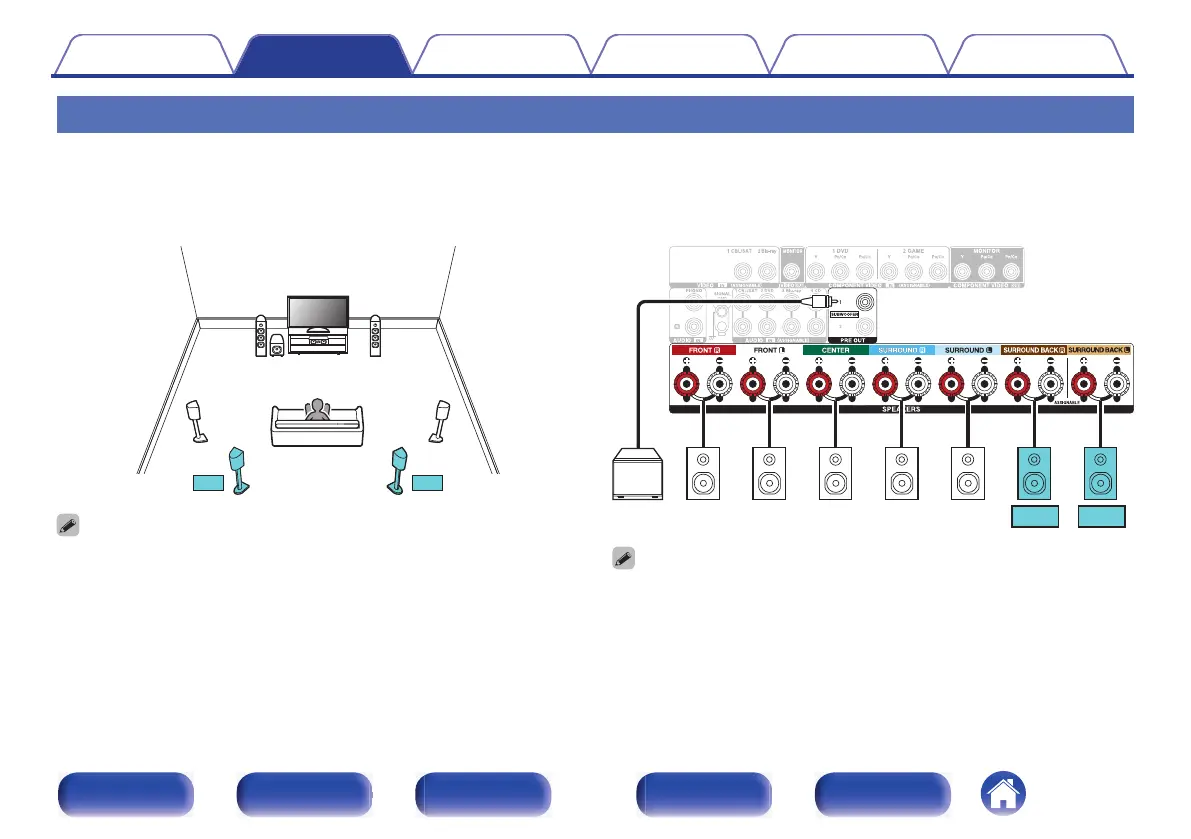

Connecting 7.1-channel speakers
System for 7.1-channel surround playback.
o
Example connections when using surround back speakers
This 7.1-channel surround system is the same as a basic 5.1-channel system but with surround back speakers.
.
FL
SW
C
SL
FR
SR
SBR
SBL
0
Set “Assign Mode” to “Surround Back” in the menu. (
v
p. 184)
.
SBR
SBL
SW
FL
FR
C
SR
SL
0
When using a single surround back speaker, connect it to the SURROUND BACK
L terminal.
