Applied configuration and connection
n

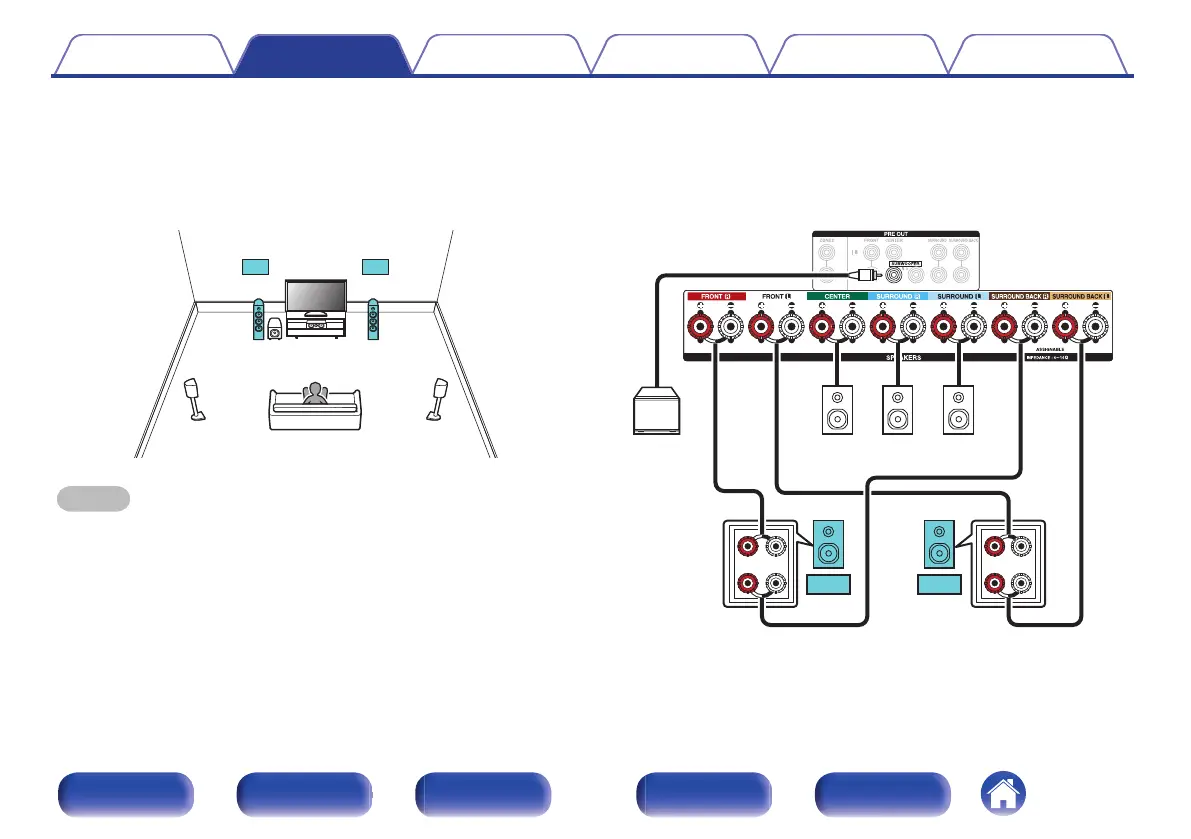

5.1-channel (bi-amp connection of front speaker)
This is a method of connecting separate amplifiers to the tweeter terminals and woofer terminals of bi-amp compatible speakers. This connection
enables back EMF (power returned without being output) from the woofer to flow into the tweeter without affecting the sound quality, producing a
higher sound quality.
.
FL
(Bi-Amp)
FR
(Bi-Amp)
SW C
SL
SR
NOTE
0
When making bi-amp connections, be sure to remove the short-circuiting plate or
wire between the speaker’s woofer and tweeter terminals.
.
wqwq
(R) (L)
CSRSL
FLFR
SW
Contents
Connections Playback Settings Tips Appendix
45
Front panel Display Rear panel Remote Index

Denon AVR-X3200W Specifications

General

Receiver type	Surround
Input sensitivity	200 mV
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	100 dB
Power output per channel (1KHz@6 Ohm)	180 W
Power output per channel (20-20KHz@8 Ohm)	105 W
HDMI in	8
Audio (L/R) in	5
Composite video in	3
USB ports quantity	1
Component video (YPbPr/YCbCr) in	2
12V trigger	Yes
Speakers connectivity type	-
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Internet radio services supported	vTuner
Optical drive included	No
Display	LCD
Product color	Black
Audio decoders	DTS-HD Master Audio, Dolby Surround, Dolby TrueHD
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (typical)	650 W

Weight and Dimensions

Depth	388 mm
Width	434 mm
Height	167 mm
Weight	11300 g
