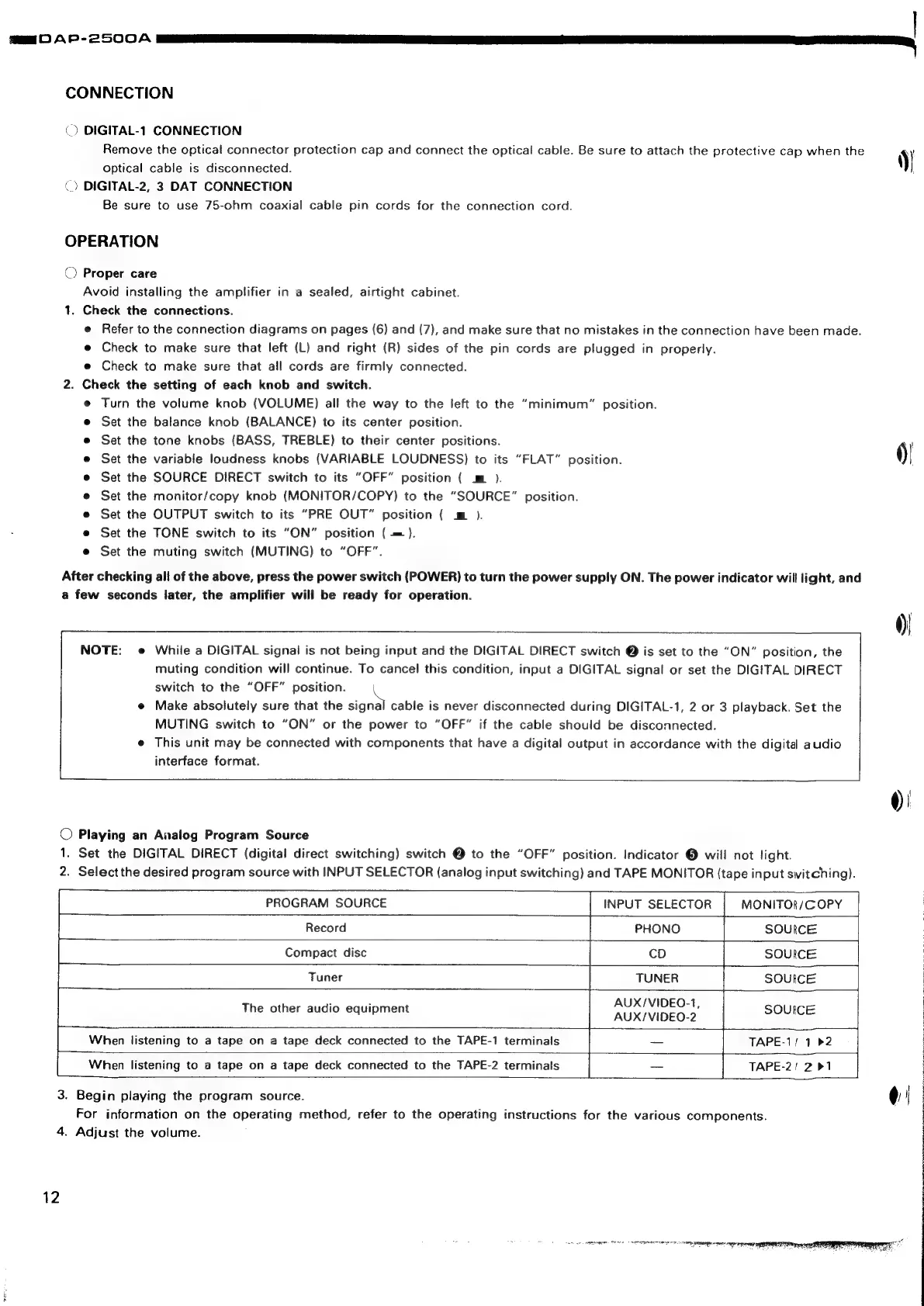

sg OO OP-2500A EE
CONNECTION
() DIGITAL-1 CONNECTION
Remove the optical connector protection cap and connect the optical cable. Be sure to attach the protective cap when the Ny
Optical cable ts disconnected.
(©) DIGITAL-2, 3 DAT CONNECTION
Be sure to use 75-ohm coaxial cable pin cords for the connection cord.
OPERATION
© Proper care
Avoid installing the amplifier in a sealed, airtight cabinet.
1. Check the connections.
e Refer to the connection diagrams on pages (6) and (7), and make sure that no mistakes in the connection have been made.
e Check to make sure that left (L) and right (R) sides of the pin cords are plugged in properly.
e Check to make sure that all cords are firmly connected.
2. Check the setting of each knob and switch.
Turn the volume knob (VOLUME) all the way to the left to the “minimum” position.
Set the balance knob (BALANCE) to its center position.
Set the tone knobs (BASS, TREBLE) to their center positions. \
Set the variable loudness knobs (VARIABLE LOUDNESS) to its “FLAT” position. )
Set the SOURCE DIRECT switch to its “OFF” position ( m ).
Set the monitor/copy knob (MONITOR/COPY) to the “SOURCE” position.
Set the OUTPUT switch to its “PRE OUT” position ( m™ ).
Set the TONE switch to its “ON” position ( = ).
Set the muting switch (MUTING) to “OFF”.
After checking all of the above, press the power switch (POWER) to turn the power supply ON. The power indicator will light, and
a few seconds later, the amplifier will be ready for operation.
0)
NOTE: @ While a DIGITAL signal is not being input and the DIGITAL DIRECT switch @ is set to the “ON” position, the
muting condition will continue. To cancel this condition, input a DIGITAL signal or set the DIGITAL DIRECT
switch to the “OFF” position.
e@ Make absolutely sure that the dann cable is never disconnected during DIGITAL-1, 2 or 3 playback. Set the
MUTING switch to “ON” or the power to “OFF” if the cable should be disconnected.
e This unit may be connected with components that have a digital output in accordance with the digital audio
interface format.
®!
© Playing an Analog Program Source
1. Set the DIGITAL DIRECT (digital direct switching) switch @ to the “OFF” position. Indicator @ will not light.
2. Select the desired program source with INPUT SELECTOR (analog input switching) and TAPE MONITOR (tape input switching).
PROGRAM SOURCE ! INPUT SELECTOR I MONITOR/COPY
Record PHONO SOURCE
Compact disc cD SOUICE |
Tuner 1 TUNER SOUICE
: ; AUX/VIDEO-1,
The other audio equipment AUX/VIDEO-2 SOURCE
When listening to a tape on a tape deck connected to the TAPE-1 terminals —_— TAPE-1/ 1 >2
When listening to a tape on a tape deck connected to the TAPE-2 terminals —_ TAPE-2/ 2 »1
!
3. Begin playing the program source. TI \
For information on the operating method, refer to the operating instructions for the various components.
4. Adjust the volume.
12
ee ae ee
