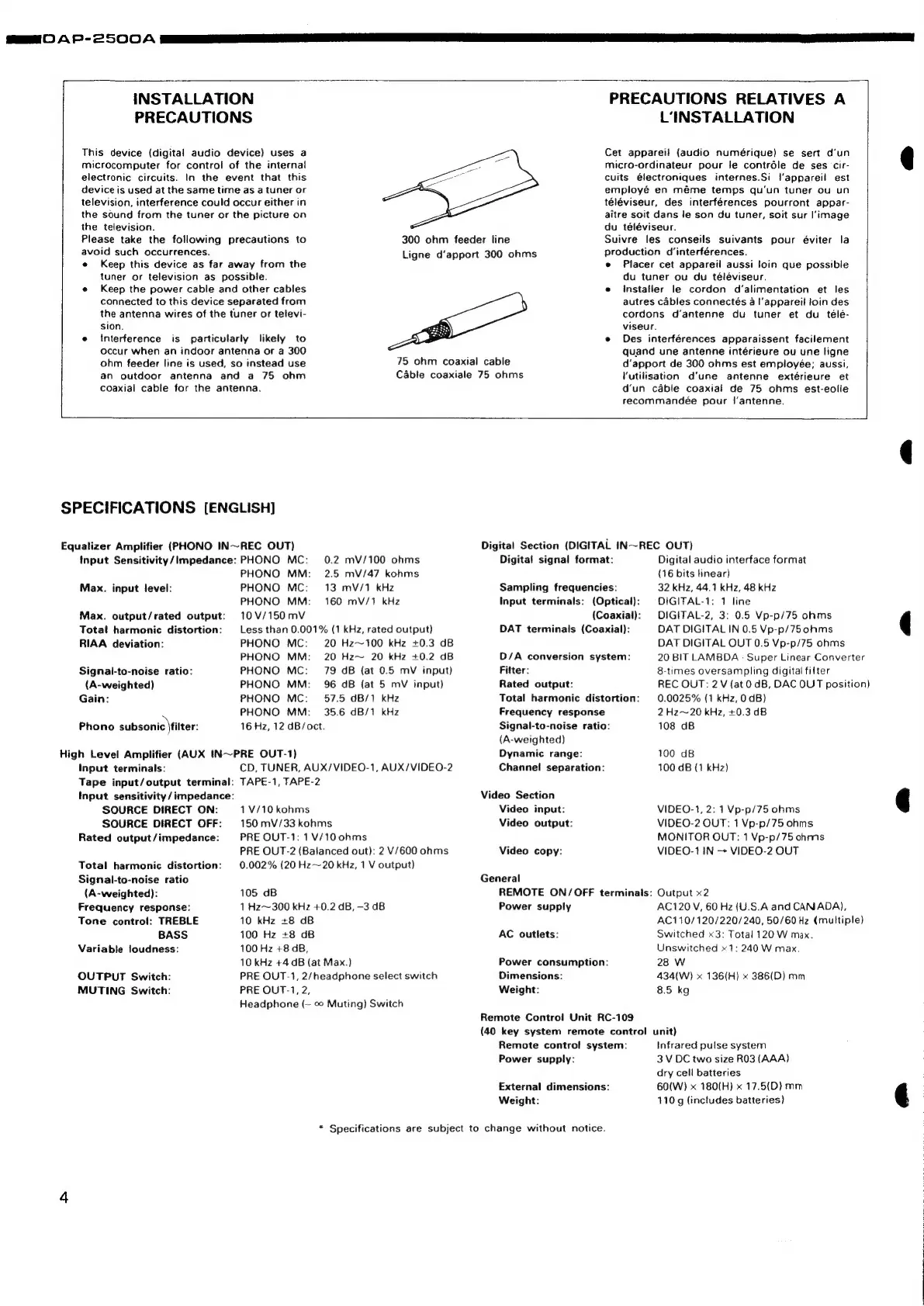

INSTALLATION PRECAUTIONS RELATIVES A
PRECAUTIONS L'INSTALLATION
This device (digital audio device) uses a Cet appareii (audio numérique) se sert d‘un @
microcomputer for control of the internal micro-ordinateur pour le contréle de ses cir-
cuits électroniques internes.Si l'appareil est
employé en méme temps qu’un tuner ou un
téléviseur, des interférences pourront appar-
aitre soit dans le son du tuner, soit sur l'image
du téléviseur.
Suivre les conseils suivants pour éviter la
production d’interférences.
Placer cet appareil aussi loin que possibile
du tuner ou du téléviseur.
electronic circuits. In the event that this
device is used at the same time as a tuner or
television, interference could occur either in
the sound from the tuner or the picture on
the television. ‘
Please take the following precautions to 300 ohm feeder tine
avoid such occurrences. Ligne d’apport 300 ohms
e Keep this device as far away from the °
tuner or television as possible.
@ Keep the power cable and other cables e
connected to this device separated from
the antenna wires of the tuner or televi-
sion.
e Interference is particularly likely to
occur when an indoor antenna or a 300
ohm feeder line is used, so instead use
an outdoor antenna and a 75 ohm
coaxial cable for the antenna.
75 ohm coaxial cable
Cable coaxiale 75 ohms
Installer le cordon d’alimentation et les
autres cables connectés a l'appareil loin des
cordons d’antenne du tuner et du télé-
viseur.
e Des interférences apparaissent facilement
quand une antenne intérieure ou une ligne
d’apport de 300 ohms est employée; aussi,
Vutilisation d’une antenne extérieure et
d’‘un cable coaxial de 75 ohms est-eolle
recommandée pour |’antenne.
SPECIFICATIONS [ENGLISH]
Equalizer Amplifier (PHONO IN~REC OUT) Digital Section (DIGITAL IN~REC OUT)
Input Sensitivity /Impedance: PHONO MC:
0.2 mV/100 ohms
Digitat signal format:
Digital audio interface format
PHONO MM: 2.5 mV/47 kohms (16 bits linear)
Max. input level: PHONO MC: 13 mV/1 kHz Sampling frequencies: 32 kHz, 44.1 kHz, 48 kHz
PHONO MM: 160 mV/1 kHz Input terminals: (Optical): © DIGITAL-1: 1 line
Max. output/rated output: 10V/150 mV (Coaxial): DIGITAL-2, 3: 0.5 Vp-p/75 ohms
Total harmonic distortion:
Less than 0.001% (1 kHz, rated output)
DAT terminals (Coaxial):
DAT DIGITAL IN 0.5 Vp-p/75 ohms
RIAA deviation: PHONO MC: 20 Hz~100 kHz +0.3 dB DAT DIGITAL OUT 0.5 Vp-p/75 ohms
PHONO MM: 20 Hz~ 20 kHz +0.2 dB D/A conversion system: 20 BIT LAMBDA - Super Linear Converter
Signal-to-noise ratio: PHONO MC: 79 dB (at 0.5 mV input) Filter: 8-times oversampling digital filter
(A-weighted) PHONO MM: 96 dB (at 5 mV input) Rated output: REC OUT: 2 V (at 0 dB, DAC OUT position)
Gain: PHONO MC: 57.5 dB/1 kHz Total harmonic distortion: 0.0025% (1 kHz, 0 dB)
PHONO MM: 35.6 dB/1 kHz Frequency response 2 Hz~20 kHz, +0.3 dB
Phono subsonic \filter: 16 Hz, 12 dB/oct. Signal-to-noise ratio: 108 dB
(A-weighted)
High Level Amplifier (AUX IN~PRE OUT-1) Dynamic range: 100 dB
input terminals: CD, TUNER, AUX/VIDEO-1, AUX/VIDEO-2 Channel separation: 100 dB (1 kHz)
Tape input/output terminal: TAPE-1, TAPE-2
Input sensitivity /impedance: Video Section
SOURCE DIRECT ON:
SOURCE DIRECT OFF:
Rated output /impedance:
Total harmonic distortion:
Signal-to-noise ratio
(A-weighted):
Frequency response:
Tone control: TREBLE
BASS
Variable loudness:
OUTPUT Switch:
MUTING Switch:
1V/10 kohms
150 mV/33 kohms
PRE OUT-1: 1V/10 ohms
PRE OUT-2 (Balanced out): 2 V/600 ohms
0.002% (20 Hz~ 20 kHz, 1 V output)
105 dB
1 Hz~300 kHz +0.2 dB, -3 dB
10 kHz +8 dB
100 Hz +8 dB
100 Hz +8 GB,
10 kHz +4 dB (at Max.)
PRE OUT-1, 2/headphone select switch
PRE OUT-1, 2,
Headphone (~ © Muting) Switch
Video input:
Video output:
Video copy:
General
REMOTE ON/OFF terminals:
Power supply
AC outlets:
Power consumption:
Dimensions:
Weight:
Remote Contro! Unit RC-109
(40 key system remote control unit)
Remote controf system:
Power supply:
External dimensions:
Weight:
* Specifications are subject to change without notice.
VIDEO-1, 2: 1 Vp-p/75 ohms
VIDEO-2 OUT: 1 Vp-p/75 ohms
MONITOR OUT: 1 Vp-p/75 chrns
VIDEO-1 IN -+ VIDEO-2 OUT
Output x2
AC120 V, 60 Hz (U.S.A and CANADA),
AC110/120/220/240, 50/60 Hz (multiple)
Switched x3: Total 120 W max.
Unswitched x1: 240 W max.
28 W
434(W) x 136(H) x 386(D) mm
8.5 kg
Infrared pulse system
3 V DC two size R03 (AAA)
dry cell batteries
60(W) x 180(H) x 17.5(D) mm
110 g (includes batteries)
