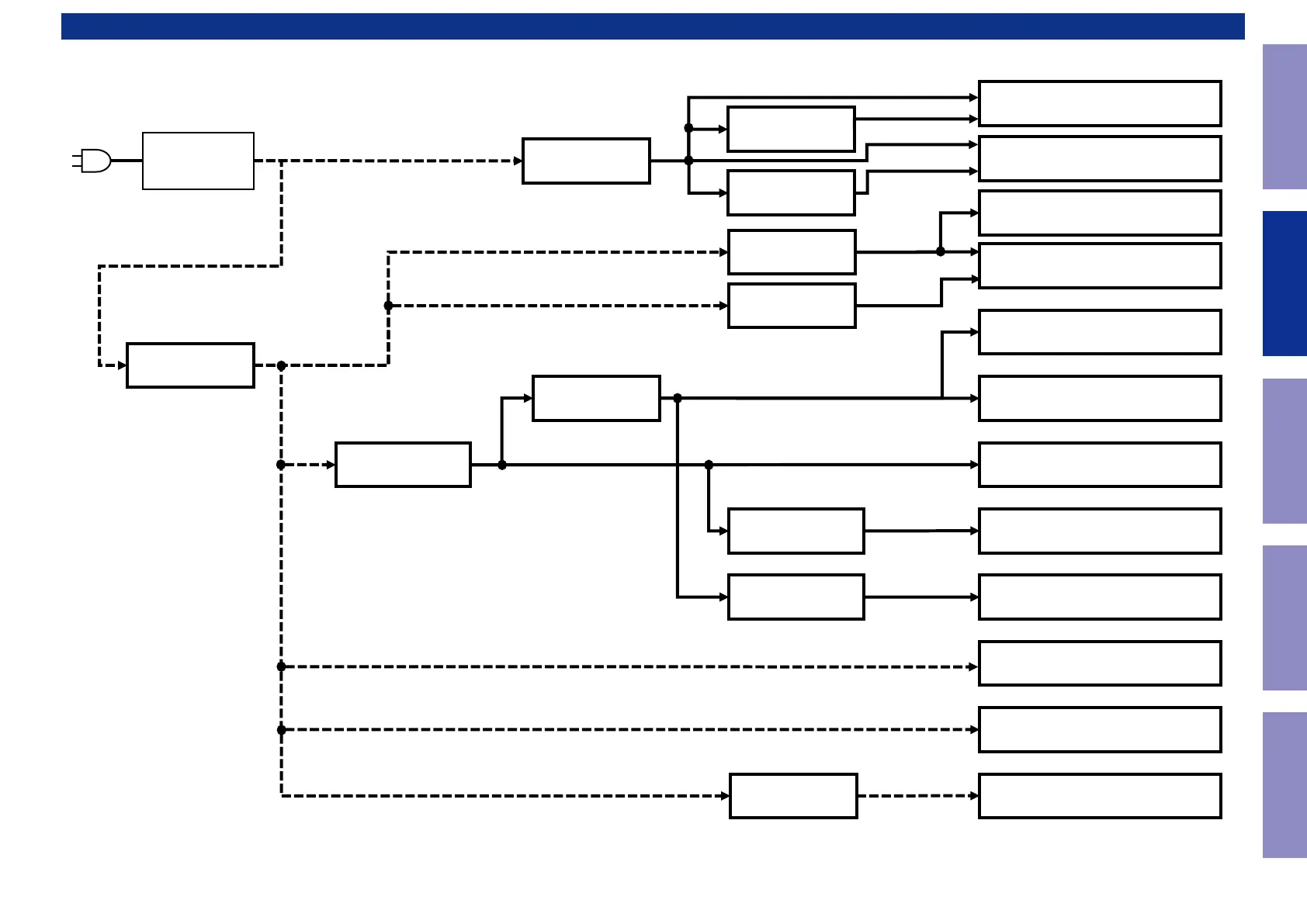

POWER DIAGRAM
Power DIAGRAMDENON HOME350
SMPS
DCDC(28V/2A)
TPS54232
Main_5VD
DCDC(17V/3A)
TPS563201
+3.3V_D
DCDC(17V/3A)
TPS563201
+1.8V_D
LDO
TLV75733
MCU_3.3V
LDO
TLV75733
VOICE_3.3V
SWITCH
MTA50P01SN3
5VD
SWITCH
MMBT3906
+5V_FRONT_LED
PVDD
SUN Module
D-AMP
(TAS5342ADDVR)
ADC
(PCM1862)
AUDIO DSP
(D2-92633-LR)
VOICE DSP
(CX20291)
APPLE
(authentication)
LED DRIVER
(Voice_IS31FL3236A)
LED DRIVER
(Single_IS31FL3236A)
TOUCH/PROXIMITY SENSOR
(CY8C4045ZA1)
LDO
NJW4184U2-12A
SWITCH
RS1E260ATTB1
PVDD_AMP
IPVDD_12V0_1
SWITCH
MTA50P01SN3
+3.3V_MIC
MIC
Front LED
5VD
VOICE_3.3V
Main_5VD
Main_5VD
PVDD
Main_5VD
Main_5VD
D-AMP
(TAS5342ADDVR)
LDO
NJW4184U2-12A
PVDD_AMP
IPVDD_12V0_2
Before Servicing
This Unit
Electrical Mechanical Repair Information Updating
35

Denon HOME 350 Specifications

General

Product color	Black
Volume control	Touch
Recommended usage	Tablet / Smartphone
Remote control type	Wireless
Multi-Room Streaming (MRS) support	Yes
Speaker type	-
Woofer diameter	165 mm
Tweeter diameter	19 mm
Number of drivers	6
Speaker placement	Tabletop/bookshelf
Audio output channels	2.0 channels
Mid-range driver diameter	50 mm
Number of mid-range drivers	2
RMS rated power	- W
Amplifier class	D
Connectivity technology	Wired & Wireless
Ethernet LAN (RJ-45) ports	1
Cables included	AC
Package depth	248 mm
Package width	468 mm
Package height	338 mm
Package weight	8500 g
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Weight and Dimensions

Depth	180 mm
Width	380 mm
Height	225 mm
Weight	6300 g
