Denon PMA-520 User Manual

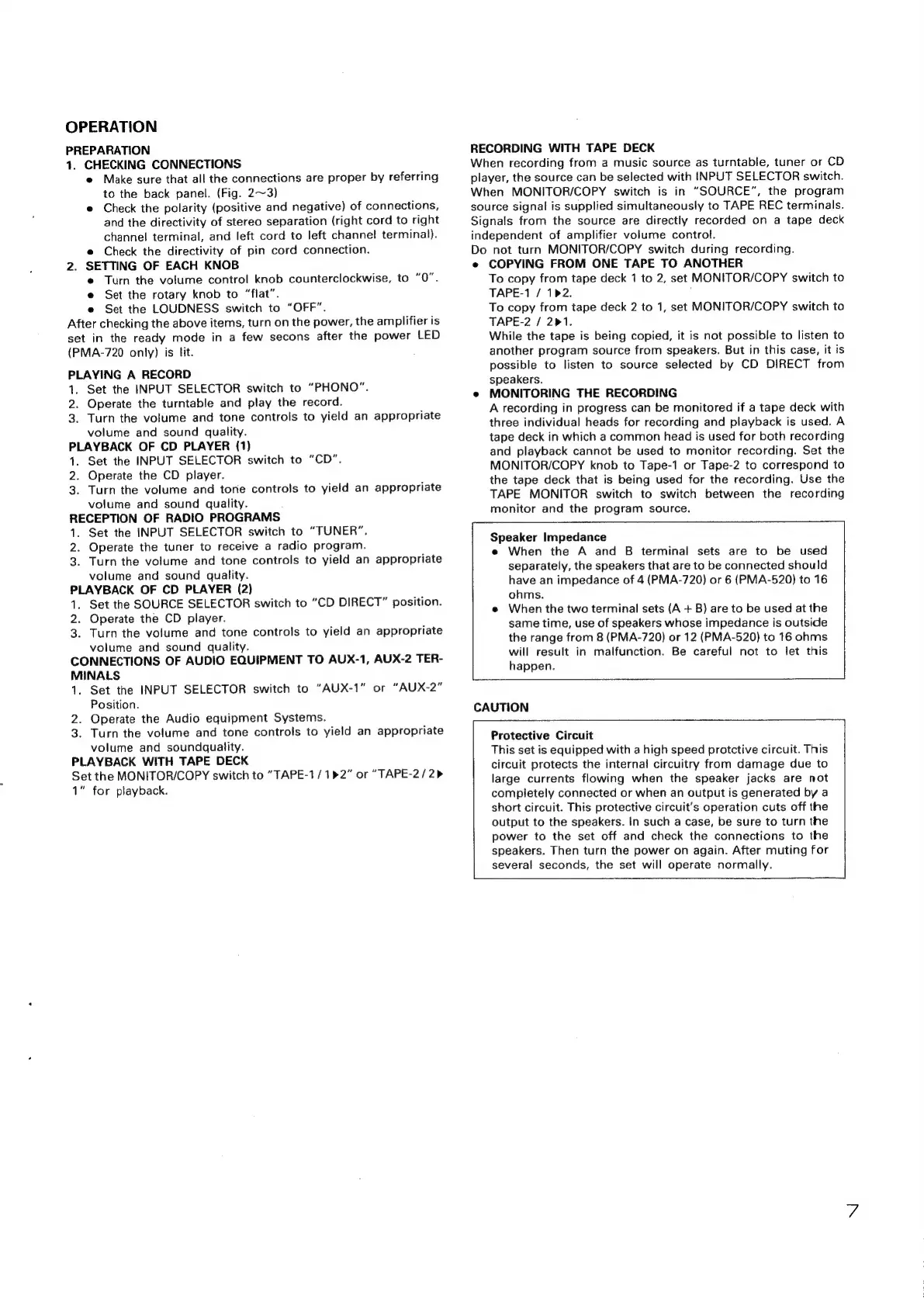

OPERATION
PREPARATION
1. CHECKING CONNECTIONS
e
Make
sure
that
all
the
connections
are
proper
by
referring
to
the
back
panel.
(Fig.
2~3)
e
Check
the
polarity
(positive
and
negative)
of
connections,
and
the
directivity
of
stereo
separation
(right
cord
to
right
channel
terminal,
and
left
cord
to
left
channel
terminal).
e Check the directivity of pin cord connection.
2. SETTING OF EACH KNOB
e Turn the volume control knob counterclockwise, to “0”.
e Set the rotary knob to “flat”.
e Set the LOUDNESS switch to “OFF”.
After
checking
the
above
items,
turn
on
the
power,
the
amplifier
is
set
in
the
ready
mode
in
a
few
secons
after
the
power
LED
(PMA-720
only)
is
fit.
PLAYING A RECORD
1. Set the INPUT SELECTOR switch to “PHONO”.
2. Operate the turntable and play the record.
3.
Turn
the
volume
and
tone
controls
to
yield
an
appropriate
volume
and
sound
quality.
PLAYBACK OF CD PLAYER (1)
1. Set the INPUT SELECTOR switch to “CD”.
2. Operate the CD player.
3.
Turn
the
volume
and
tone
controls
to
yield
an
appropriate
volume
and
sound
quality.
RECEPTION OF RADIO PROGRAMS
1. Set the INPUT SELECTOR switch to “TUNER”.
2. Operate the tuner to receive a radio program.
3.
Turn
the
volume
and
tone
controls
to
yield
an
appropriate
volume
and
sound
quality.
PLAYBACK OF CD PLAYER (2)
1.
Set
the
SOURCE
SELECTOR
switch
to
“CD
DIRECT”
position.
2. Operate the CD player.
3.
Turn
the
volume
and
tone
controls
to
yield
an
appropriate
volume
and
sound
quality.
CONNECTIONS
OF
AUDIO
EQUIPMENT
TO
AUX-1,
AUX-2
TER-
MINALS
1.
Set
the
INPUT
SELECTOR
switch
to
“AUX-1"
or
“AUX-2”
Position.
2. Operate the Audio equipment Systems.
3.
Turn
the
volume
and
tone
controls
to
yield
an
appropriate
volume
and
soundquality.
PLAYBACK WITH TAPE DECK
Set the MONITOR/COPY switch to “TAPE-1/1>2” or “TAPE-2/2>
1” for playback.
RECORDING WITH TAPE DECK
When recording from a music source as turntable, tuner or CD
player, the source can be selected with INPUT SELECTOR switch.
When MONITOR/COPY switch is in “SOURCE”, the program
source signal is supplied simultaneously to TAPE REC terminals.
Signals from the source are directly recorded on a tape deck
independent of amplifier volume control.
Do not turn MONITOR/COPY switch during recording.
e@ COPYING FROM ONE TAPE TO ANOTHER
To copy from tape deck 1 to 2, set MONITOR/COPY switch to
TAPE-1 / 1>2.
To copy from tape deck 2 to 1, set MONITOR/COPY switch to
TAPE-2 / 21.
While the tape is being copied, it is not possible to listen to
another program source from speakers. But in this case, it is
possible to listen to source selected by CD DIRECT from
speakers.
e MONITORING THE RECORDING
A recording in progress can be monitored if a tape deck with
three individual heads for recording and playback is used. A
tape deck in which a common head is used for both recording
and playback cannot be used to monitor recording. Set the
MONITOR/COPY knob to Tape-1 or Tape-2 to correspond to
the tape deck that is being used for the recording. Use the
TAPE MONITOR switch to switch between the recording
monitor and the program source.
Speaker Impedance
@ When the A and B terminal sets are to be used
separately, the speakers that are to be connected should
have an impedance of 4 (PMA-720) or 6 (PMA-520) to 16
ohms.
When the two terminal sets (A + B) are to be used at the
same time, use of speakers whose impedance is outside
the range from 8 (PMA-720) or 12 (PMA-520) to 16 ohms
will result in malfunction. Be careful not to let this
happen.
CAUTION
Protective Circuit
This set is equipped with a high speed protctive circuit. This
circuit protects the internal circuitry from damage due to
large currents flowing when the speaker jacks are not
completely connected or when an output is generated by a
short circuit. This protective circuit’s operation cuts off the
output to the speakers. In such a case, be sure to turn the
power to the set off and check the connections to the
speakers. Then turn the power on again. After muting for
several seconds, the set will operate normally.
