ENGLISH
Getting Started Setup Playback Setting the Timer Other Functions Troubleshooting Specifications
Audio cables
Optical digital connections
Optical cable
Analog connections (stereo)
(White)
(Red)
Stereo pin-plug cable
Speaker connections
Speaker cables
Signal direction
Audio signal:
Output
Input
Input
Output

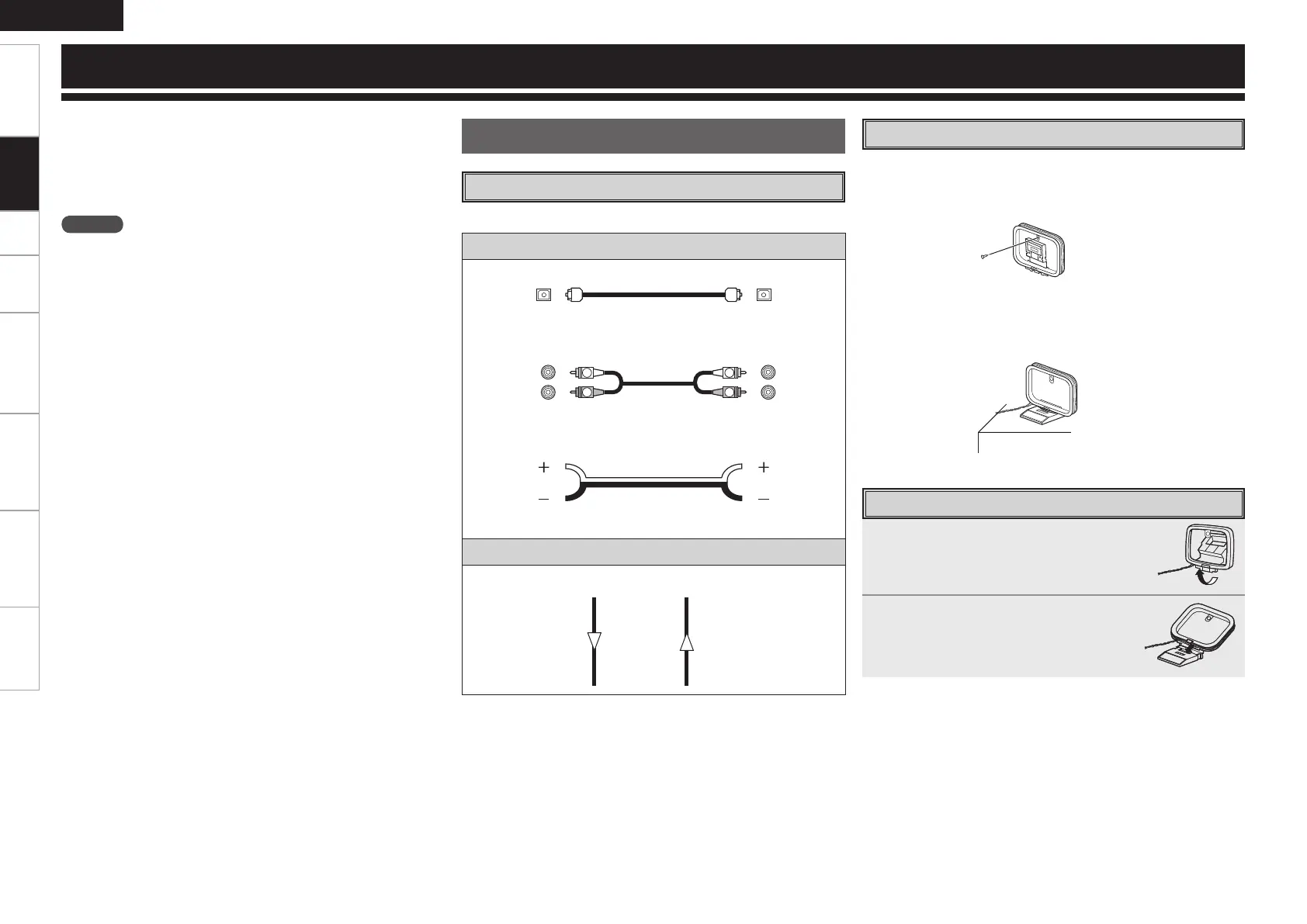

Cables Used for Connections
Select the cables according to the equipment being connected.
NOTE
• Do not plug in the power cord until all connections have been
completed.
• When making connections, also refer to the operating instructions of
the other components.
• Be sure to connect the left and right channels properly (left with left,
right with right).
• Do not bundle power cords together with connection cables. Doing
so can result in humming or noise.
Connections for all compatible audio signal format is described in
this operating instructions. Please select the types of connections
suited for the equipment you are connecting.
With some types of connections, certain settings must be made
on the RCD-CX1. For details, refer to the instructions for the
respective connection items below.
Using the AM Loop Antenna
n To use suspended on a wall
Suspend directly on the wall without assembling.
Nail, tack, etc.
n To use standing alone
Use the procedure below to assemble.
1
Bend in the direction of the arrow.
2
Insert into the hole.
Assembling the AM Loop Antenna
Connections
Connections
Preparations
1.RCD-CX1_ENG.indd 8 2008/05/30 11:20:09
To Next Page
