Denon S-52 Service Manual

8
S-52/S-52DAB/S-32
2. SPEAKERUNIT
(1) SPEAKERBOXを固定している、109 のねじ４本をはず
す。（左右同じ）
(2) SPEAKER端子に半田付けしてあるワイヤーをはずす。
（左右同じ）
(3) SPEAKERを固定している、112 のねじ 4 本をはずして
から矢印方向にはずす。（左右同じ）

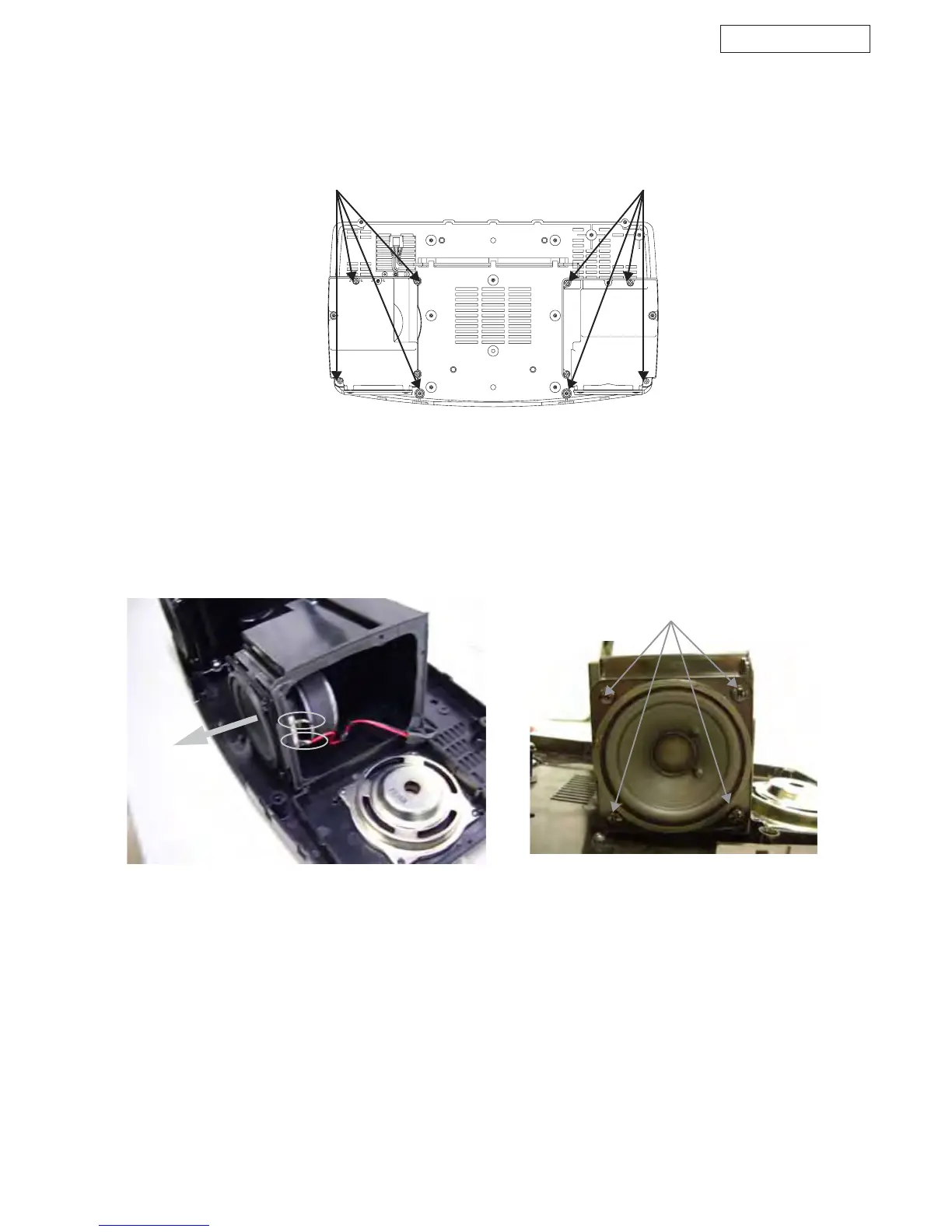

2. SPEAKER UNIT
(1) Remove the 4 screws 109 fixing the SPEAKER BOX.
(Both left and right)
(2) Remove the wire soldered to the SPEAKER terminal.
(Both left and right)
(3) Remove the 4 screws 112 fixing the speaker, then detach
the SPEAKER in the direction of the arrow.(Both left and
right)
109
109
112

Denon S-52 Specifications

General

RMS rated power	20 W
Connectivity technology	Wireless
Impedance	4 Ω
Interface	USB
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
Ethernet LAN	Yes
Product color	Black
Audio formats supported	AAC, MP3, WAV, WMA
Power requirements	100 - 240 V, 50/60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	37 W

Weight and Dimensions

Depth	226 mm
Width	380 mm
Height	126 mm
Weight	6700 g
