Denon S-52 Service Manual

94
S-52/S-52DAB/S-32
IU-3846 MAIN Unit
IU-3859-6 POWER AMP Unit

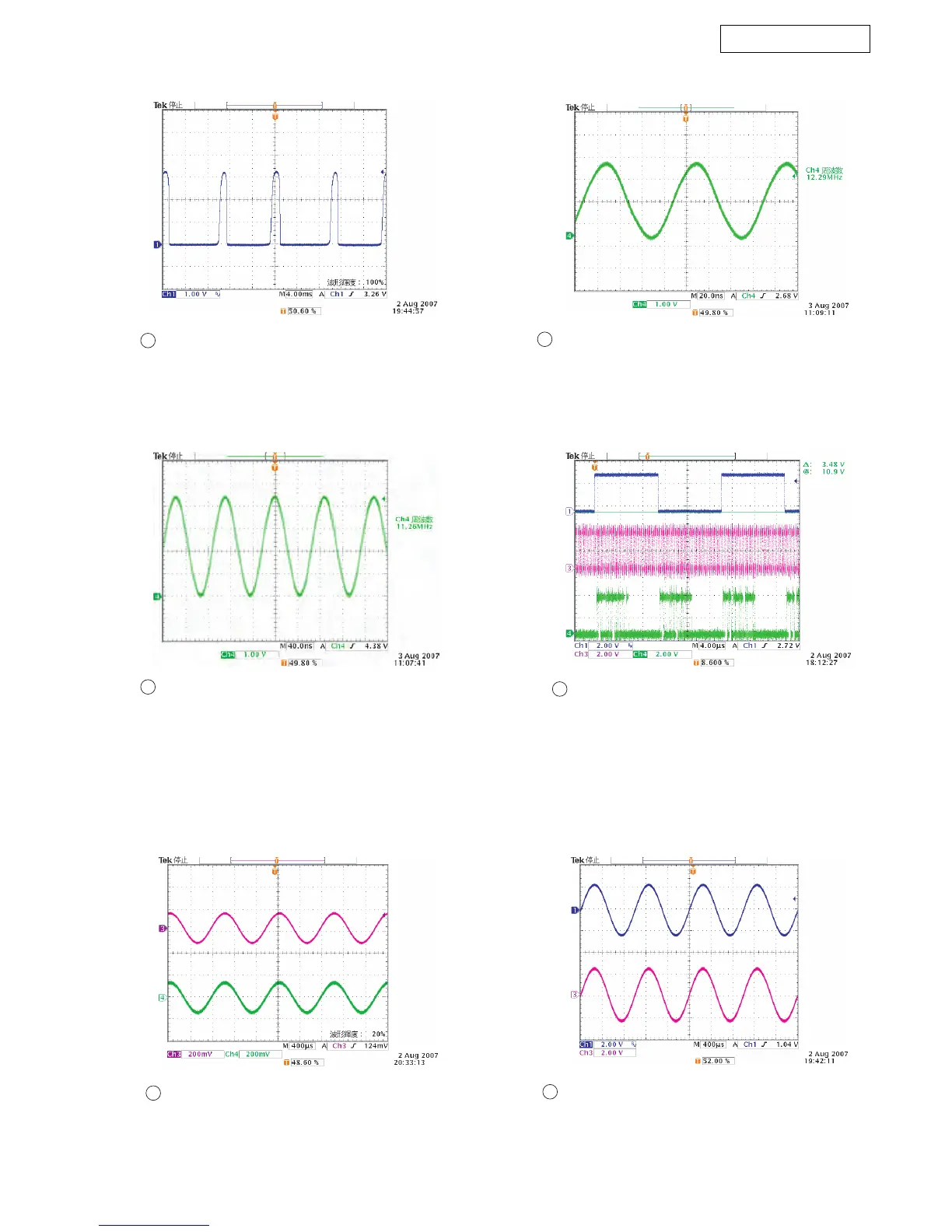

Wave form1: PWR_OFF_DET 50/60 Waveform
X302
(Refer to the SCHEMATIC DIAGRAMS 3/7)
Waveform2:CLOCK Waveform (11.2896MHz)
Wave form 3 : CLOCK Waveform (12.288MHz)
波形1:停電検出50/60波形
波形2:クロック波形(11.2896MHz)
波形3:クロック波形(12.288MHz)
CH1:IC300 10pin
CH2:IC300 11pin
CH3:IC300 32pin
(Refer to the SCHEMATIC DIAGRAMS 3/7)
ch2
ch3
ch1
A
Wave form 4 : A/D Waveform
波形4:A/D波形
D
B
C
(SCHEMATICDIAGRAMS3/7を参照)
CX051 5pin
(Refer to the SCHEMATIC DIAGRAMS 4/7)
(SCHEMATICDIAGRAMS4/7を参照)
(SCHEMATICDIAGRAMS3/7を参照)
X301
(Refer to the SCHEMATIC DIAGRAMS 3/7)
(SCHEMATICDIAGRAMS3/7を参照)
ch2
ch1
ch2
ch1
Wave form 5 : Power Amp In Waveform
Wave form 6 : Speaker In Waveform
波形5:パワーアンプ入力波形
波形6:スピーカー入力波形
E
F
CH1:IC505 2pin
CH2:IC505 4pin
(Refer to the SCHEMATIC DIAGRAMS 6/7)
(SCHEMATICDIAGRAMS6/7を参照)
CH1:CY042 1pin
CH2:CY042 4pin
(Refer to the SCHEMATIC DIAGRAMS 6/7)
(SCHEMATICDIAGRAMS6/7を参照)

Denon S-52 Specifications

General

RMS rated power	20 W
Connectivity technology	Wireless
Impedance	4 Ω
Interface	USB
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
Ethernet LAN	Yes
Product color	Black
Audio formats supported	AAC, MP3, WAV, WMA
Power requirements	100 - 240 V, 50/60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	37 W

Weight and Dimensions

Depth	226 mm
Width	380 mm
Height	126 mm
Weight	6700 g
