Denon S-52 Service Manual

SIGNAL LINE
CD
XM
87654321
A
B
C
D
E
F
SCHEMATIC DIAGRAMS (1/7)
S-52 / S-52DAB / S-32
SCHEMATIC DIAGRAMS (1/7)

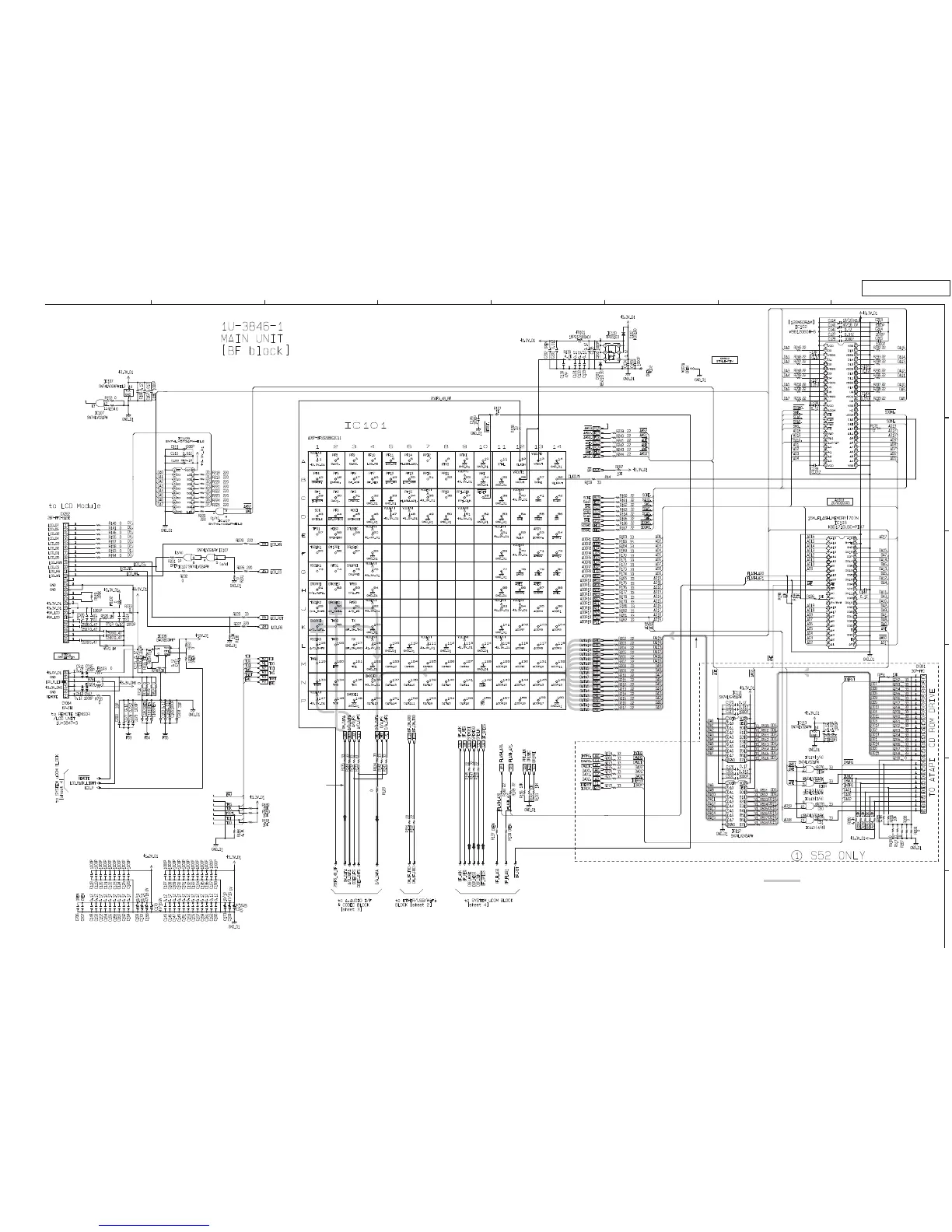

1U-3846-1 MAIN UNIT(1/4)
BF block
Note :
[Sheet 1] : SCHEMATIC DIAGRAMS (1/7), 1U-3846 MAIN UNIT - BF block
[Sheet 2] : SCHEMATIC DIAGRAMS (2/7), 1U-3846 MAIN UNIT - ETHER/USB/WiFi block
[Sheet 3] : SCHEMATIC DIAGRAMS (3/7), 1U-3846 MAIN UNIT - ANALOG AUDIO IF/CODEC block
[Sheet 4] : SCHEMATIC DIAGRAMS (4/7), 1U-3846 MAIN UNIT - SYSTEM uCOM block

Denon S-52 Specifications

General

RMS rated power	20 W
Connectivity technology	Wireless
Impedance	4 Ω
Interface	USB
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
Ethernet LAN	Yes
Product color	Black
Audio formats supported	AAC, MP3, WAV, WMA
Power requirements	100 - 240 V, 50/60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	37 W

Weight and Dimensions

Depth	226 mm
Width	380 mm
Height	126 mm
Weight	6700 g
