DeWalt D25604 User Manual

6
ENGLISH
g ) Use the power tool, accessories and tool bitsetc., in accordance
with these instructions taking into account the working
conditions and the work to beperformed. Use of the power
tool for operations different from those intended could result in a
hazardoussituation.
5) Service
a ) Have your power tool serviced by a qualified repair person
using only identical replacementparts. This will ensure that the
safety of the power tool ismaintained.
Additional Safety Instructions for Rotary Hammers
• Wear earprotectors. Exposure to noise can cause hearingloss.
• Use auxiliary handle
3
, if supplied with thetool. Loss of control can
cause personalinjury.
• Hold power tool by insulated gripping surfaces, when performing
an operation where the cutting accessory may contact hidden
wiring or its owncord. Cutting accessory contacting a “live” wire
may make exposed metal parts of the power tool “live” and could
give the operator an electricshock.

WARNING: We recommend the use of a residual current device with a
residual current rating of 30mA orless.
Residual Risks
In spite of the application of the relevant safety regulations and the
implementation of safety devices, certain residual risks cannot beavoided.
These are:
• Impairment ofhearing.
• Risk of personal injury due to flyingparticles.
• Risk of burns due to accessories becoming hot duringoperation.
• Risk of personal injury due to prolongeduse.
Electrical Safety
The electric motor has been designed for one voltageonly. Always check
that the power supply corresponds to the voltage on the ratingplate.
Your
DeWALT
tool is double insulated in accordance with
EN60745; therefore no earth wire isrequired.

WARNING: 115 V units have to be operated via a fail-safe isolating
transformer with an earth screen between the primary and
secondarywinding.
If the supply cord is damaged, it must be replaced by a specially prepared
cord available through the
DeWALT
serviceorganisation.
Mains Plug Replacement
(U.K. & Ireland Only)
If a new mains plug needs to be fitted:
• Safely dispose of the oldplug.
• Connect the brown lead to the live terminal in theplug.
• Connect the blue lead to the neutralterminal.

WARNING: No connection is to be made to the earthterminal.
Follow the fitting instructions supplied with good qualityplugs.
Recommended fuse: 13A.
Using an Extension Cable
An extension cord should not be used unless absolutelynecessary. Use an
approved extension cable suitable for the power input of your charger (see
Technical Data). The minimum conductor size is1.5 mm
2
; the maximum
length is30m.
When using a cable reel, always unwind the cablecompletely.
Package Contents
The package contains:
1 Rotary hammer (D25501, D25601, D25604)
or
1 Chipping hammer (D25831)
1 Side handle
1 Kitbox (K-models only)
1 Instruction manual
• Check for damage to the tool, parts or accessories which may have
occurred duringtransport.
• Take the time to thoroughly read and understand this manual prior
tooperation.

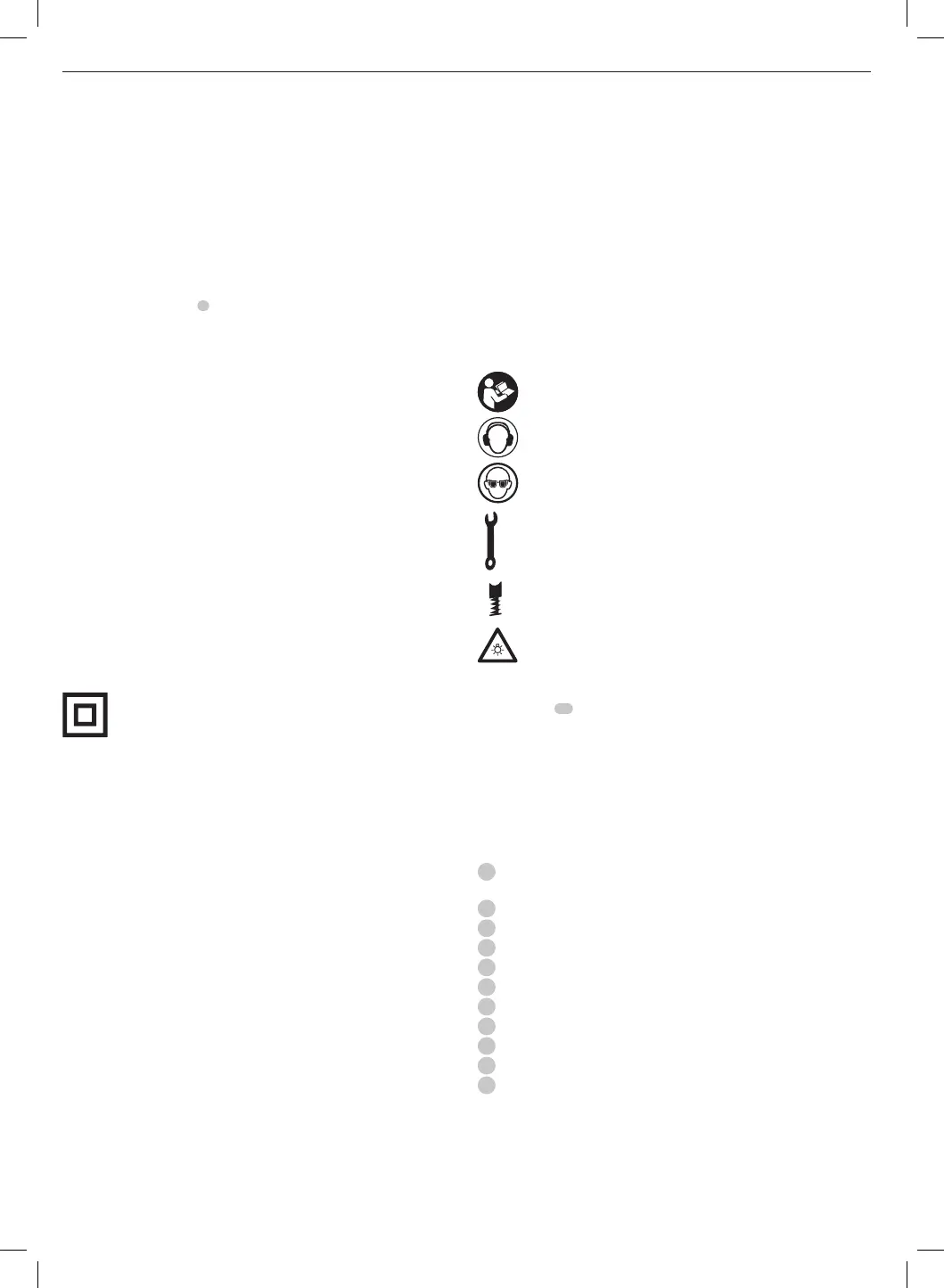

Markings on Tool
The following pictograms are shown on the tool:
Read instruction manual beforeuse.
Wear earprotection.
Wear eyeprotection.
Red service indicatorLED. For detailed description see under
Service Indicator LED's.
Yellow service indicatorLED. For detailed description see under
Service Indicator LED's.
Visibleradiation. Do not stare intolight.
Date Code Position (Fig. A)
The date code
14
, which also includes the year of manufacture, is printed
into thehousing.
Example:
2018 XX XX
Year of Manufacture
Description (Fig. A)

WARNING: Never modify the power tool or any part ofit. Damage or
personal injury couldresult.
1
Trigger switch (D25501, D25601, D25604)
On/off rocker switch (D25831)
2
Lock-on slider (D25604)
3
Side handle
4
Main handle
5
Active vibration control (D25601, D25604, D25831)
6
Mode selector switch
7
Electronic speed and impact control dial (D25601, D25604, D25831)
8
Side handle knob (D25831)
9
Side handle clamp (D25501, D25601, D25604)
10
Tool holder
11
Locking sleeve
Intended Use
The D25501, D25601, D25604 rotary hammers have been designed for
professional rotary drilling and chippingapplications.
The D25831 chipping hammers have been designed for professional
chipping, chiselling and demolitionapplications.
