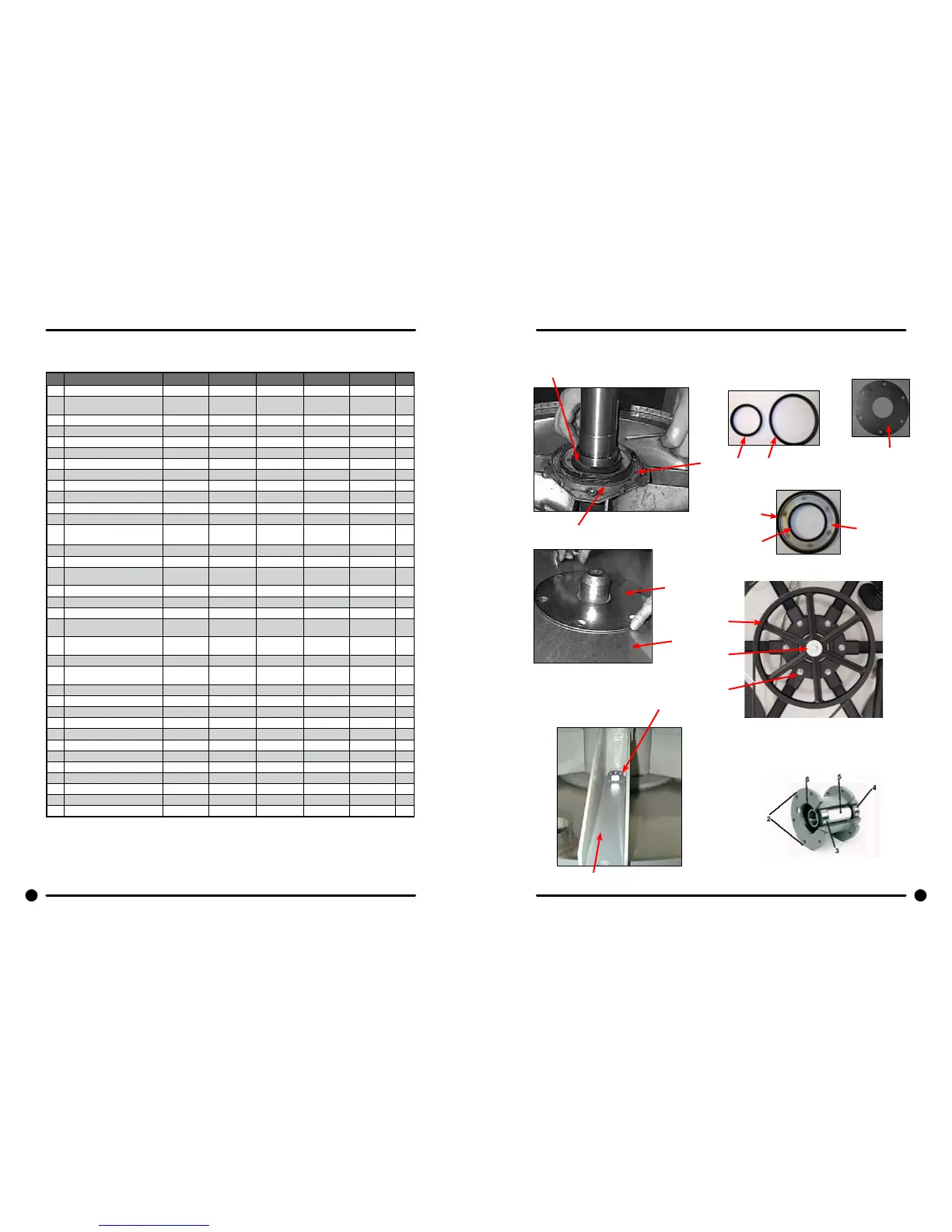

Dexter Laundry T300 User Manual

Cylinder, Seals & Bearings Part # by Model
Key Description T300 T350 T400 T450 T600 QTY
* Bearing Kit (Includes 2-10) 9732-219-001 9732-219-002 9732-219-002 9732-219-004 9732-219-004
* Housing, Bearing- Assembly
(items #2-#6)
9803-182- 001 9803-179-003 9803-179-0 02 9803-186-001 9803-186-001 1
2 Housing, Bearing 9241-174 -002 9241-169-0 0 2 9241-16 9 -002 9241-180-002 9241-180-002 1
3 Bearing, Front (LARGE) 9036-159-001 9036-159-009 9036-159-002 9036-159-005 9036-159-005 1
4 Bearing, Rear (SMALL) 9036-159-003 9036-159-008 9036-159-001 9036-159-004 9036-159-004 1
5 Spacer, Bearing 9538-161- 0 01 9538-158-001 9538-158-001 95 3 8 -167- 0 01 9538-167-001 1
6 Ring, Bearing Retainer 9487-238-002 9487-238- 0 01 9487-238-001 94 87-238-003 9 487-238-003 1
7 Tub Back Mating Ring 94 87-261- 001 9 4 87-261- 002 9487-261-002 9487-261-003 9 4 87-261- 0 03 1
8 Seal, Primary 9532-140-010 9532-140-009 9532-140-009 9532-140-009 9532-140-009 1
9 Seal, Secondary 9532-140-005 9532-140-003 9532-140-003 9532-140-006 9532-140-006 1
10 Ring, Seal Mounting 9950-047-001 9950-042-001 9950-042-001 9950-048-001 9950-048-001 1
11 Back Assy, Tub 2 piece 9962-012-001 9732-016-001 9962-013-002 9962-013-002 9962-013-002 1
12 Bolt, Tub End of Bearing Housing
(1/2” x 1 1/4”)
9545-017-009 9545-017-009 9545-017-009 6
12 Nut 1/2’ 8640-417-005 8640-417-005 8640-417-005 6
12 Lockwasher 1/2” (ext. tooth) 8641-581- 034 8641-581- 034 8641-5 82-016 6
12 Bolt 5/8-11x1 1/2” Tub end of
bearing housing
9545-060-001 9545-060-001 6
12 Washer-Flat, 5/8” 8641-5 81-040 86 41-581- 040 6
12 Lockwasher 5/8” 8641-5 82-018 86 41-582- 018 6
12 Nut 5/8” 8640-425-001 8640-425-001 6
13 Support Arm Assy, Bearing
Housing
9991-049-002 9991-057-002 99 91-061- 002 9991-056-002 9991-056-002 6
14 Bolt Pulley End of Bearing Hous-
ing (3/8” x 1 1/2”)
9545-029-003 9545-029-003 9545-029-003 6
14 Nut, Flange Locking 3/8” 9640-415-004 8640-415-004 8640-415-004 6
14 Bolt Pulley end of bearing hous-
ing (7/16-14x2” )
9545-059-002 9545-059-002 6
14 Nut, Flange Locking 7/16” 8640-416-005 8640-416-005 6
15 Pulley, Driven 9908-041-002 9453-168-005 9453-168-004 9 453-168- 0 06 9453-16 8-0 03 1
* Ring, Tolerance 9487-234-002 9487-234-001 9 487-234 - 0 01 9487-234-003 9487-234-003 1
16 Washer 1/2” 8641-581-026 8641-581-026 86 41-581- 026 1
16 Washer 5/8” 8641-5 81-032 8641-581- 032 1
17 Bolt 1/2-13 x 1 1/4” 9545-017-009 9545-017-009 9545-017-009 1
17 Bolt 5/8-11x11/2” 9545-060-001 9545-060-001 1
18 Lockwasher 1/2” Ext. tooth 86 41-582- 016 86 41-582- 016 8641-582-016 1
18 Lockwasher 5/8 Ext. tooth 8641-5 82-018 86 41-582- 018 1
* Cylinder Assy 9848-111-001 98 4 8-121- 001 9848-109-001 9 8 48-123-0 01 98 48-113- 0 01 1
* Tub and Cylinder Assy. 9869-028-001 9869-029-001 9869-030-001 9869-031-001 9869-032-001 1
* Tub A ssemb l y 9930-159-001 9930-160-001 9930-161-001 9930-162-001 9930-163-001 1
13
12
11
7
9
10
16, 17, 18
15
14
8
8
7
10
8
9
112 113
Part # 8533-080-001 12/15 Part # 8533-080-001 12/15
112 113
9
13
15
11
