Dexter Laundry T300 User Manual

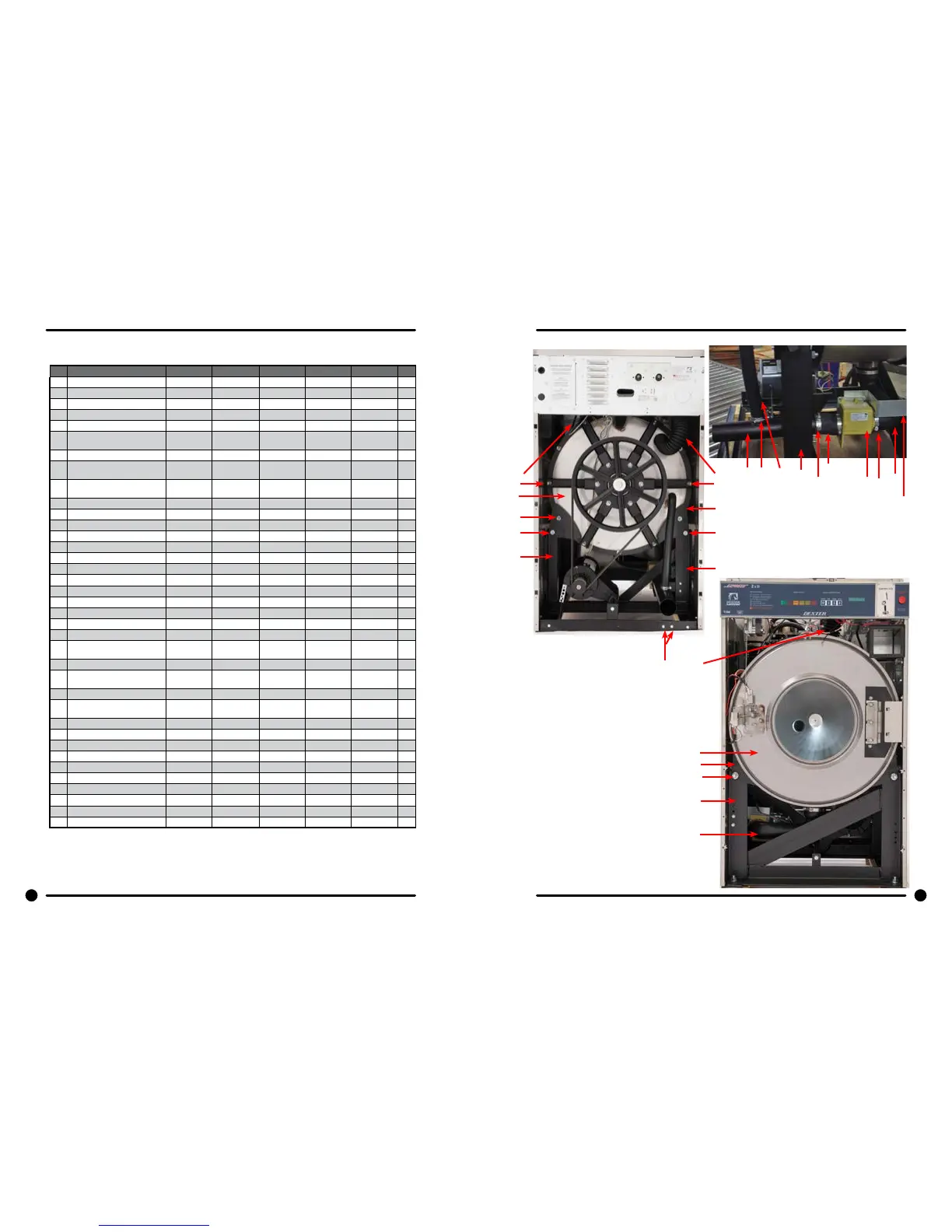

Chassis and Drain Part # by Model
Key Description T300 T350 T400 T450 T600 QTY
1 Base Assy,Frame 9945-093-002 99 4 5 -119 -002 9945-087-002 99 4 5 -116 -002 9945-097-002 1
2 Outer Tub Assy 9930-159-001 9930-160-001 9930-161-001 9930-162-001 9930-163-001 1
3 Tub & Cylinder Assy 9869-028-001 9869-029-002 9869-030-001 9869-031-001 9869-0132001 1
4 Ring Assy, Tub Mtg-Front 9950-045-002 9950-057-002 9950-051-004 9950-051-004 9950-051-004 1
5 Bolt, 1/2-13x1 1/4 (Ring to Base) 9545-017-009 9545-017-009 4
5 Nut, Wizlock, 1/2-13 (Ring to
Base)
8640-417-005 8640-417-005 4
5 Bolt, 5/8-11x1 1/2 (Ring to Base) 9545-060-001 9545-060-001 9545-060-001 4
5 Nut, Wizlock, 5/8-11 (Ring to
Base)
8640-425-001 8640-425-001 8640-425-001 4
* Ring Assembly, Tub Mounting,
Rear
9487-247- 002 9950-058-002 9950-056-002 9950-049-002 9950-049-002 1
6 Back Ass’y, Tub 9962-012-001 9962-016-001 9962-014-001 9962-013-002 9962-013-002 1
7 Ring Assy.Clamp Tub Mtg.- Rear 9950-046-002 9950-046-002 9950-056-002 9950-056-002 9950-056-002 1
8 Bolt, 3/8-16x1 1/2 9545-029-003 9545-029-003 12
8 Nut, Wizlock, 3/8-16 8640-415-004 8640-415-004 12
8 Bolt, 7/16-14 x 2 9545-059-002 9545-059-002 9545-059-002 12
8 Nut, Wizlock, 7/16-14 8640-416-005 8640-416-005 8640-416-005 12
8 Lockwasher 8641-582-018 8 6 41-582- 018 4
8 Nut, Hex 5/8-11 8640-425-001 8640-425-001 8640-425-001 4
* Shim, Support Assembly (thin) 9552-038-003 9552-038-003 9552-038-003 9552-038-001 9552-038-001 AR
9 Hose, Tub to Drain Valve 9242-468-001 9242-468-001 9242-456-001 9242-456-001 9242-456-001 1
10 Clamp, Hose (Tub to Drain Valve) 8 65 4-117- 014 8 65 4 -117-014 8654 -117-014 8654-117-014 8 65 4 -117- 014 2
11 Valve, Drain 9379-199-001 9379-199-001 9379-200-001 9379-200-001 9379-200-001 1
12 Hose, Drain Valve to Tube 9242- 451- 0 02 9242-451- 0 02 9242-457-001 9242- 457-0 01 9242-457-001 1
13 Clamp, Hose (Drain Valve to
Tube)
8654-117-014 8654-117- 014 8 65 4 -117- 014 8654 -117-014 8 65 4-117- 014 2
14 Bracket, Drain Valve 9029-005-001 9029-005-001 9029-056-001 1
* Screw, Valve to Bracket
12ABx1/2
9545-008-026 9545-008-026 9545-008-026 9545-008-026 9545-008-026 2
15 Tube Assy, Drain 9915-116- 0 04 9915-125-002 9915 -119 -002 9915 -119 - 002 9 915-118- 0 02 1
16 Screw Tube (Bracket to Base
1/4Bx3/4
9545-030-002 9545-030-002 9545-030-002 9545-030-002 9545-030-002 2
17 Hose, Overow to drain 9242-449-002 9242-449-002 9242-449-002 9242-449-002 9242-449-002 1
18 Clamp, Overow Hose 8 6 5 4 -117- 015 8 65 4 -117- 015 8654 -117-015 8654-117- 015 865 4 -117-015 1
19 Fill Hose, Vacuum Brkr. to Tub 9242- 458-001 9242-458-001 9242-458-002 9242-458-002 9242-458-002 1
* Dispenser Soap 9122-005-004 9122-005-004 9122-005-004 9122-005-004 9122-005-004 1
* Gasket, Dispenser 9206-416-001 9206-416-001 9206-416-001 9206-416-001 9206-416-001 1
* Nut Spring SS 8640-399-007 8640-399-007 8640-399-007 8640-399-007 8640-399-007 4
20 Hose, Dispenser to Tub 9242-450-002 9242-450-002 9242-450-002 9242-450-002 9242-450-001 1
* Clamp, Dispenser Hose 865 4 -117-0 0 8 865 4 -117-0 08 8654-117- 008 8654-117- 008 8 6 5 4-117- 0 08 2
21 Hose, Pressure Switch 9242-175-000 9242-175-000 9242-175- 0 07 9242-175-0 07 9242-17 5 - 001 1
* Clamp, Pressure Switch Hose 8654 -117-015 8654 -117-015 8 65 4-117- 015 8 6 5 4-117- 015 8654 -117-015 1
1
2, 3
5
4
13
12
11
7
21
9
10
20
19
18
17
16
15
14
8
1
6
5
5
8
8
9
1
1
124 125
Part # 8533-080-001 12/15 Part # 8533-080-001 12/15
