Key Description T300 T350 T40 0 T450 T600 QTY
1 Door Hinge Assembly (mounts to tub
front)
9955-030-001 9955-030-001 9955-030-001 9955-030-001 9955-030-001 1
* Shim, Loading Door Hinge (Thin) 9552-036-001 9552-036-001 9552-036-001 9552-036-001 9552-036-001 2
* Screw, 5/16-18x3/4 9545-014-009 9545-014-009 9545-014-009 9545-014-009 9545-014-009 3
* Lock Washer, 5/16 86 41-582- 0 0 9 8641-5 82-009 8641-5 82-009 86 41-582- 0 0 9 8641-582-009 3
2 Leaf Assembly-Hinge, Top 9845-008-001 9845-008-001 9845-008-001 9845-008-001 9845-008-001 1
3 Leaf Assembly-Hinge, Bottom 9845-005-002 9845-005-002 9845-005-002 9845-005-002 9845-005-002 1
4 Screw, 5/16x5/8 9545-056-002 9545-056-002 9545-056-002 9545-056-002 9545-056-002 3
* Red Wire (Door Close Switch) 8220-063-025 8220-063-025 8220-063-025 8220-063-025 8220-063-025 1
* Black Wire (Door Close Switch) 8220-063-026 8220-063-026 8220-063-026 8220-063-026 8220-063-026 1
5 Switch, Door Hinge Close (Plunger) 9539-492-001 9539- 492-001 9539-492-001 9539-492-001 9539-492-001 1
6 Door Ring 9487-264-002 9487-264-002 94 87-265-002 9 487-265-002 9487-265-002 1
7 Gasket, Door Glass 9206 - 411-002 920 6 -411-0 02 9206-419-001 9206-419-001 9206-419-001 1
8 Window, Cloths 9635-018-001 9635-018-001 9635-016-001 9635-016-001 9635-016-001 1
9 Trim Edge Protector 9578-092-004 9578-092-004 9578-092-005 9578-092-005 9578-092-005 1
* Bumper-Loading Door 9051-055-001 9051-055-001 9051-055-001 9051-055-001 9051-055-001 1
* Nut, 1/4, 20UNC, 2B 8640-414-006 8640-414-006 8640-414-006 8640-414-006 8640-414-006 1

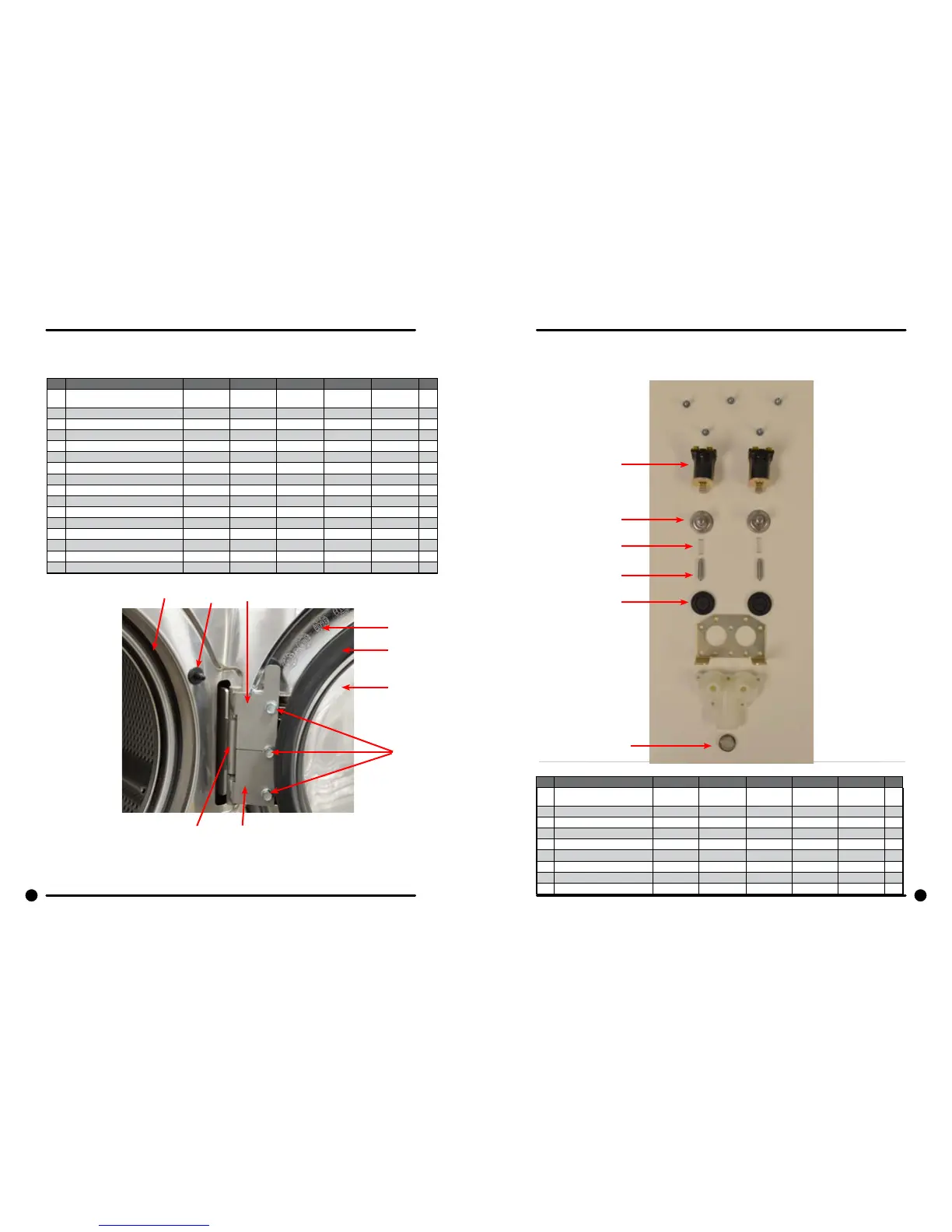

Loading Door Hinge 180 Degree Opening
Water Inlet Valve Breakdown Part # by Model
Key Description T300 T350 T400 T450 T600 QTY
* Valve, Water Inlet (includes 1
thru 6)
9379-183-012 9379-183-012 9379-183-012 9379-183-012 9379-183-012 2
1 Screen, Inlet end of valve 9555-056-001 9555-056-001 9555-056-001 9555-056-001 9555-056-001 2
2 Coil Assy., 120 V Invensys 9089-017-001 9089-017-001 9089-017-001 9089-017-001 9089-017-001 2
3 Diaphragm Invensys (Viton) 9118-049-002 9118-049-002 9118-049-002 9118-049-002 9118-049-002 2
3 Diaphragm Invensys (EPDM) 9118-049-001 9118-049-001 9118-049-001 9118-049-001 9118-049-001 2
3 Diaphragm Invensys (EPDM NSF) 9118-049-003 9118-049-003 9118-049-003 9118-049-003 9118-049-003 2
4 Guide, Solenoid Invensys 9211-021-0 02 9211-021-0 02 9211- 021-002 9211- 021-002 9211-021-002 2
5 Armature Invensys 9015-008-001 9015-008-001 9015-008-001 9015-008-001 9015-008-001 2
6 Spring, Armature Invensys 9534-298-001 9534-298-001 9534-298-001 9534-298-001 9534-298-001 2
120 121
Part # 8533-080-001 12/15 Part # 8533-080-001 12/15
120 121
1
9
2
6
5
4
3
8
7
1
2
6
5
4
3
