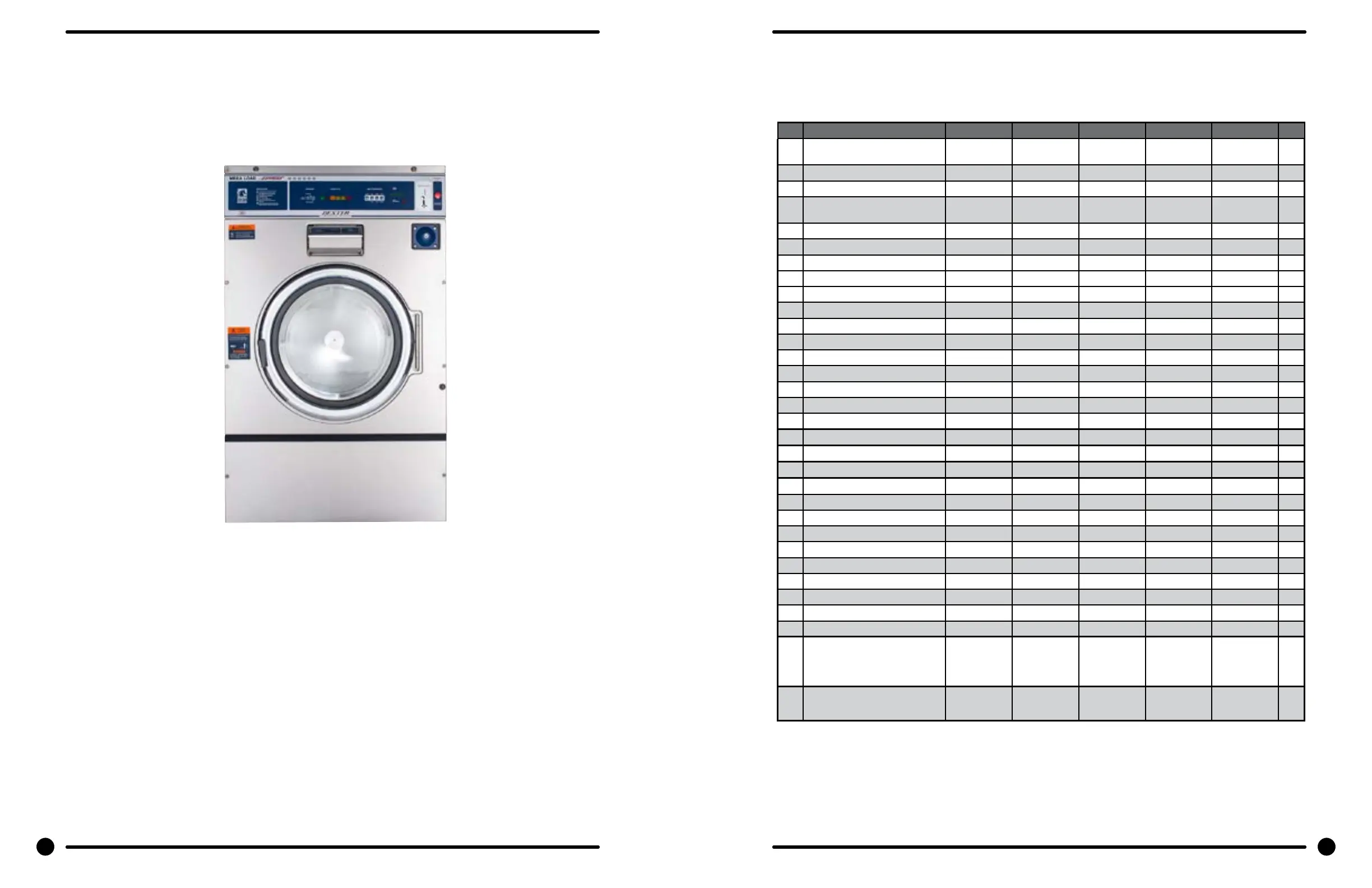

Wiring Harness Part # by Model
Key Description T750 T-900 T950 T-1200 T1450 QTY
* Wiring Harness (Add Bleach Lite
assy included)
9794-001-001 9794-001-001 9794-001-001 9794-001-001 9794-001-001 1
* Wiring Harness, Door Lock 9627-791- 005 9627-791- 004 9627-791-00 4 9627-791-005 9627-791- 005 1
* Wiring Harness,CoinDrop Mech 9627-792-001 9627-792-0 01 9627-895-001 9627-792- 001 9627-792- 001 1
* Wiring Harness,
Drain,Thermo,DoorSol
9627-796-002 9627-796-002 9627-796-002 9627-796-002 9627-796-002 1
* Data Cable 9806-015-001 9806-015-001 9806-015-001 9806-015-003 9806-015-003 1
* Wiring Harness P20/P21 9627-793- 001 9627-793-001 9627-793- 001 9627-793-001 9627-793-0 01 1
* Wiring Harness P8/P16 9627-794- 001 9627-79 4-001 9627-794- 001 9627-794 -001 9627-79 4-001 1
* Wiring Harness WaterValve/P19 9627-795-004 9627-795-004 9627-795-004 9627-795-004 9627-795-004 1
* Wiring Harness LED PCB 9627-797-001 9627-797-001 9627-797-001 9627-797-001 9627-797-001 1
* Wiring Harness P5/pressure 9627-803-001 9627-803-001 9627-803-001 9627-803-001 9627-899-001 1
* Wiring Assembly Yel. 32” 8220-064-023 8220-064-023 2
* Wiring Assembly Yel. 64” 8220-064-040 8220-064-040 2
* Wiring Assembly Red 23” #8 8220-063-028 1
* Wiring Assembly Red 41” 8220-062-032 8220-062-032 2
* Wiring Assembly Vio. 24” 8220-118-001 8220-118-001 2
* Wiring Assembly Wht/Brn 8” 8220-108-007 8220-108-007 1
* Wiring Assembly Jumper Yel 8220-123-001 8220-123-001 8220-123-001 8220-128-001 8220-128-001 1
* Wire Red Yellow 8” 8220-108-008 8220-108-008 1
* Wire Yellow Jumper (water valve) 8220-119-002 8220-119-002 1
* 80lb Washer Dispenser Label 8502-687-001 8502-687-001 1
* Wiring Assembly Red 28” #24 8220-062-025 8220-062-025 8220-062-025 2
* Wiring Assembly Blk. 17” 8220-062-028 8220-062-028 8220-062-028 8220-062-028 1
* Wiring Assembly Red 17” 8220-062-027 8220-062-027 8220-062-027 8220-062-027 1
* Wiring Assembly Jumper BLK. 8220-117-002 8220-117-002 8220-117-002 8220-117-003 8220-117-003 2
* Wiring Assembly Red 7” #36 9631-381-018 9631-381-018 9631-381-018 9631-381-018 9631-381-018 1
* Wiring Assembly Blu/Wht 8220-090-009 8220-090-009 8220-090-009 8220-090-009 8220-090-009 1
* Wiring Assembly Blk/Blu 8220-001-231 8220-001-231 8220-001-231 8220-001-231 8220-001-231 1
* Wire Assembly Green 7” 1
* Wire Assembly BLK. 23” #8 8220-063-029
* Harness Power Terminal Block 9627-747-003 9627-747-002 9627-747-002 9627-747-002 9627-747-002 1
* Wire Red Yellow 8” 8220-108-008 8220-108-008 1
* Wire Yellow Jumper (water valve) 8220-119-002 8220-119-002 1
82 83
Part # 8533-073-001 3/22 Part # 8533-073-001 3/22
82 83
Section 8:
Parts Data
WCAD Vended
Large Chassis
Cylinder, Seals,
& Bearings
Water Inlet &
Rear Channel
To Next Page
