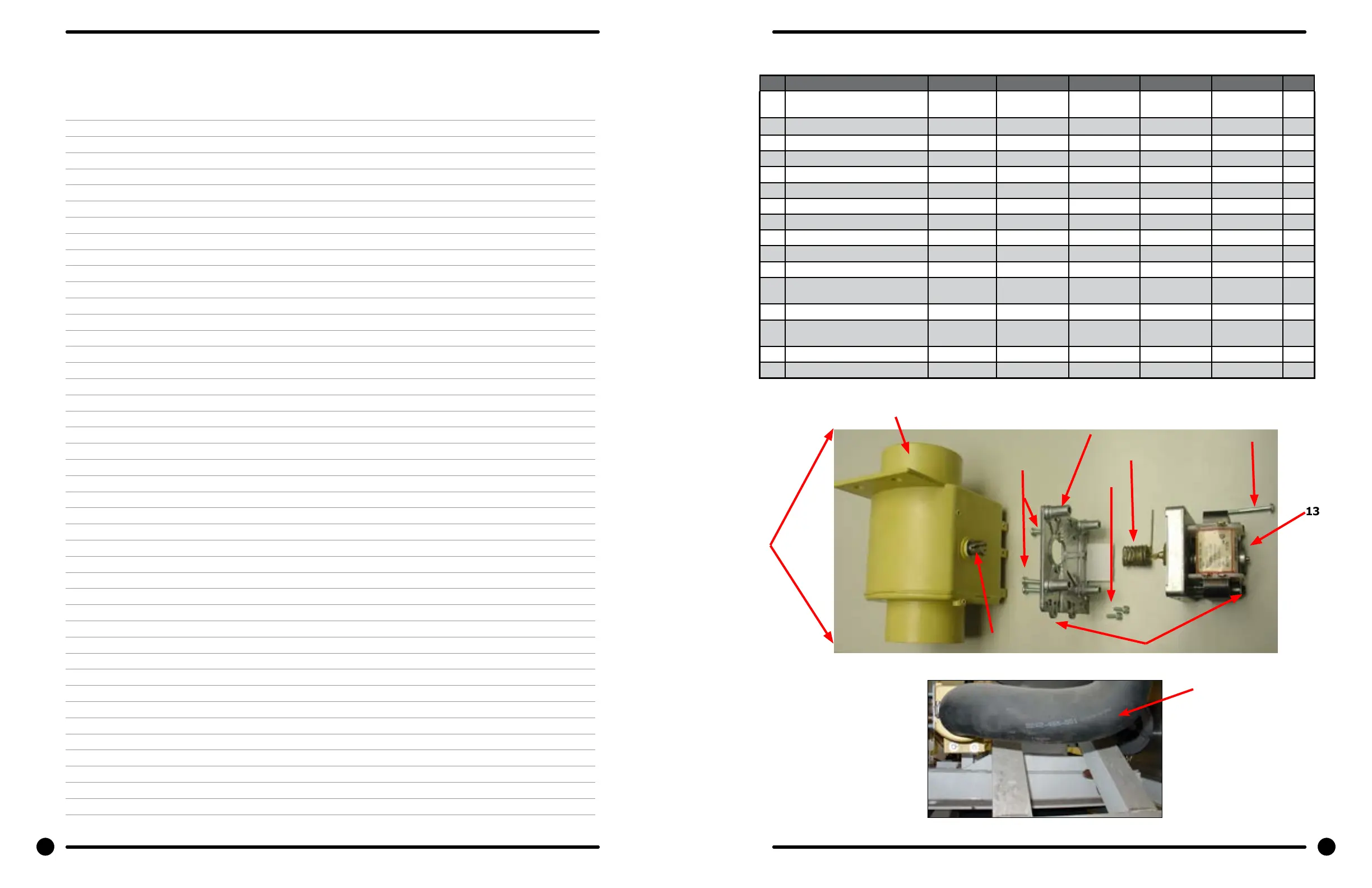

Drain Valve Group Part # by Model
Key Description T-750 T-900 T-950 T-1200 T-1450 QTY
1 Valve, Drain (includes #2 thru
#11)
9379-202-001 9379-202-001 9379-202-001 9379-202-001 9379-202-001 1
2 Body, Valve (w/ball) 9064-070-001 9064-070-001 9064-070-001 9064-070-001 9064-070-001 1
3 Motor & Gear Train (complete) 9914-137-011 9914-137-011 9914-137-011 9914-137-011 9914-137-011 1
4 Plate, Motor Mtg 9452-538-001 9452-538-001 9452-538-001 9452-538-001 9452-538-001 1
5 Screw 8639-994-001 8639-994-001 8639-994-001 8639-994-001 8639-994-001 3
6 Spring, Drive 9534-339-001 9534-339-001 9534-339-001 9534-339-001 9534-339-001 1
7 Screw 9545-054-001 9545-054-001 9545-054-001 9545-054-001 9545-054-001 2
8 Screw 9545-054-002 9545-054-002 9545-054-002 9545-054-002 9545-054-002 1
9 Seal, V Packer 9532-134-001 9532-134-001 9532-134-001 9532-134-001 9532-134-001 2
10 Washer 8641-584-001 8641-584-001 8641-584-001 8641-584-001 8641-584-001 1
11 Pin, Main Drive 9451-196-001 9451-196-001 9451-196-001 9451-196-001 9451-196-001 1
* Plate (spacers needed for re-
placement motor mtg. plate)
9538-149-001 9451-196-001 9451-196-001 9538-149- 001 9451-196-001 4
13 Stator and Coil Assembly 9089-036-004 9089-036-004 9089-036-004 9089-036-004 9089-036-004 1
* Valve Drain before Serial #
482181
9379-187-001 9379-187-001 9379-187-001 9379-187-001 9379-187-001 1
14 Hose Tub to Drain Valve 9242-459-001 9242-459-001 9242-459-001 9242-459-001 9242-459-001 1
* Replacement Seal Kit 9732-327-001 9732-327-001 9732-327-001 9732-327-001 9732-327-001 *
9, 10, 11
8
13
1
2
3
4
5
6
7
14
104 105
Part # 8533-073-001 3/22 Part # 8533-073-001 3/22
104 105
