Door Label
Top Dispenser Label T-1200
Risk of Injury Label
2
1

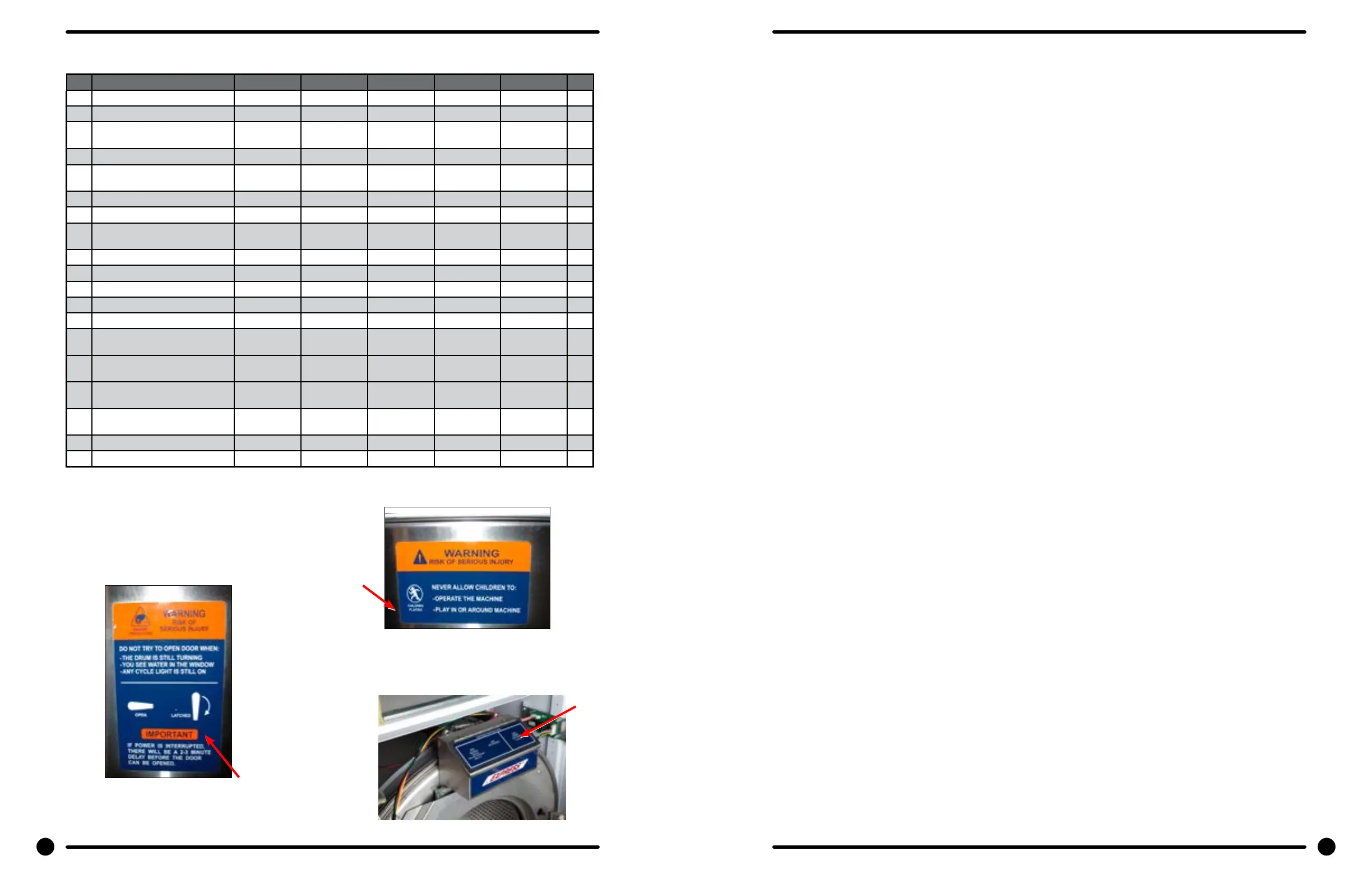

Labels and Diagrams All WCAD Models
Key Description T750 T-900 T950 T-1200 T1450 QTY
* Booklet Owners 8514-157-001 8514-099-001 8514-183-001 8514-159-001 1
* Wiring Diagram, Coin 9506-358-001 9506-127-001 9506-129-001 9506-488-001 1
* Wiring Diagram Easy Card (120
V)
1
* Wiring Diagram (Easy Card) 9506-113-001 9506-486-001 9506-115-001 1
* Transient Voltage Surge Sup-
pressor Infomational
8507-330-001 8507-330-001 8507-330-001 1
* Instructions Spin Direction 8507-275-001 8507-275-001 8507-275-001 1
* Wiring Schematic, Coin (120 V) 1
* Wiring Schematic, Easy Card (120
V)
1
* Wiring Schematic, Coin 9506-357-001 9506-126-001 9506-486-001 9506-128-001 9506-488-001 1
* Wiring Schematic, Easy Card 9506-112- 001 9506-114- 001 1
* Label High Voltage Warning 8502-614-004 8502-614-004 8502-614-004 8502-614-004 8502-614-004 1
* Label Fusing & Installation 8502-619-003 8502-619-003 8502-619-003 8502-619-003 8502-619-008 1
* Label Quality 8511-001-002 8511-001-002 8511-001-002 8511-001-002 8511-001-002 1
1 Label Warning Risk of Injury
(Blue)
8502-722-002 8502-722-002 8502-722-002 8502-722-002 8502-722-002 1
1 Label Warning Risk of Injury
(Black)
8502-741-001 8502-741-001 8502-741-001 8502-741-001 8502-741- 001
2 Label Warning Door Opening
(Blue)
8502-723- 001 8502-723-0 01 8502-723- 001 8502-723-001 8502-723-001 1
2 Label Warning Door Opening
(Black)
8502-742-001 8502-742-001 8502-742-001 8502-742-001 8502-742-001
3 Label Dispenser (Blue) 8502-687-001 8502-687-001 8502-687-001 8502-687-001 1
3 Label Dispenser (Black) 8502-745-0 01 8502-745- 001 8502-745-001 8502-745-0 01 1
114 115
Part # 8533-073-001 3/22 Part # 8533-073-001 3/22
Section 9:
Coin Handling
Parts:
Wiring Diagrams
& Schematics &
maintenance Procedures
3
