Dexter Laundry WCAD Series Parts And Service Manual

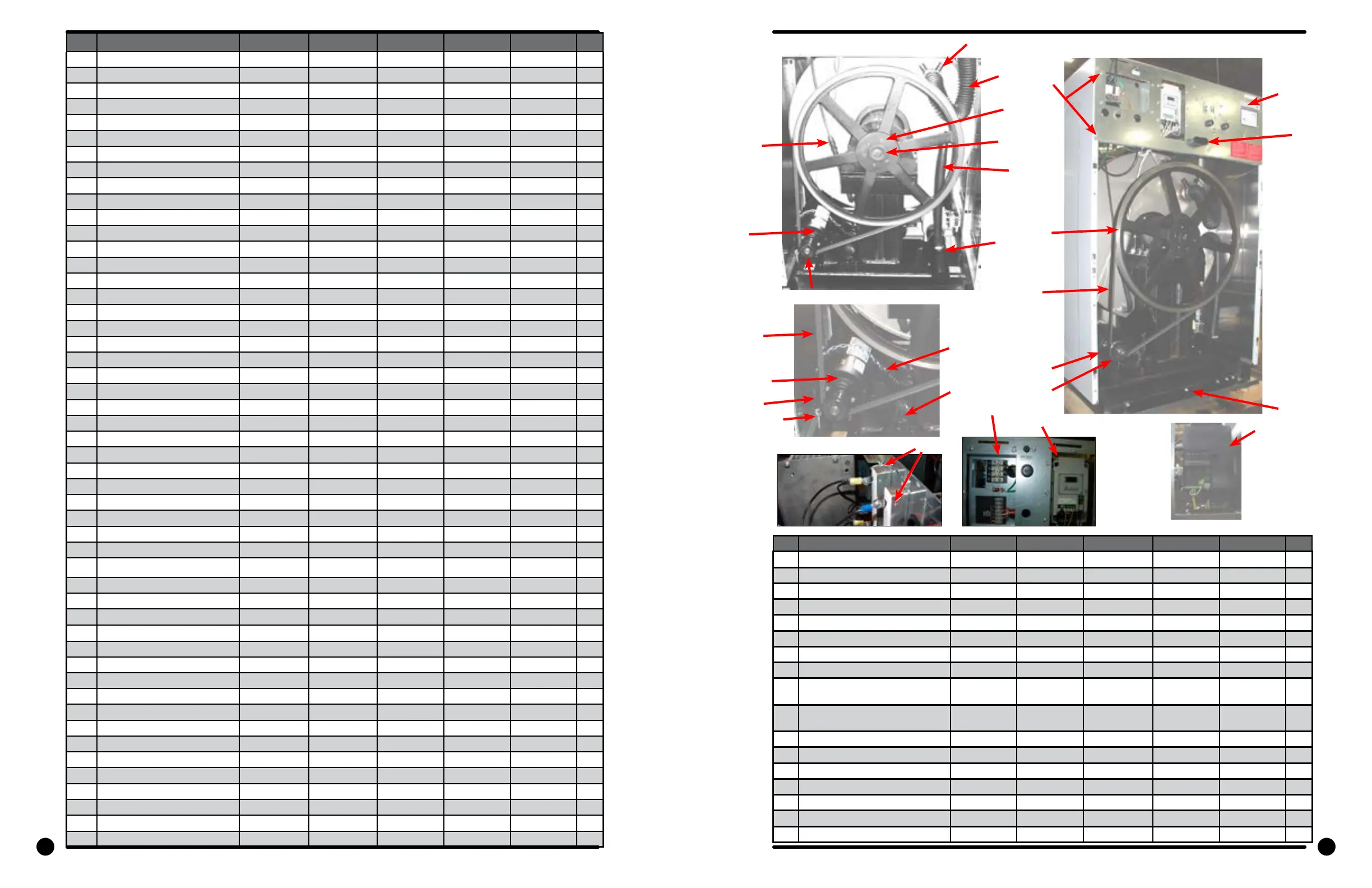

Rear View Access Part # by Model
Key Description T-750 T-90 0 T-950 T-1200 T-1450 QTY
1 Drive Motor, 3 Phase 9376-298-001 9376-308-001 9376-298-001 9376-298-001 9376-326-001 1
1 Drive Motor After serial #553489 9376-329-001 9376-329-001 9376-329-001 1
2 Rod, Motor Mtg 9497-222-004 9497-222-004 9497-222-004 9497-222-004 9497-222-004 1
3 Collar, Shaft (w/set screws) (old) 9076-052-002 9076-052-002 9076-052-002 9076-052-002 2
* Motor Bushing (plastic) 9053-074-001 9053-074-001 9053-074-001 9053-074-001 9053-074-001 1
4 New motor bushing support 9053-082-001 9053-082-001 9053-082-001 9053-082-001 9053-082-001 2
5 Clamp for motor bushing 8654-117-019 8654-117- 019 8654-117- 019 8654-117-019 8654-117-019 2
6 Pulley, Motor 9453-179-001 9453-175-002 9453-175-002 9453-175- 002 9453-175- 002 1
* Split TaperBushing (motor pulley) 9053-077-001 9053-077-001 9053-077-001 2
* Screw taper bushing 1/4-20x1 9545-018-024 9545-018-024 9545-018-024 3
7 Bolt, Eye (1/4”-20x1/2”) 9545-055-001 9545-055-001 9545-055-001 9545-055-001 9545-055-001 1
* Nut, 1/4 Elastic Stop 8640-414-003 8640-414-003 8640-414-003 8640-414-003 8640-414-003 1
* Link (open end) 9341-046-001 9341-046-001 9341-046-001 9341-046-001 9341-046-001 1
8 Chain (Spring Tension) 9099-012-003 9099-012-003 9099-012-003 9099-012-004 9099-012-004 1
9 Spring, Belt Tension 9534-151-000 9534-151-000 9534-151-000 9534-151-000 9534-151-000 1
10 Pulley, Driven 9453-173-002 9453-176-005 9453-176-005 9453-176-005 9453-176-005 1
* Tollerence Ring 9487-234-004 1
* Screw, 5/8”-11 x 2” 9545-060-004 1
* Washer-Flat, 5/8” 8641-582-032 1
* Washer-Flat, 5/8” 8641-582-018 1
11 Bolt, 3/8”-16 x 2” 9545-029-011 9545-029-011 9545-029-011 9545-029-011 3
12 Washer, 3/8” 8641-582-003 8641-582-003 8641-582-003 8641-582-003 3
* Bushing Taperlock (Pulley) 9053-078-002 9053-078-002 9053-078-002 9053-078-002 1
13 Washer-Flat .675x2-1/2x1/4 8641-581-043 8641-581-043 8641-581-043 8641-581-043 1
14 Lockwasher-Exttooth, 5/8 8641-582-018 8641-582-018 8641-582-018 8641-582-018 1
15 Bolt, 5/8-11x1 1/2 9545-060-001 9545-060-001 9545-060-001 9545-060-001 1
13 Washer-Flat, .781x2-1/2x1/4 8641-581-044 1
14 Lockwasher-Exttooth, 3/4 8641-582-020 1
15 Bolt, 3/4-10-1 1/2 9545-057-004 1
16 Drive Belt 9040-079-002 9040-079-002 9040-079-003 9040-079-006 1
16 Drive Belt 9040-076-008 2
17 Hose, Overow to drain 9242-449-003 9242-449-003 9242-449-003 9242-449-003 9242-449-005 1
18 Clamp, Hose overow to drain 8654-117-018 8654-117- 018 8654-117-018 8654 -117-018 8654-117-018 2
19 Hose, Overow Vent Top 9242-463-004 9242-463-004 9242-463-004 9242-463-004 9242-463-004
* Clamp, Hose Vent 8654-117- 008 8654 -117-008 8654-117-0 08 8654-117-008 8654-117-008 1
* Vaccum Breaker ALL 9610-001-001 9610-001-001 9610-001-001 9610-001-001 9610-001-001 1
* Clamp, Hose to Vacuum Breaker 8654-117-014 8654-117- 014 8654-117- 014 8654 -117-014 8654-117-014 1
20 Hose, Vacuum Breaker to tub 9242-458-003 9242-458-003 9242-458-003 9242-458-003 9242-458-003 1
* Vaccum Breaker Bracket 9029-069-001 9029-069-001 9029-069-001 9029-069-001 9029-069-001 1
21 Inlet Cap 0935-135-001 0935-135-001 2
22 Hose, Pressure Switch 9242-175-007 9242-175-007 9242-175-0 07 9242-175-0 04 9242-175-004 1
* Clamp, Overow Hose 8654 -117-015 8654 -117-015 8654-117-015 8654-117-015 8654-117-015 1
23 VFD Delta “S” drive 208-240 volt 9732-345-009 9732-345-004 9732-345-005 1
23 “S” Drive After serial #553489 9375-014-023 9375-014-025
23 VFD Delta “E” drive 208-240 volt 9375-028-002 9375-029-002
23 “E” Drive After serial #553489 9375-028-006
24 Braking resistors (160 ohm) 9483-004-003 9483-004-003 9483-004-003 2
* Bracket assembly (drive mount) 9029-157-001 9029-157- 001 9029-212-001 9029-150-001 9029-216-001 1
25 Channel, Rear, Before Serial # 9081-148-001 9081-148-001 9081-140-001 1
25 Channel, Rear, After Serial # 9081-152-001 9081-152-002 9081-153-001 1
Key Description T-750 T-90 0 T-950 T-1200 T-1450 QTY
26 Screw #10Bx1/2 9545-008-026 9545-008-026 9545-008-026 9545-008-026 9545-008-026 4
* Nut, Spring 8640-399-007 8640-399-007 8640-399-007 8640-399-007 8640-399-007 4
* Cover, Terminal Block 9074-267-001 9074-267-001 9074-267-001 9074-267-001 1
* Screw #10Bx1/2 9545-008-026 9545-008-026 9545-008-026 9545-008-026 9545-008-026 1
-* Cover, VFD, Before Serial #935659 9074-278-001 9074-278-001 9074-278-001 9074-278-001 9074-278-001 1
* Cover, VFD, After Serial #935659 9074-342-001 9074-342-001 9074-299-001 9074-299-001 1
* Screw #10Bx1/2 9545-008-026 9545-008-026 9545-008-026 9545-008-026 9545-008-026 1
27 Terminal Block, Channel Mount 9897-033-002 9897-033-002 9897-033-002 9897-033-002 1
* Panel Assy., Back Before Serial
#535659
9989-455-001 9989-455-001 9989-491-001 1
* Panel Assy., Back After Serial
#535659
9989-526-001 9989-526-001 1
* Panel Assy., Back, Upper 9454-873-001
* Panel Assy., Back, Lower 9454-872-001
* Screw Panel Mtg.#10Bx1/2” 9545-008-026 9545-008-026 9545-008-026 10
* Screw Panel Mtg.#10Bx1/2” 9545-008-026 9545-008-026 9
* Screw Panel Mtg.#10Bx1/2” 13
* Nut, Spring 8640-399-007 8640-399-007 8640-399-007 8640-399-007 8640-399-007 AR
28 Screw, To Base-1/4” x 3/4” 9545-030-002 9545-030-002 9545-030-002 9545-030-002 9545-030-002 3
90 91
Part # 8533-073-001 3/22 Part # 8533-073-001 3/22
90 91
1
24
25
8
17
23
27 28
13, 14, 15
2620
1
1
10
9
7
6
54
22
19
18
16
21
23
16
11, 12
6
