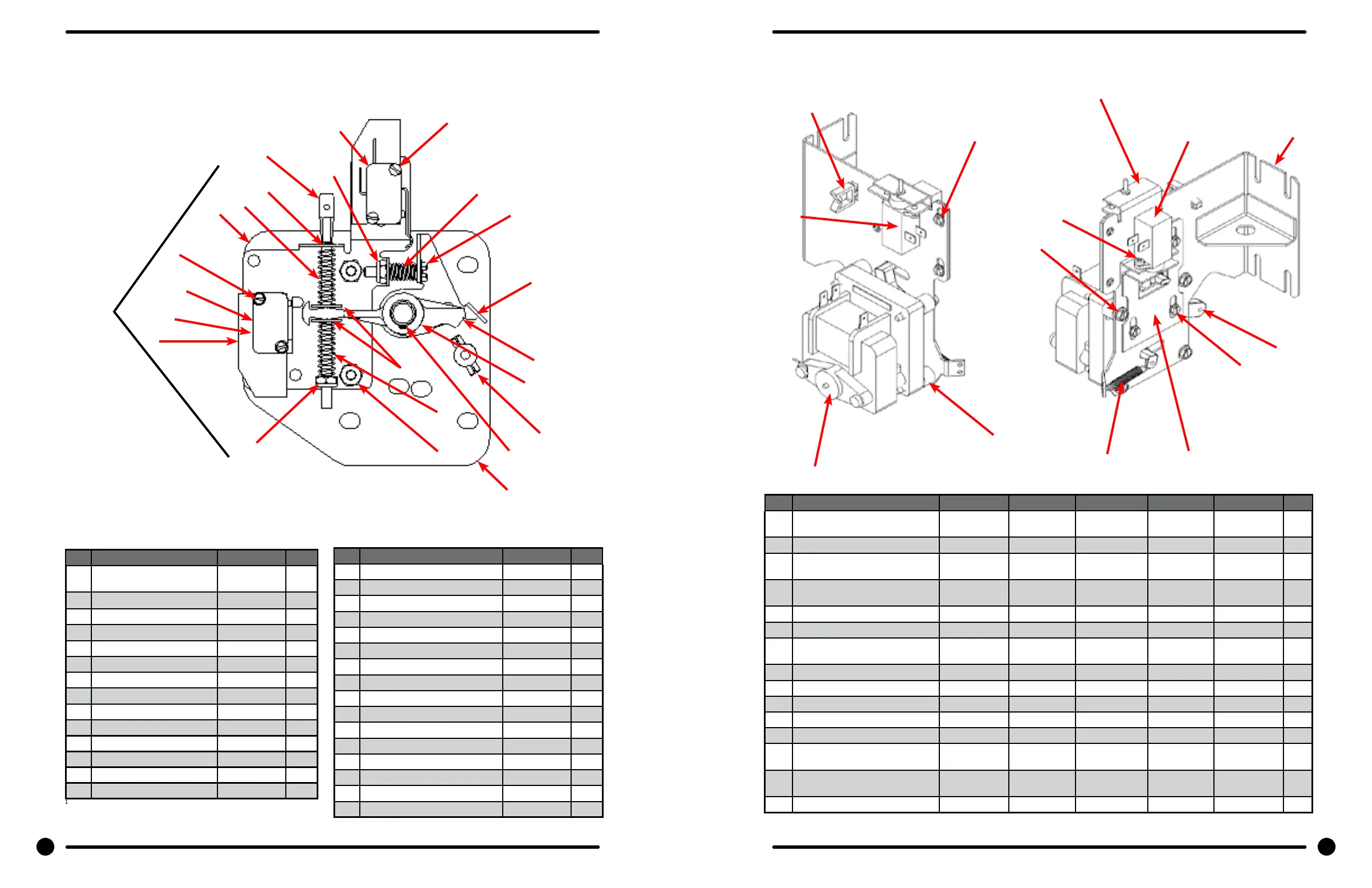

Door Latching Assembly (All Models)
Key Description All Models QTY
33 Latching Assy, Complete
(includes #1 thru #22)
9885-024-001 1
1 Plate Assy, Door Lock 9982-346-001 1
2 Washer, Flat (SS or Brass) 8641-581-030 1
3 Actuator, Latching Switch 9008-005-001 1
4 Pawl, Locking 9732-346-002 1
5 Washer, Spring 8641-569-003 1
6 Ring, Retaining 9487-200-004 1
7 Bracket Switch 9029-163-001 1
8 Nut, Hex 10-32 UNF 8640-413-002 2
9 Spring, Actuating 9534-364-002 1
10 Screw, Hx. 10-32 x 1” 9545-012-020 1
11 Nut, Elastic Stop 10-32 8640-413-004 2
12 Spring, Return 9534-364-001 2
13 Pin, Guide 9451-193-001 1
1
1
Key Description All Models QTY
14 Ring, Retaining 9487-200-005 1
15 Washer 8641-581-031 1
16 Switch, Latching Sensing 9539-461-008 1
17 Shield, Switch 9550-169-003 3
18 Screw 4-40 x 5/8” 9545-020-001 2
18 Nut, Twin 4-40 8640-401-001 1
19 Switch, Locking Sensing 9539-461-007 2
20 Actuator, Switch Locking 9008-006-003 1
21 Screw 4-40 x 1 1/8” 9545-020-003 2
21 Nut, Twin 4-40 8640-401-001 1
22 Spacer Sensor 9538-182-001 1
23 Pin, Dowel 9451-181-004 1
* Shim, Door Lock, Thin 9552-037-001 AR
* Screw, Lock mtg 1/4”-20 x 3/4” 9545-018-014 3
* Lockwasher 1/4” Ext tooth 8641-582-007 3
* Door Stud Pin, 3/16” x 3/4” 9451-181-004 1
33
21
18
9
12
15
8 6
22
5
12
11
17
19
7
14
13
11
1
4
3
10
16
20
Gear Motor Door Lock Assembly
Key Description T-750 T-900 T-950 T-1200 T-1450 QTY
* Actuator Assembly (Includes 1-10,
Rod NOT included)
9892-015-001 9892-015-001 9892-015-001 9892-015-001 9892-015-001 1
11 Screw-hxwshdsl, 10-24-1.25f, ctd 9545-046-007 9545-046-007 9545-046-007 9545-046-007 9545-046-007 4
10 Cross Recessed PAn Hd Tapping
screw
9545-031-011 9545-031-011 9545-031-011 9545-031-011 9545-031-011 4
9 Screw -Hxwshrhdslsems, 6-32 x
3/16
9545-044-003 9545-044-003 9545-044-003 9545-044-003 9545-044-003 6
8 Motor & Gear Assembly 120v 9914-137-011 9914-137-011 9914-137-011 9914-137-011 9914-137-011 1
7 Spring - Extension 9534-350-001 9534-350-001 9534-350-001 9534-350-001 9534-350-001 1
6 Thermoactuator - Door Lock
Relay 120v
9586-001-001 9586-001-001 9586-001-001 9586-001-001 9586-001-001 2
5 Arm - Door Lock 9001-063-001 9001-063-001 9001-063-001 9001-063-001 9001-063-001 1
4 Spacer, Plastic 9538-157-021 9538-157-021 9538-157- 021 9538-157-021 9538-157-021 4
3 Bracket Slide Lock 9029-204-001 9029-204-001 9029-204-001 9029-204-001 9029-204-001 1
2 Bracket Assy, Slide - Unlock 9985-189-001 9985-189-001 9985-189-001 9985-189-001 9985-189-001 1
1 Bracket Assy, Slide Lock Actuator 9985-190-001 9985-190-001 9985-190-001 9985-190-001 9985-190-001 1
* Rod, Door Lock Before Serial
#535659
9497-225-013 9497-225-013 1
* Rod, Door Lock After Serial
#535659
9497-225-015 9497-225-015 9497-225-015 9497-225-016 1
* Spacer, Gear Motor 9538-187-001 9538-187- 001 9538-187-001 9538-187-001 9538-187-001 1
1
2
3
4
8
5
6
6
7
9
9
10
11
12
94 95
Part # 8533-073-001 3/22 Part # 8533-073-001 3/22
94 95
