Dexter Laundry WCAD Series Parts And Service Manual

Key Description T-750 T-900 T-950 T-1200 T-1450 QTY
1 Door Hinge Assembly (mounts
to tub front)
9955-031-001 9955-031-001 9955-031-001 9955-031-001 9955-031-001 1
* Door Assembly Complete 9960-274-005 9960-274-005 9960-274-005 9960-274-005 9960-274-005 1
2 Door Ring 180 degree large
hnge
9487-275-001 9487-275-001 9487-275-001 9487-275-001 9487-275-001 1
3 Door Gasket 9206-431-001 9206-431-001 9206-431-001 9206-431-001 9206-431-001 1
4 Door Glass Window 9635-020-001 9635-020-001 9635-020-001 9635-020-001 9635-020-001 1
* Red Wire (Door Close Switch) 8220-063-028 8220-063-028 8220-063-028 8220-063-028 8220-063-028 1
Black Wire (Door Close Switch) 8220-063-029 8220-063-029 8220-063-029 8220-063-029 8220-063-029 1
5 Switch, Door Hinge Close
(Plunger)
9539-492-001 9539-492-001 9539-492-001 9539-492-001 9539-492-001 1
6 Top Door Hinge Leaf (No pin) 9845-006-001 9845-006-001 9845-006-001 9845-006-001 9845-006-001 1
7 Bottom Door Hinge Leaf 9845-007-001 9845-007-001 9845-007-001 9845-007-001 9845-007-001 1
8 Thrd Form Screw, Door Mtg
5/16” x 5/8”
9545-056-002 9545-056-002 9545-056-002 9545-056-002 9545-056-002 4
9 Screw, Loading Door Hinge Mtg
(5/16” x9/16” ss)
9545-014-013 9545-014-013 9545-014-013 9545-014-013 9545-014-013 3
10 Bracket Retainer support side
panel
9046-085-001 9046-085-001 9046-085-001 9046-085-001 9046-085-001 1
* Shim Large door 9552-043-001 9552-043-001 9552-043-001 9552-043-001 9552-043-001 1

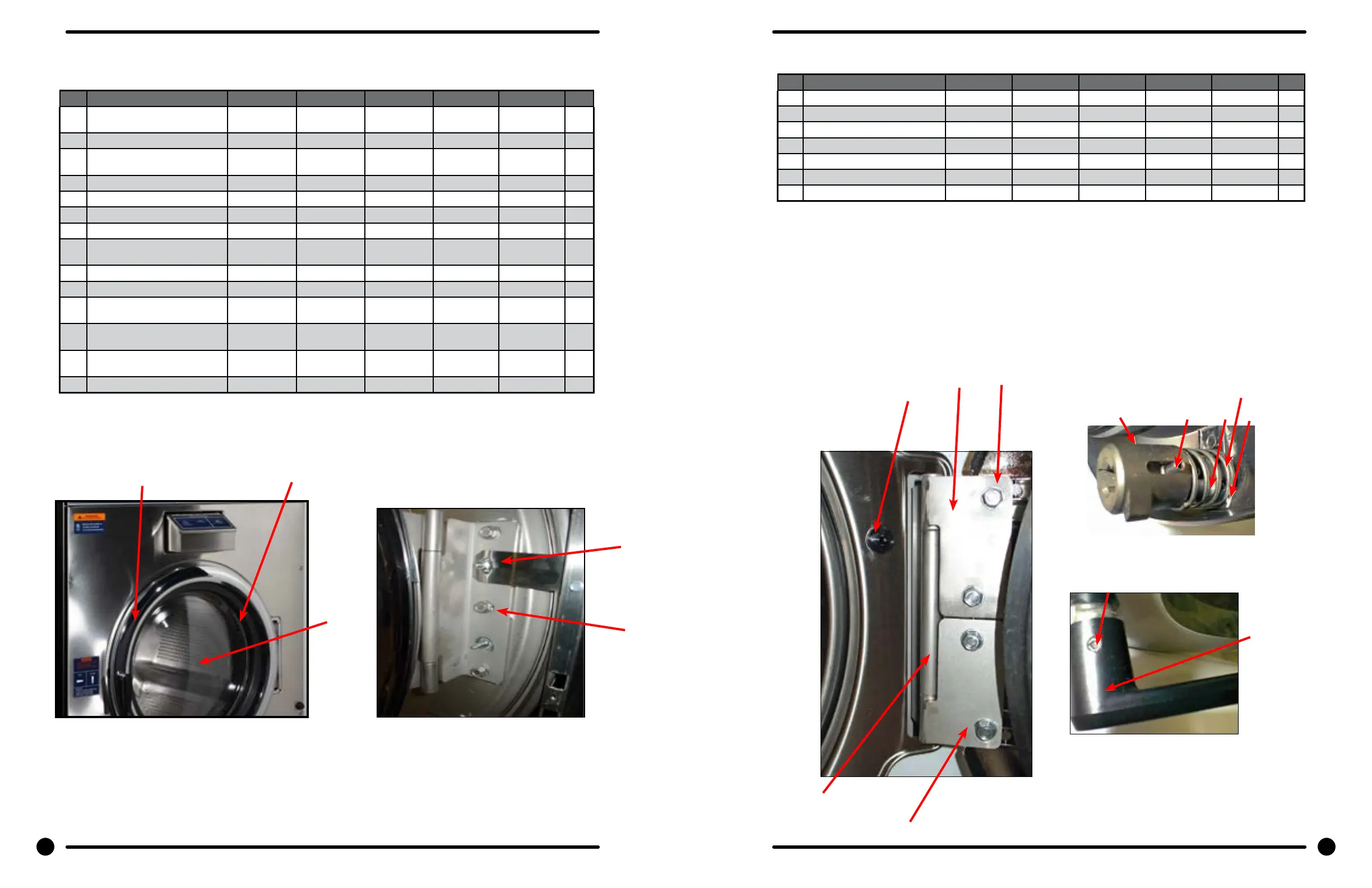

Large Door & Hinge Group
(After #514975)
2
3
4
9
10
5
1
6
7
8
Key Description T750 T-900 T950 T-1200 T1450 QTY
11 Shaft, Door Locking 9537-195-002 9537-195-002 9537-195-002 9537-195-002 9537-195-002 1
12 Cam, Locking 9095-040-002 9095-040-002 9095-040-002 9095-040-002 9095-040-002 1
13 Pin, Groove (1 1/4) 9451-181-005 9451-181-005 9451-181-005 9451-181-005 9451-181-005 1
14 Pin, Groove (3/4) 9451-181-004 9451-181-004 9451-181-004 9451-181-004 9451-181-004 1
15 Spring, Lock Cam 9534-360-002 9534-360-002 9534-360-002 9534-360-002 9534-360-002 1
16 Handle, Door 9244-080-003 9244-080-003 9244-080-003 9244-080-003 9244-080-003 1
17 Pin, Door Handle (groove) 9451-181-006 9451-181-006 9451-181-006 9451-181-006 9451-181-006 1
13
11
14
15
17
16
12
98 99
