VuLink Operation & Installation Guide 860-00198-00 REV A

Digital Ally, Inc. | Model-Specific Wiring Diagrams

4-5

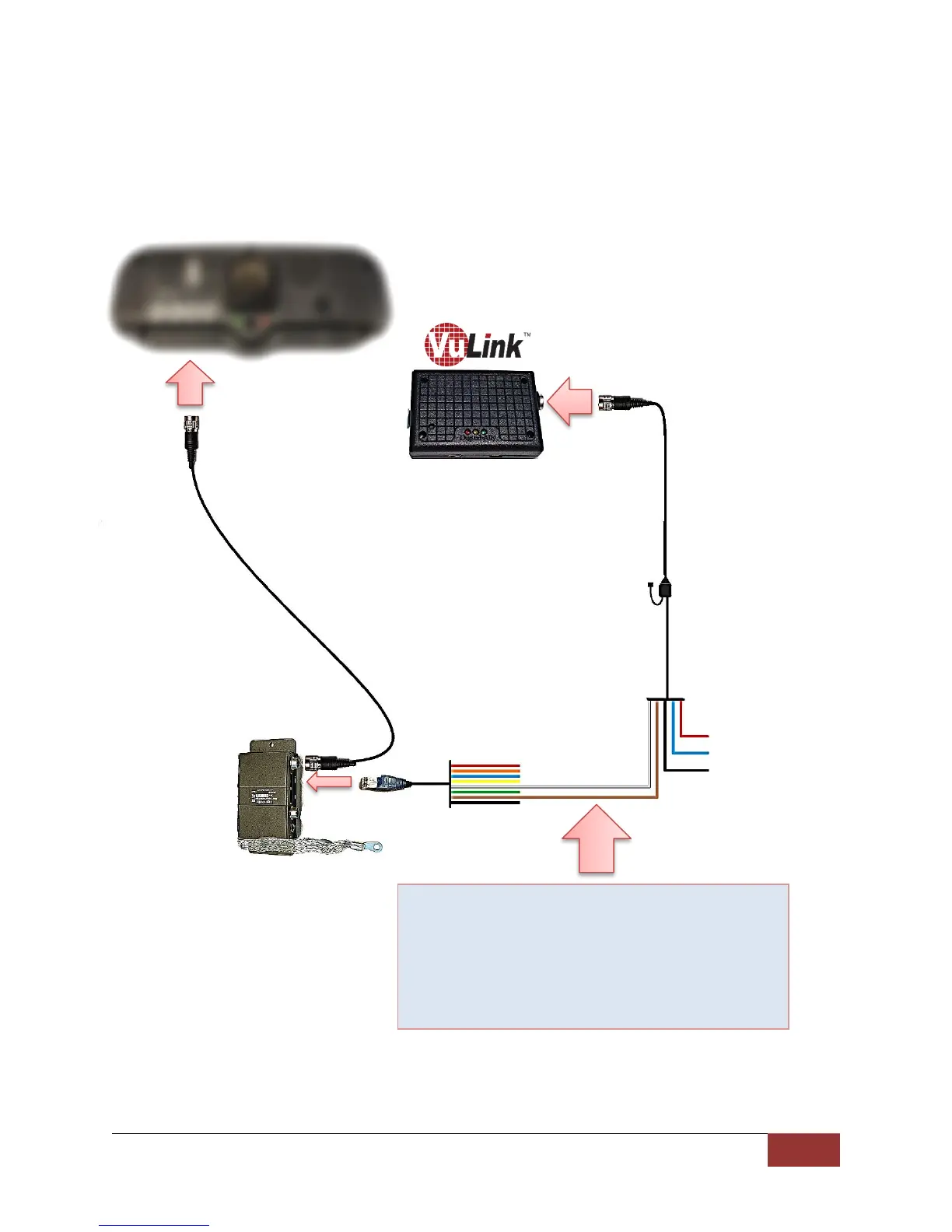

DVM-250Plus or DVM250 (with interface box)

RED = +12VDC Battery

BLUE = +12VDC Ignition

BLACK = Chassis Ground

VuLink Base Cable

008-01456-00

DVM

I/O Box

1. Connect WHITE wire from VuLink Base Cable to

WHITE wire of I/O box input sensor cable

(Sensor 5)

2. Connect BROWN wire from VuLink Base Cable

to BROWN wire of I/O box input sensor cable

(output alarm)
