VuLink Operation & Installation Guide 860-00198-00 REV A

Digital Ally, Inc. | Model-Specific Wiring Diagrams

4-6

Generic Input Source

RED = +12VDC Battery

BLUE = +12VDC Ignition

WHITE = +12VDC Auxiliary output

(enabled when VuLink is activated)

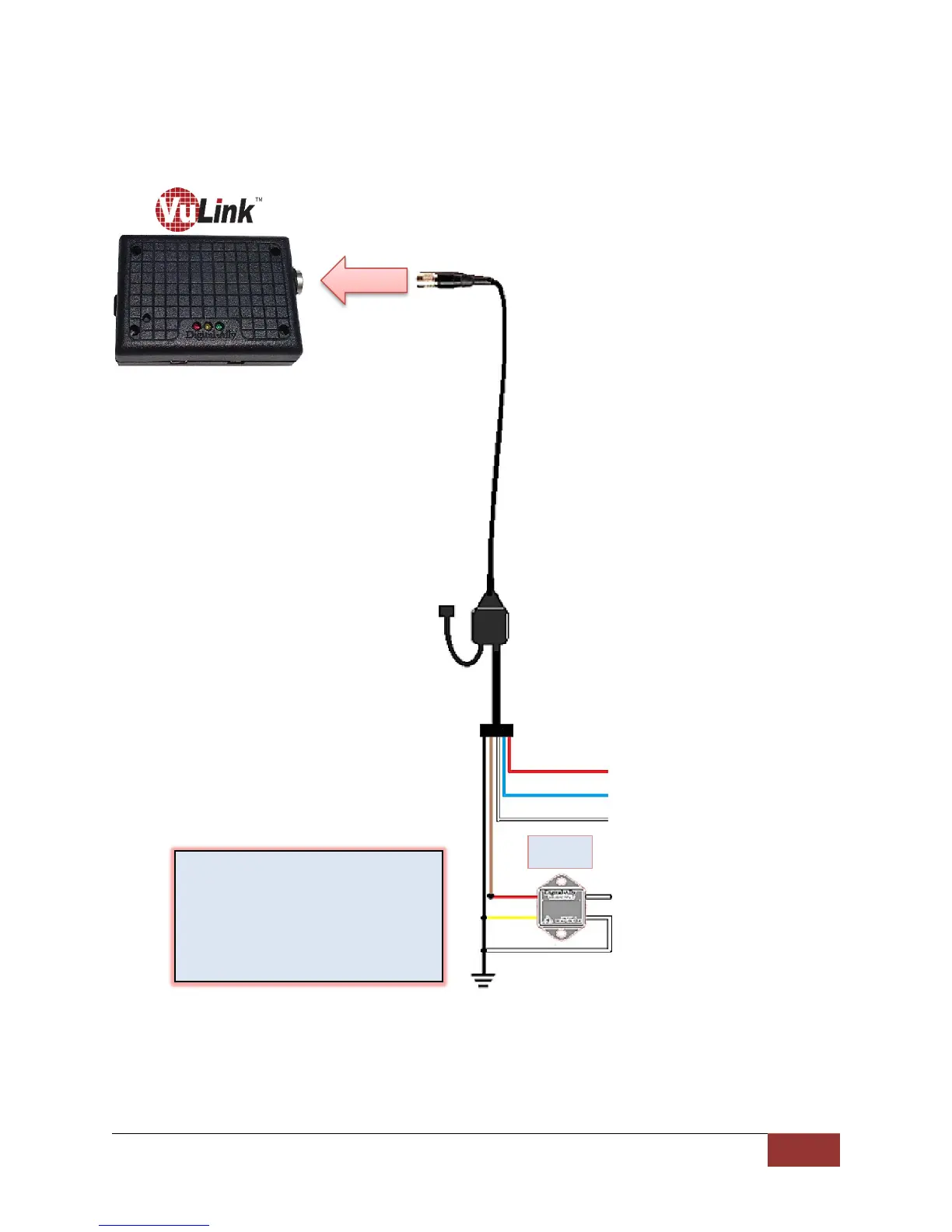

VuLink Relay Wiring

WHITE = connect to Input Trigger

WHITE = connect to chassis ground

YELLOW = connect to chassis ground

RED = connect to BROWN wire on

VuLink base cable

WHITE = +12VDC Generic Input Trigger

WHITE = Tie to Ground

VuLink Base Cable

008-01456-00

Relay

BLACK = Chassis Ground
