DVM-500Plus Installation Guide 002-0501-02 REV C Page 11

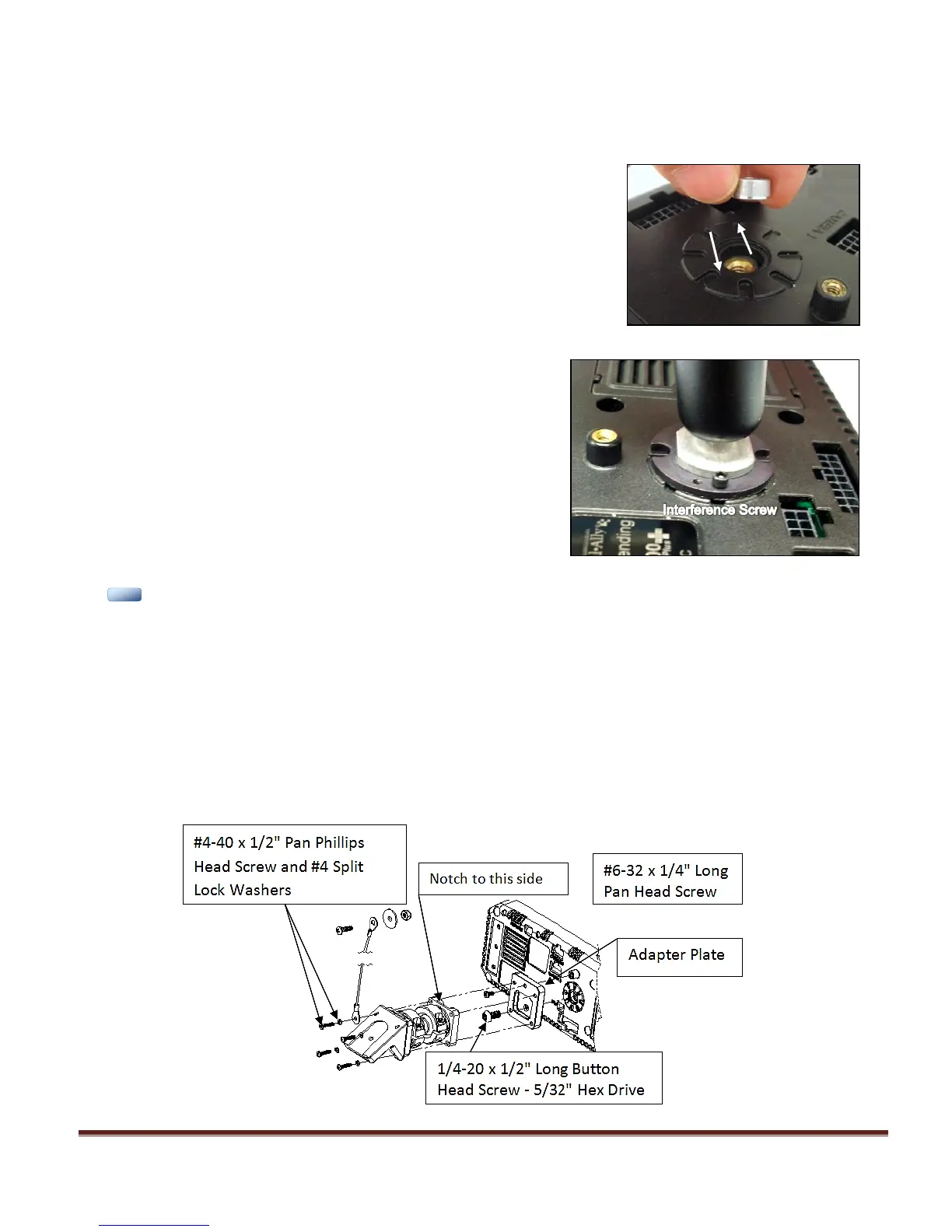

2. Mounting the mirror
2.1.1. It is recommended that all threaded surfaces be treated with a small amount of Blue thread-
locking compound (such as blue Loctite a.k.a. assembly
Loctite).
2.1.2. Place the aluminum spacer into the center mounting hole
in the back of the mirror. Note: The beveled edge of the
spacer should be placed face down in the mounting hole.
2.1.3. Place the adapter plate onto the mirror mount with the
angled tang pointing towards the mirror mount. The two
alignment pins on the mirror mount should seat into the
alignment slots on the adapter plate.
2.1.4. Thread the mirror mount/adapter plate assembly
into the center mounting hole in the back of the
mirror and hand tighten. Using a wrench, tighten
the mirror mount 1/4 turn.
2.1.5. Insert the Interference Screw into one of the
holes until it bottoms out in the groove (it is normal
for the shoulder of the cap screw to protrude above
the lanyard). This will prevent the mirror mount from
rotating.
If neither screw hole aligns with a groove, then gently tighten the mirror mount until one of them does.
3. Optional Big Ball Mount
To attach the optional big ball mirror mount, attach the adapter plate with the supplied 1/4-20 x 1/2"
long button head screw and the #6-32 x 1/4" long pan head screw as shown below. Leave the
aluminum spacer in place between the DVM and the adapter plate. Apply removable thread locker to
both.
