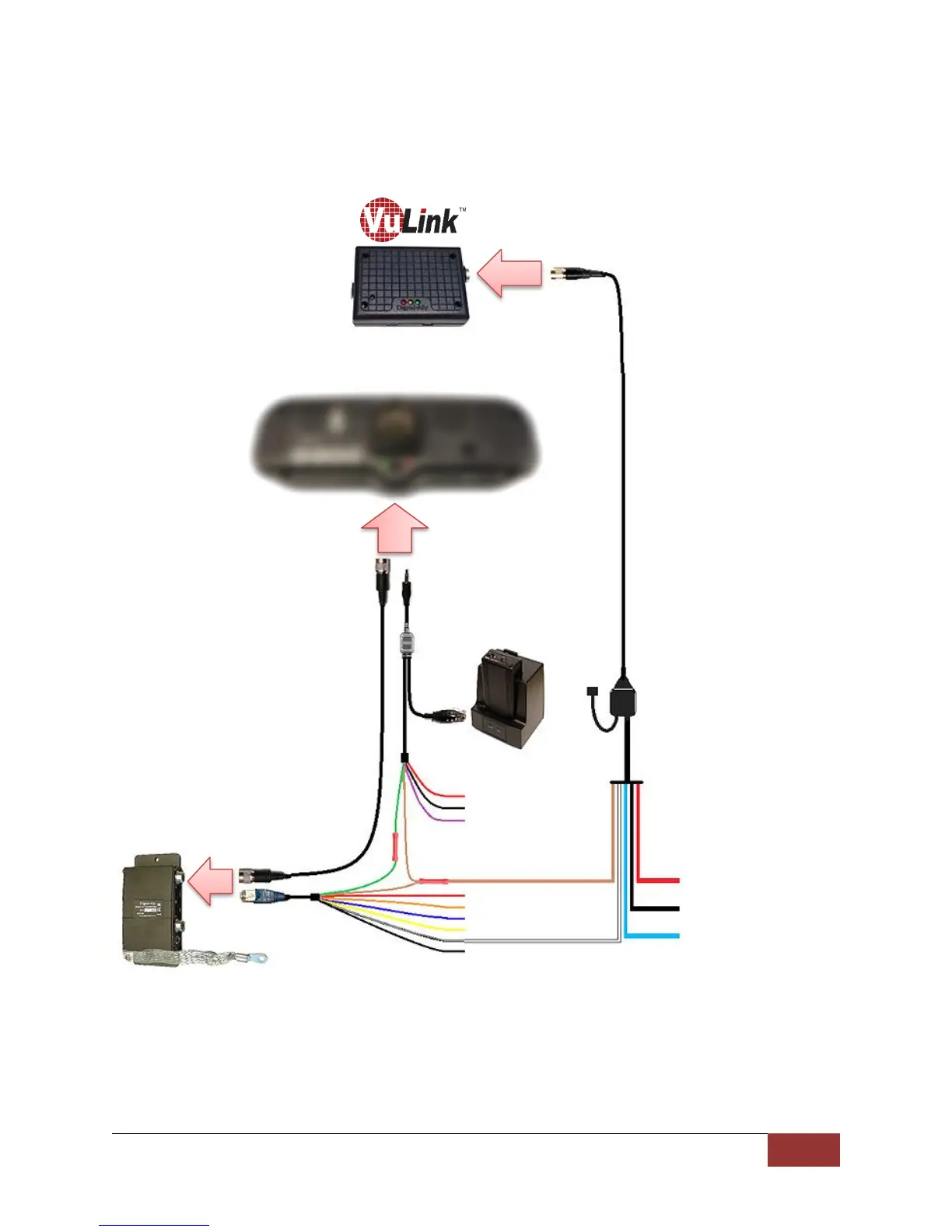

VuLink Operation & Installation Guide 860-00198-00 REV A
Digital Ally, Inc. | Model-Specific Wiring Diagrams
4-3
DVM-800 / DVM-LiVE
I/O Box
VuLink Base Cable
008-01456-00
RED = +12VDC Battery
BLACK = Chassis Ground
BLUE = +12VDC
Switched Ignition
Connect WHITE wire
from VuLink Base Cable
to WHITE wire of I/O
box sensor cable
(Sensor 5)
Connect BROWN
wire from VuLink
Base Cable to
BROWN wire of I/O
box sensor cable
NC
