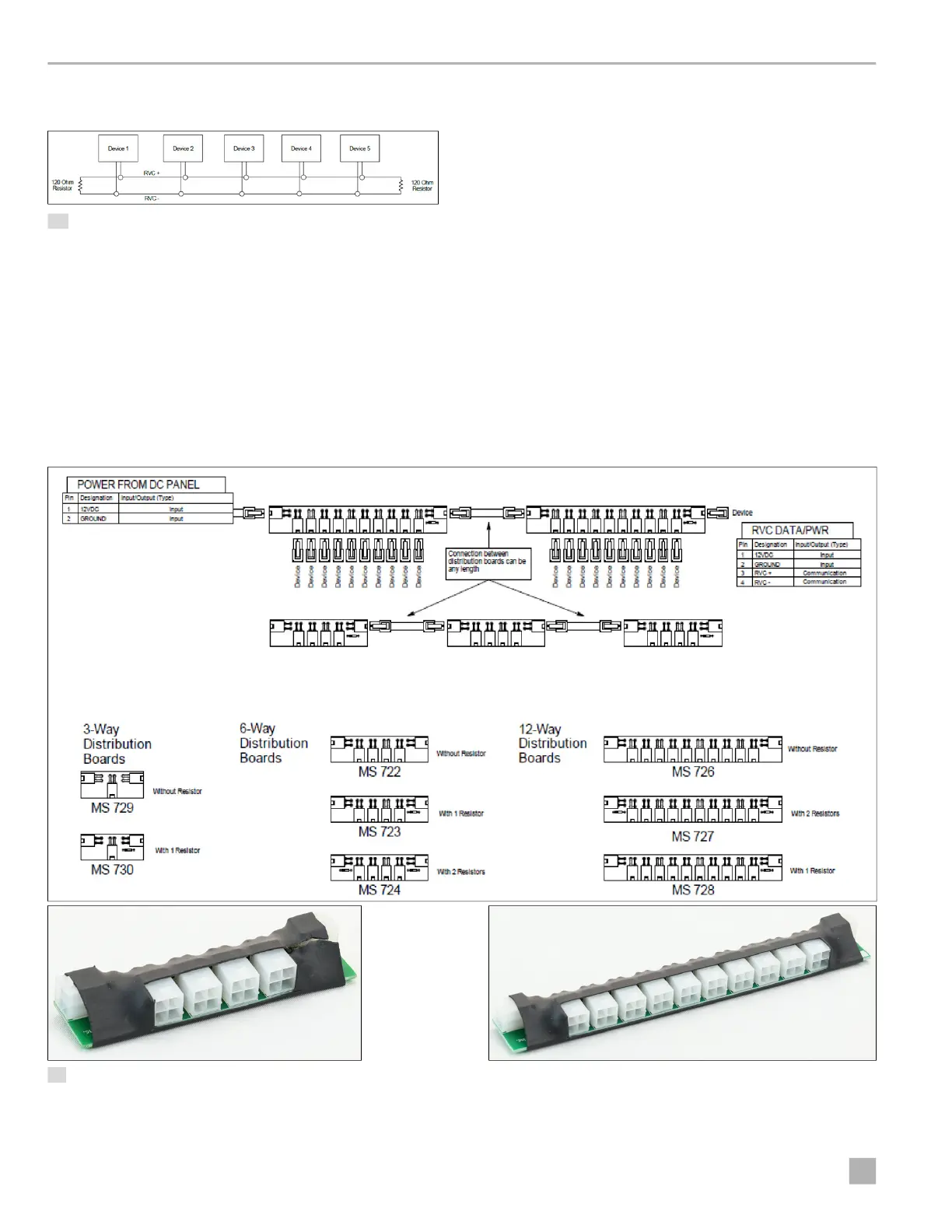

Here is an example of a typical wireframe RVC
communication network:
10 Typical Wireframe RV Communication Network
2.4.1 RVC Distribution Boards
The RVC distribution boards used with this system enable
central distribution points for communication and power
for all the devices. They can be 3-way, 6-way, or 12-way,
both with and without terminating resistors (which are
installed on the boards themselves).
This provides a simple way to increase the network size
while allowing for flexibility in locating devices.
Make sure to choose a distribution board with 120 ohm
resistors on both ends of the bus. If you look at the
drawing below, the distribution board in the middle does
not need a 120 ohm resistor.
Here are some examples of the distribution boards,
which are chosen based on the OEM installation
requirements:
11 Example Distribution Boards
