Service Procedures Americana and New Generation Refrigerators
8.23 Bypassing the Ice Maker

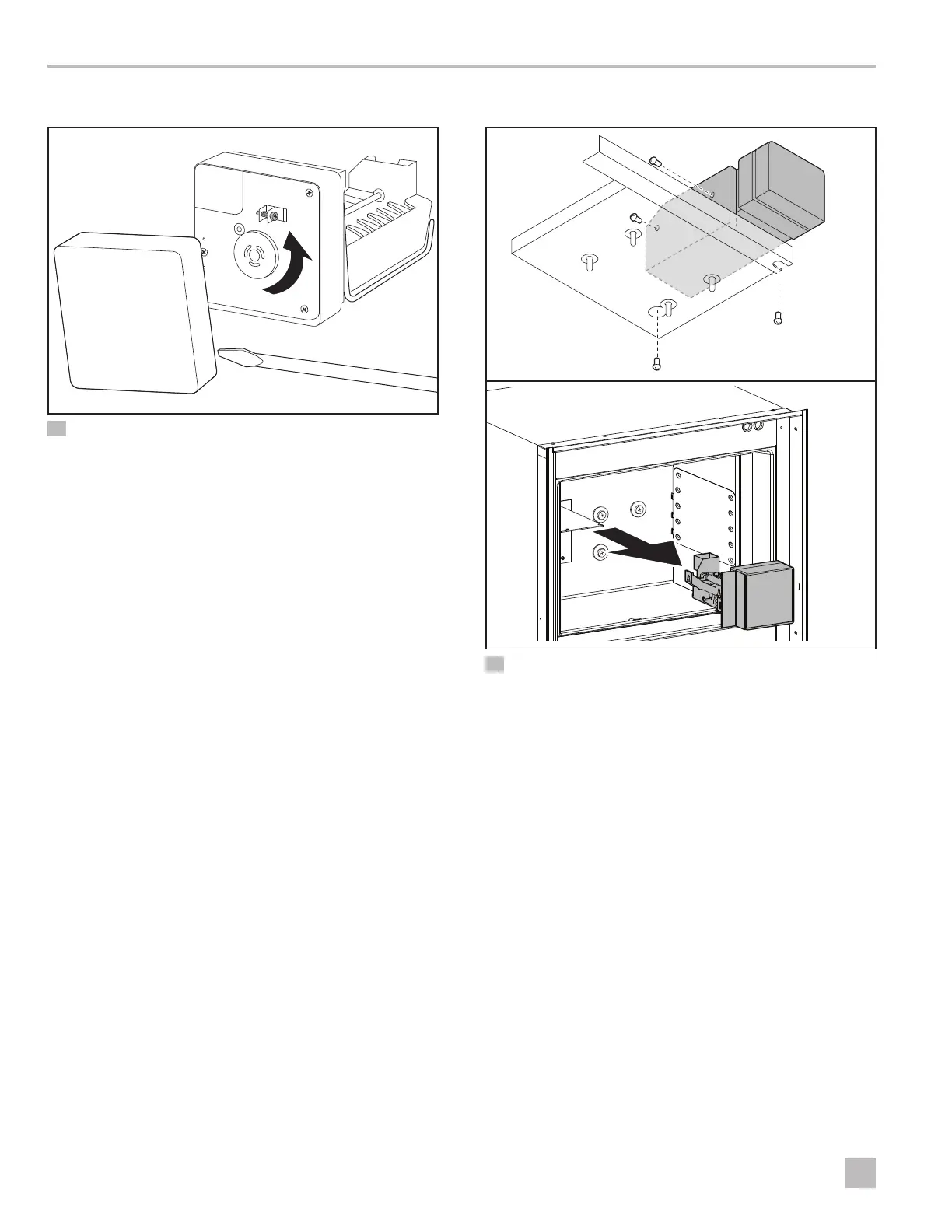

23 Removing the Ice Maker Cover
q
Cover
w
Plastic Gear
Remove the plastic cover on the front of the ice maker.
1. Turn the larger of the two plastic gears a half turn
clockwise to force the ice maker to cycle.
If the ice maker doesn’t cycle, it may indicate a
defective ice maker.
8.24 Replacing the Ice Maker
24 Removing the Ice Maker
q
Screw
w
Ice Maker
1. Disconnect the unit from all power sources (120VAC
and 12VDC).
2. Disconnect the four-pin connector from the ice
maker.
3. Remove the screws holding the ice maker in place.
4. Slide the defective ice maker out of the freezer
compartment.
5. Perform these steps in reverse with the new ice maker
to complete the replacement.
q
q
w
w
