36
EN
Service Procedures Americana and New Generation Refrigerators
8.15 Replacing the Door Hinge
w
q

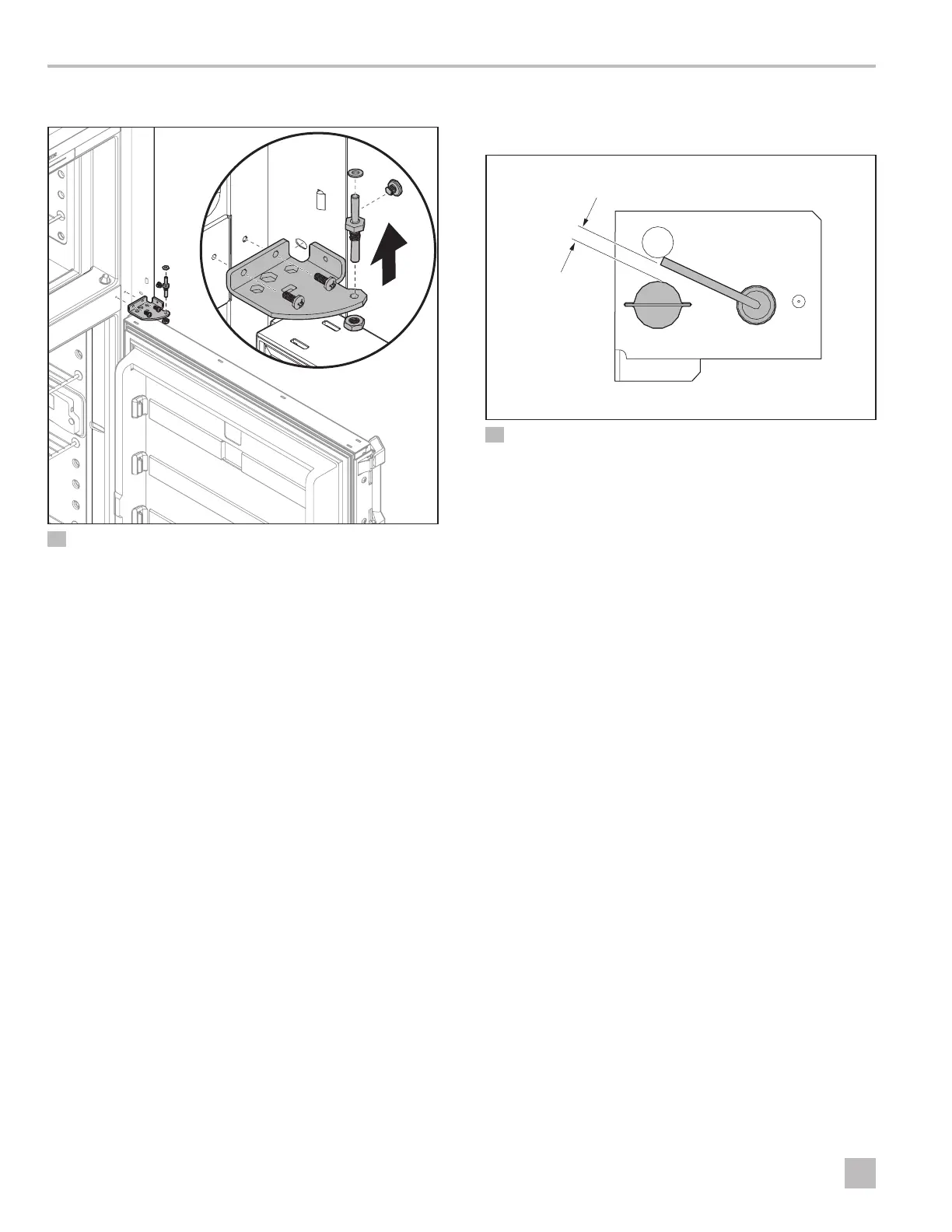

15 Removing the Door Hinge
q
Door Hinge
w
Screws
The following steps may vary depending on the model,
generation, number of doors, and direction the door
opens.
1. Follow the steps in “Replacing the Door” on page
34 to access the hinges and remove the door from
the refrigerator.
2. Remove the screws securing the hinge to the
refrigerator.
3. Perform these steps in reverse with the new hinge to
complete the replacement.
8.16 Adjusting the Position of the
Electrode
q
16 Adjusting the Electrode Gap
q
Gap: 3/16 in. (4.8 mm)
1. Disconnect the unit from all power sources (120VAC
and 12VDC).
2. Remove the shielding around the burner housing to
access the electrode.
3. Loosen the set screw securing the electrode to the
burner housing.
I
To avoid cracking the ceramic insulator, do not try
to adjust the electrode without first loosening the
screw that holds it in position.
4. Adjust the electrode until the tip of the electrode is
centered le-to-right and 3/16in. (4.8mm) above
the burner.
5. Perform these steps in reverse to complete the
adjustment.
