8.27 Replacing the Orifice
q
w

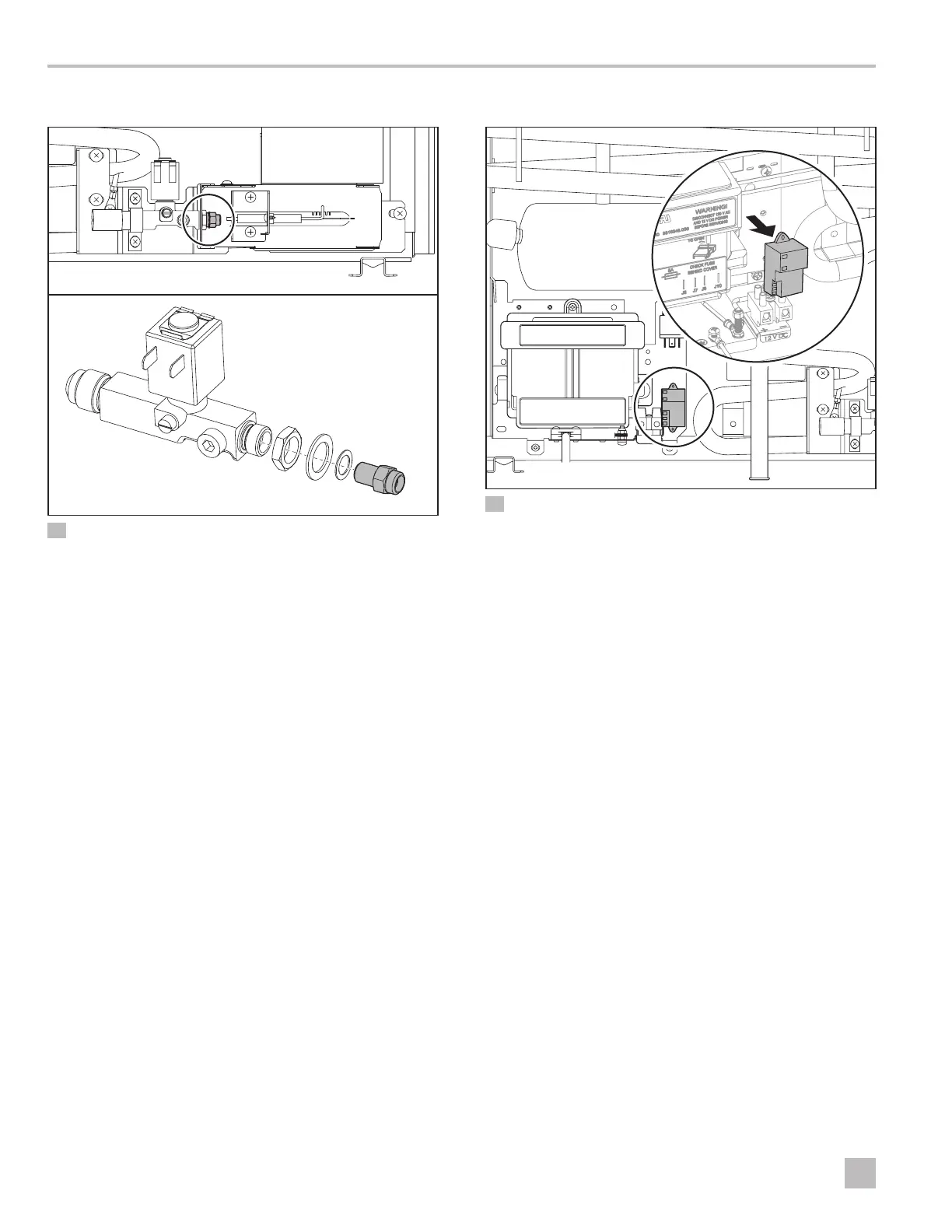

27 Removing the Orifice from the Gas Valve
q
Gas Valve
w
Orifice
1. Disconnect the unit from all power sources (120VAC
and 12VDC).
2. Turn off the LP gas supply to the refrigerator.
3. Unscrew the orifice from the end of gas valve.
4. Remove the defective orifice.
5. Complete these steps in reverse with the new orifice
to complete the replacement.
6. Verify there are no LP gas leaks. Refer to “Performing a
Gas Leak Test” on page 30 for more details.
8.28 Replacing the Re-igniter
28 Removing the Re-igniter
q
Re-igniter
I
On some models, the re-igniter is integrated into
the lower control module and the entire module
must be replaced. Always use the product number
to acquire the correct part.
1. Disconnect the unit from all power sources (120VAC
and 12VDC).
2. Locate and remove the screw securing the re-igniter
cover to the refrigerator wall.
3. Disconnect the re-igniter from the lower control
module and the electrode.
4. Remove the defective re-igniter.
5. Perform these steps in reverse with a new re-igniter to
complete the replacement.
