579 & 595 Installation Instructions

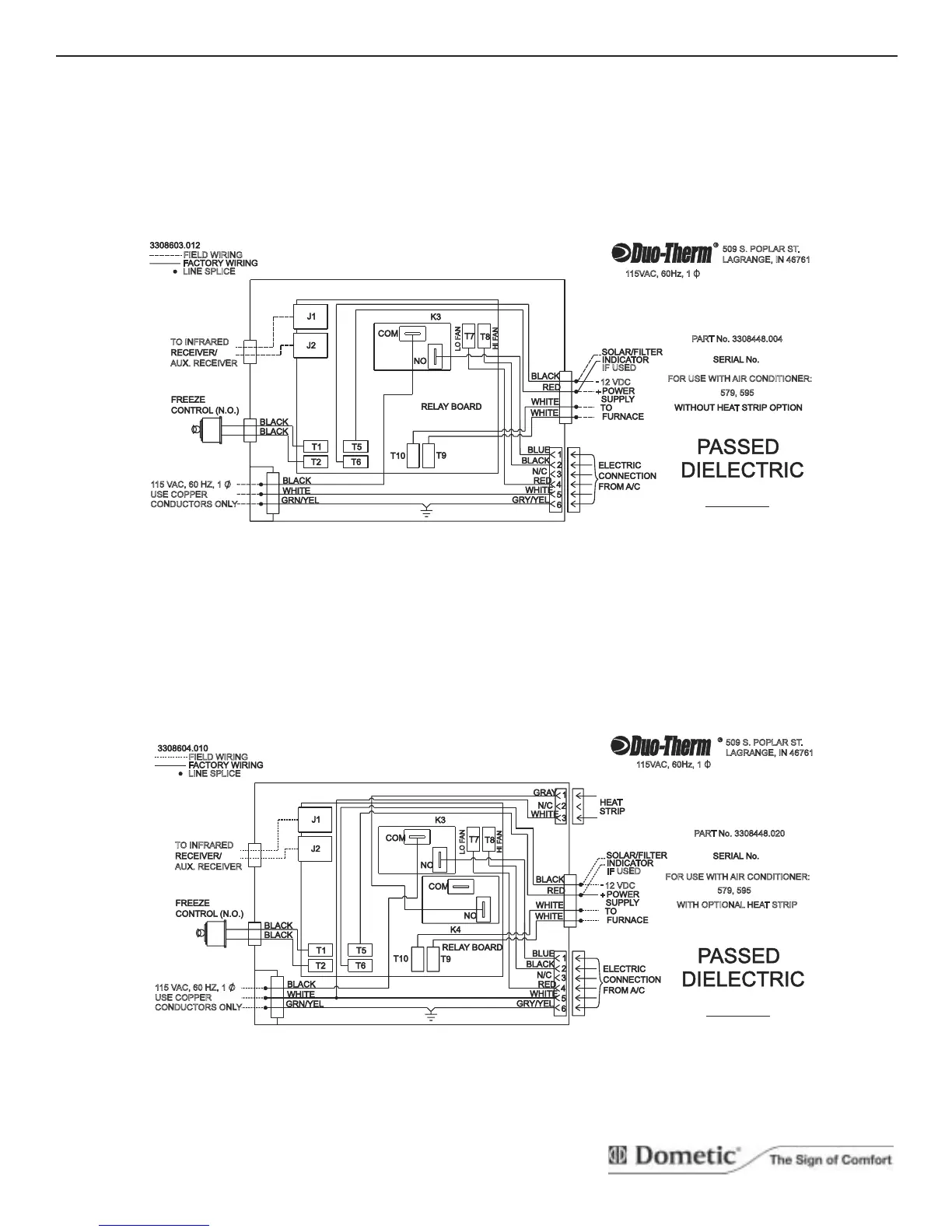

3308417.009 FIELD WIRING DIAGRAM
PART No. 3308448.004
FOR USE WITH AIR CONDITIONER:
579, 595
509 S. POPLAR ST.
LAGRANGE, IN 46761
FIELD WIRING
LINE SPLICE
115VAC, 60Hz, 1 O
USE COPPER
CONDUCTORS ONLY
12 VDC
AUX. RECEIVER
TO INFRARED
LO FAN
HI FAN
115 VAC, 60 HZ, 1 O
IF USED
TO INFRARED
AUX. RECEIVER
LO FAN
HI FAN
12 VDC
WITH OPTIONAL HEAT STRIP
579, 595
115VAC, 60Hz, 1 O
FOR USE WITH AIR CONDITIONER:
PART No. 3308448.020
509 S. POPLAR ST.
LAGRANGE, IN 46761
IF USED
115 VAC, 60 HZ, 1 O
CONDUCTORS ONLY
USE COPPER
FIELD WIRING
LINE SPLICE
3308417.025 FIELD WIRING DIAGRAM
