579 & 595 Installation Instructions
the line of sight of the receiver.
a. If another receiver mounting location is antici-
pated, observe the following general rules in
determining the location and submit location to
Dometic for approval.
• Locate the Receiver 54" above the floor.
• NEVER expose it to direct heat from lamps,
sun or other heat producing items.
• Avoid locations close to doors that lead
outside, windows or adjoining outside walls
or directly under cabinets or overhangs
which limit air movement.
• Avoid locations close to supply registers
and the air from them.
• NEVER locate receiver in a room that is
warmer or cooler than the rest of the RV.
• The major living area is normally a good
location.
2. Receiver Cable Installation
A 4-conductor receiver cable must be routed from the
roof opening to the Receiver
.
a. Choose the shortest, most direct route from the
14-1/4" x 14-1/4" (±1/8") opening to the Re-
ceiver
location selected. Leave 6" of cable
extending through the wall. See Section D-4.
b. The receiver cable that should be used is a flat,
4-conductor telephone cable.
c. The receiver cable must be terminated with two
(2) RJ-11 telephone connectors. Refer to the
crimp tool manufacture for crimping instruc-
Flat Four
Conductor Wire
Furnace
2 Wires
Furnace
AC Breaker
Box
AC Power
Supply Wires
DC Power
Supply 2 Wires
Air
Conditioner
Receiver
14-1/4" x 14-1/4"
(±1/8") Opening

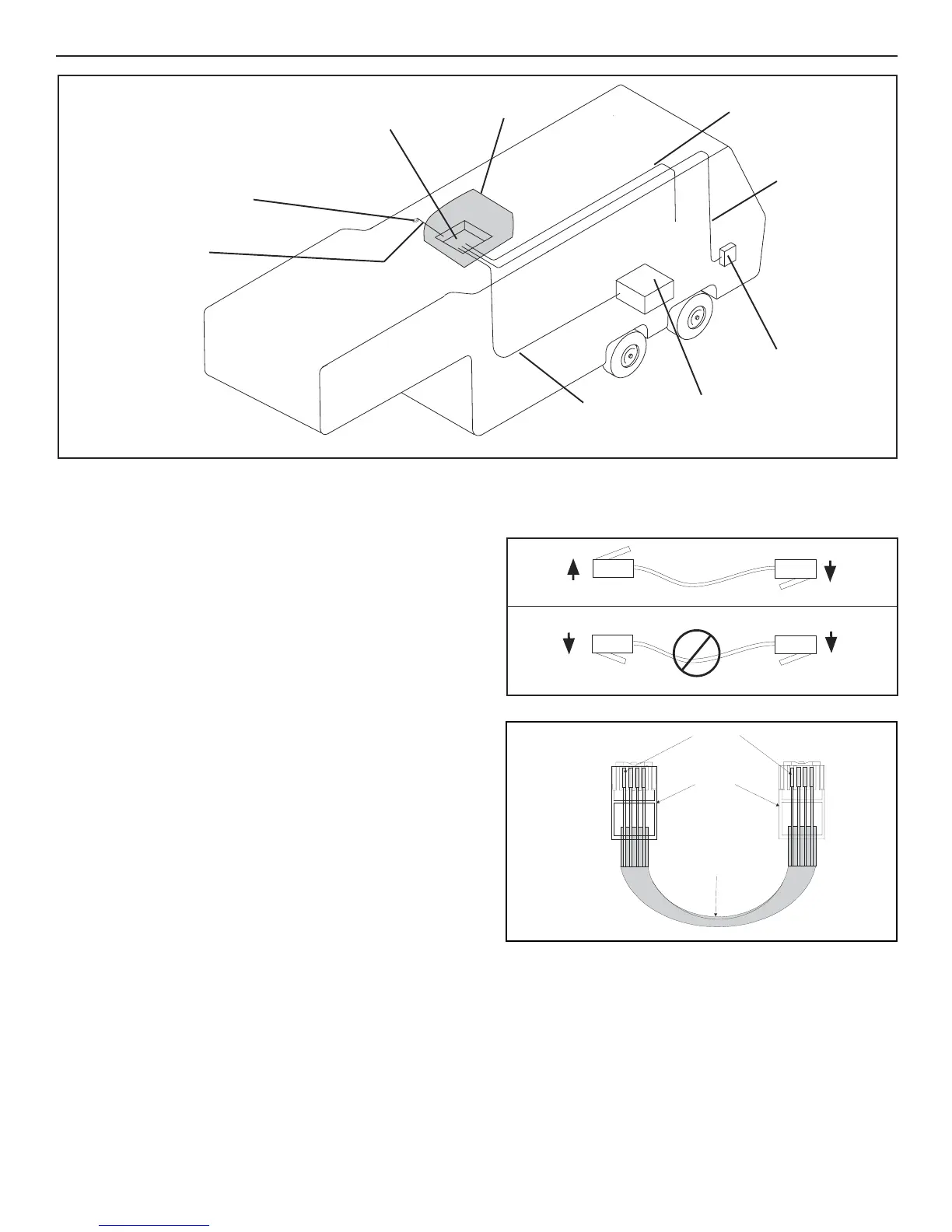

FIG. 9
Flat Four Conductor Cable
RJ-11 Connector
Pin 1
FIG. 10C
FIG. 10A
FIG. 10B
tions.
