Pre-Installation Value Air Distribution Box (ADB), Mechanical
Elec Conn
From A/C
Thermostat
Rotary Switch
BLK
YEL
RED
BLU
C,4
L,3
H,6
GRN/YEL
BLU
BLK
GRN/YELG
L
N
WHT
1
1 L1
2 H
4 C
2
3
4
5
6

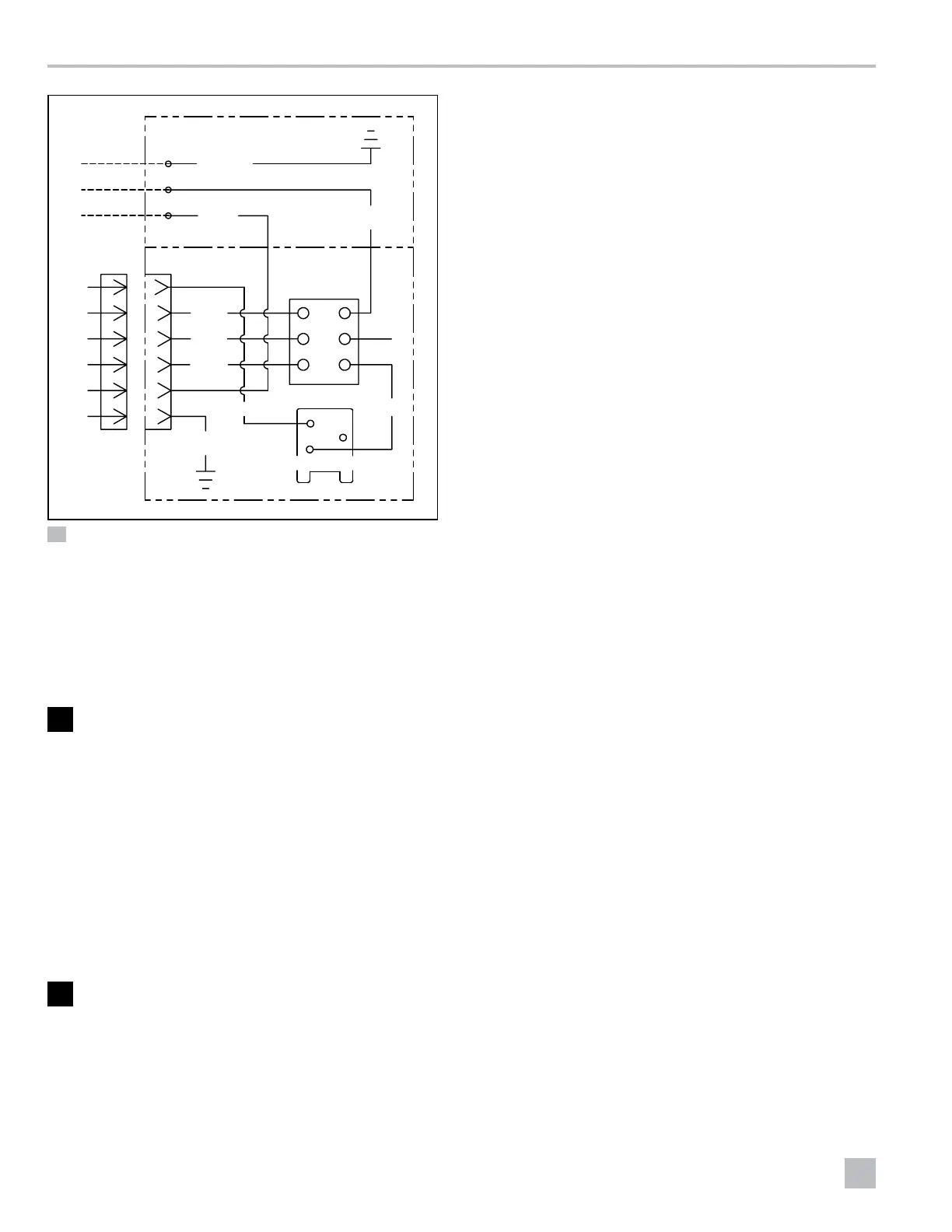

14 ADB Wiring Diagram - All Models
1
Wiring Diagram Definitions; 115 VAC; 60 Hz 1 PH; Use Copper Conductors only
- - - - - - Field Wiring
---------- Factory Wiring
• Line Splice
6 Pre-Installation

WARNING: FIRE OR ELECTRICAL SHOCK
HAZARD. Failure to obey these warnings
could result in death or serious injury.
• Shut off the gas supply, disconnect the 115 VAC
power from the RV, and disconnect the positive
(+) 12VDC terminal from the supply battery before
drilling or cutting into the RV.
• Make sure there are no obstacles such as wires or
pipes inside the RV’s roof.
• Provide grounding in compliance with all applicable
electrical codes.

CAUTION: LIFTING HAZARD.
Use proper liing technique and control when
liing the unit. Failure to obey this caution could
result in minor or moderate injury.
NOTICE: Failure to follow these notices could
result in damage to the rooop component and/
or the RV.
• Never create a low spot on the RV roof.
• Maintain the structural integrity of the RV roof. The
roof must be designed to support 130 lbs (59 kg)
when the RV is in motion. Normally, a 200 lb (91 kg)
static load design will meet this requirement.
• Read this entire section before beginning the
installation.
This section describes how to install and set up the unit.
6.1 Determining Your Cooling
Needs
When determining your cooling requirements, consider
the following items:
• The size of the RV
• The RV window area (which could increase heat gain)
• The amount of insulation in the walls and the roof
• The geographical location where the RV will be used
• The personal comfort level required
6.2 Preparing the RV Roof Opening
NOTICE: The roof opening must be structurally framed
to provide adequate support and to prevent air from
being drawn from the roof cavity. Framing stock with
0.75 in. (19 mm) or more thickness must be used.
Remember to provide an entrance hole for power
supplies at the front of the opening. See Figure 16.
This section describes how to prepare the RV roof
opening.

Dometic Penguin Specifications

General

Brand	Dometic
Model	Penguin
Category	Air Conditioner
Language	English
