Value Air Distribution Box (ADB), Mechanical General Information
3.4 Rooop Component Dimensions
by Model
This section provides the external dimensions and
clearance measurements of the rooop component.
3.4.1 FreshJet
q
yt
r
u
i
w
e

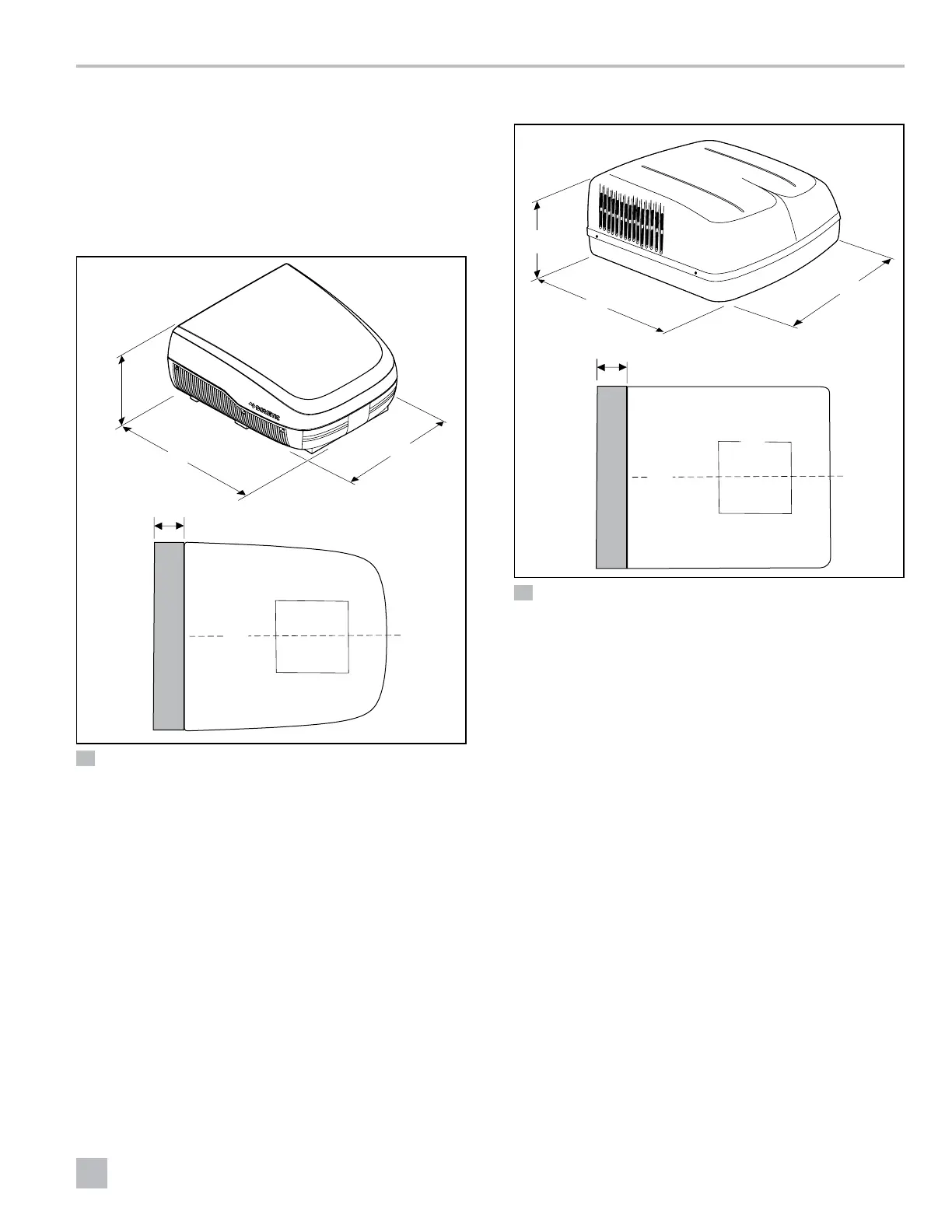

2 FreshJet (FJX3473, FJX3573)
q
13.8 in. (351 mm)
t
Air Flow Clearance
Area (Shaded)
w
29.6 in. (753 mm)
e
27.6 in. (702 mm)
y
Center Line of Unit
r
18.0 in. (457 mm)
Clearance
u
Roof Opening
i
Front of Unit
3.4.2 Brisk Air
q
r
i
u
t
y
w
e
3 Brisk Air (457915, 459516)
q
13.1 in. (333 mm)
y
Front of Unit
w
34.9 in. (886 mm)
u
18.0 in. (457 mm)
Clearance
e
29.9 in. (760 mm)
r
Center Line of Unit
i
Air Flow Clearance
Area (Shaded)
t
Roof Opening
