Please contact Dometic Service Centres for
replacement LED-lighting.
 Switch off the refrigerator.
 Remove the reflector disk.
 Loosen LED-housing and take it off.
 Connect new LED-board. Observe polarity.
 Clip the LED-housing back in place.
 Clip reflector disk back in.
 Switch on the refrigerator.

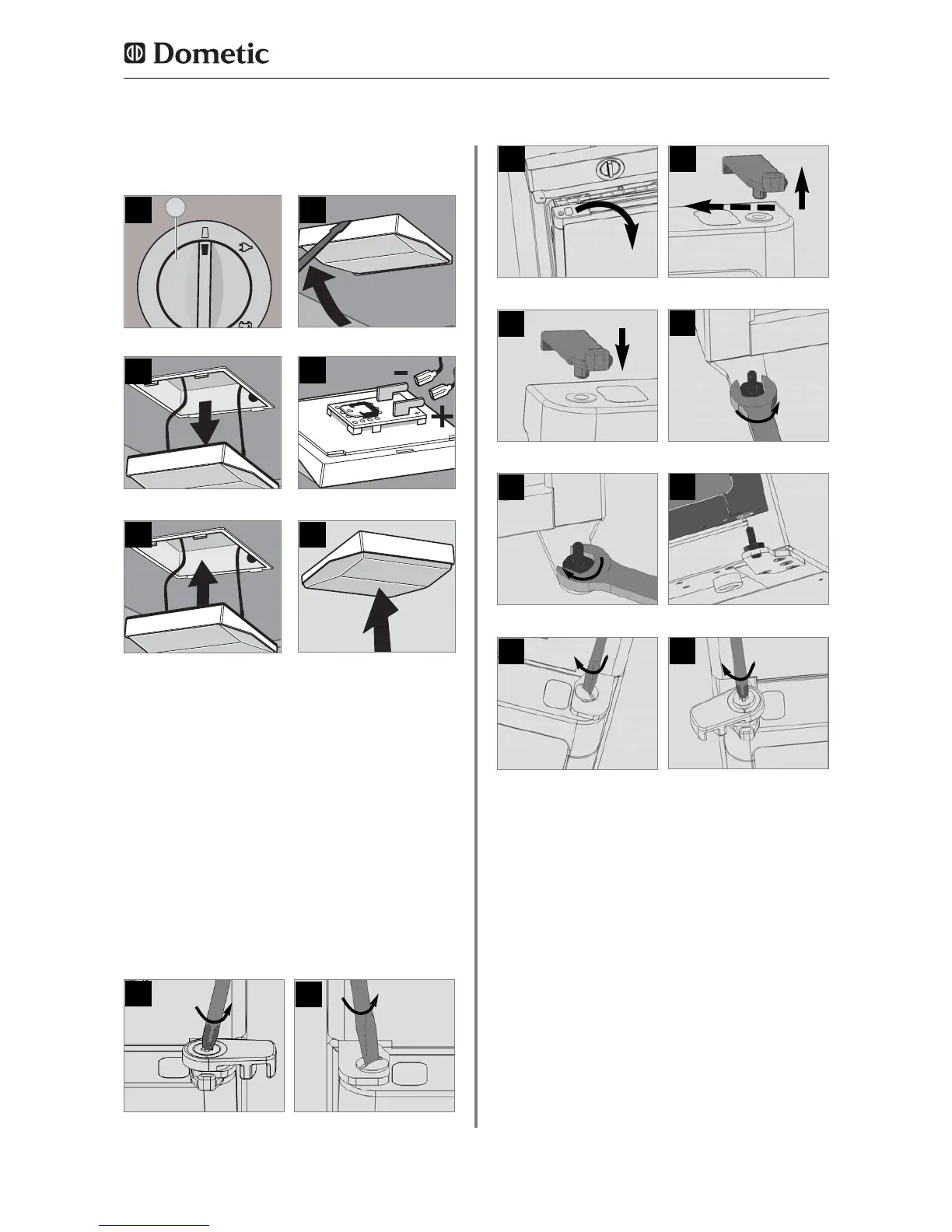

4.10 Exchange of interior lighting
Refrigerator operation
Fig. 23
Fig. 24
Fig. 25
Fig. 26
Fig. 21
1
3
Fig. 22
2
5
4
6
1
Fig. 31
Fig. 32
Fig. 33
Fig. 34
Fig. 29
4.11 Changing the doorhang
1
3
Fig. 30
2
5
4
6
Fig. 35
Fig. 36
7
8
Fig. 37
Fig. 38
9
10
 Unscrew the travel catch (door lock)
 Remove screw, travel catch and distance
ring.
 Unscrew the hinge screw at the opposite
side and keep it to hand.
 Lift the door from for removing it.
 Remove the travel catch nose from the
door and mount it on the opposite side.
 Unscrew the lower hinge pin and mount it
on the opposite side hinge .
 Fit the door on the hinge pin.
 Screw on the upper hinge screw.
 Screw on the travel catch.

Dometic RM 5310 Specifications

General

Climate class	SN
Total net capacity	55 L
Total gross capacity	60 L
Minimum operating temperature	10 °C
Lamp type	LED
Fridge net capacity	50 L
Fridge interior light	Yes
Number of vegetable drawers	-
Freezer position	Top-placed
Freezing capacity	- kg/24h
Freezer net capacity	5 L
Storage time during power failure	- h
Current	0.54 A
Power source	Gas/Electric
Connected load	125 W
Gas consumption	270 g/24h
AC input voltage	230 - 240 V
AC input frequency	50 - 60 Hz
Door hinge	Left
Control type	Rotary
Product color	Black, Grey
Appliance placement	Freestanding
Refrigerating medium	R717
Package depth	543 mm
Package width	523 mm
Package height	635 mm
Package weight	24000 g

Weight and Dimensions

Depth	474 mm
Width	486 mm
Height	618 mm
Weight	20000 g
