28
11.

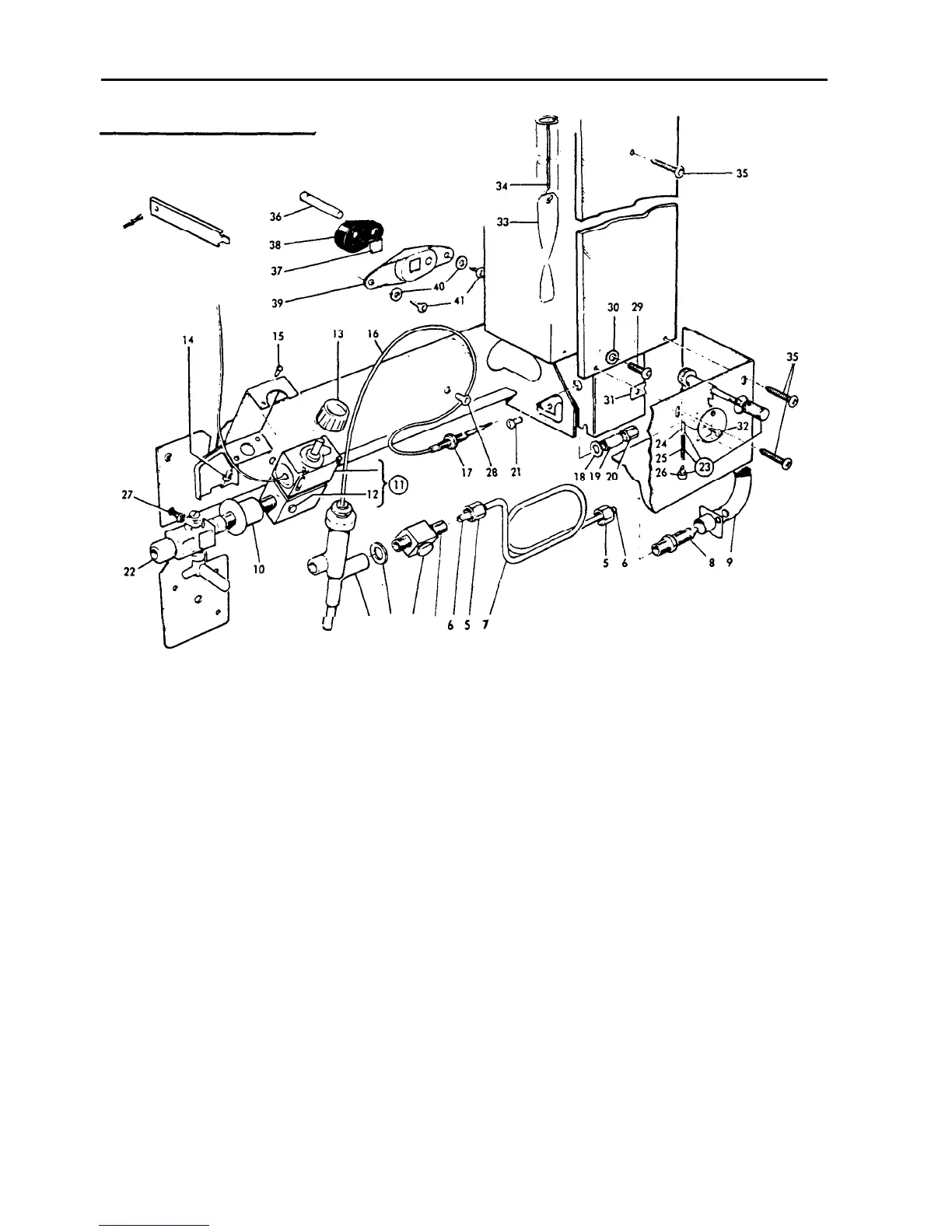

GAS EQUIPMEN
T
FOR
RM24
65
7
‘J
1 2 3 4
Fig
.
49
Item
No.
Description
Item
NO.
1
S.I.T.
thermo-electric flame failure device
2
Lock nut
3
Pressure test connection
4
Housing for test connection
5
Union nut
6
Olive
7
Gas pipe
8
Burner jet
9
Burner pipe
10
Filter with nippl
e
&
nut
11
Thermosta
t
Ranco
V35
12
By-pass screw
13
Thermos tat knob
14
Screw
15
Indicator
16
Thermo-coup le
17
Lock nut
18
Washer
19
Distance tube
20
Distance nut
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
Description
Screw
Gas cock
Flint lighter
,
compl.
Flint
Spring
Screw
Screw
Screw
Screw
Washer
Spire speed nut
Screw
Baffle
Baffle support wire
Screw
Viewing
glass
Window
Seal for viewer and flint
lighter
Metal shield
Washer
Screw
27
29
