Dometic RML8 Series Service Instructions

13
Components

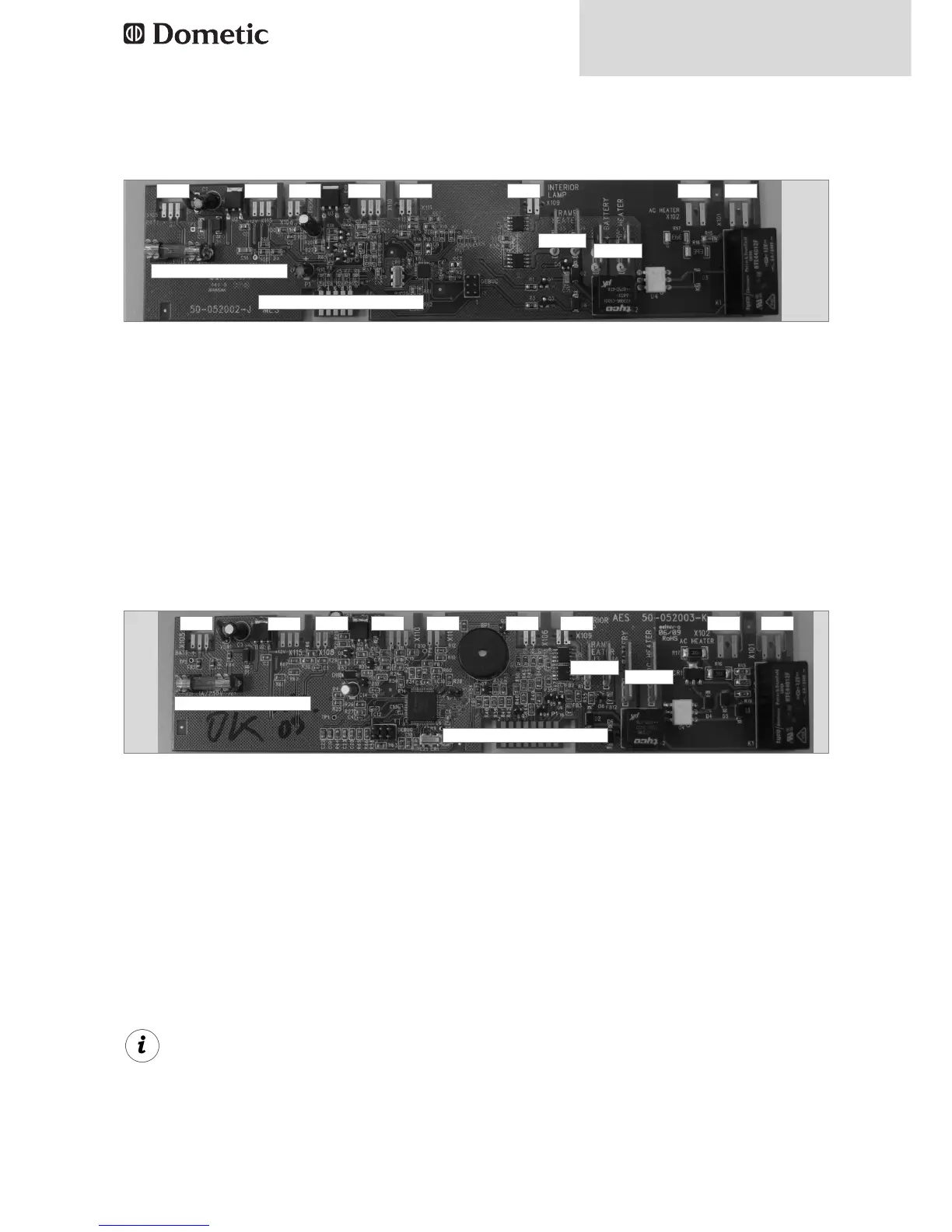

2.1.3 Power module RMD 8xx1 ( MES)
2.1.4 Power module RMD 8xx5 ( AES)
X105 = 12 V Supply / - Wiring Recognition of heating element
X115 = 3 pin connection from display moduls to external LEDs (operating display)
X108 = Temperature sensor (NTC)
X110 = Connection to burner control device (+/-, failure)
X111 = Door switch for interior light
X109 = Interior light
J4/J5 = Frame heating
J1 = +12 V IN for heating element
J2 = +12 V Heating element
X102 = Heating element mains power
X101 = Mains power inlet *Fuse12V
Fig. 19
X105 = 12 V Supply / - Wiring Recognition of heating element
X115 = 3 pin connection from display moduls to external LEDs (operating display)
X108 = Temperature sensor (NTC)
X110 = Connection to burner control device (+/-, failure)
X111 = Door switch for interior light
X106 = D+/Solar+ - connection
X109 = Interior light
J4/J5 = Frame heating
J1 = +12 V IN for heating element
J2 = +12 V Heating element
X102 = Heating element mains power
X101 = Mains power inlet *Fuse 12V
Fig. 20
X105
Fuse* 1A / 250V
X115
X108 X110 X111 X109 X102 X101
Connection to display
J4/J5
J1/J2
X105
Fuse* 1A / 250V
X115
X108
X110
X111 X109X106 X102 X101
Connection to display
J4/J5
J1/J2
Differences to MES/AES RM 8xxx:
X114 no electrical door lock
X115 new, connection for exteranl LED
RF function eliminated on AES board
