Correct mounting of the lower ventilation grille
facilitates access to the connections and
functional parts during maintenance.
The bottom of the upper ventilation grille must
be equal to or above the height of the refrige-
rator.
Minimum height of ventilation H
1.
Roof exhaust vent
1250 mm
2.
Upper vent grille LS300/L500 Height of fridge

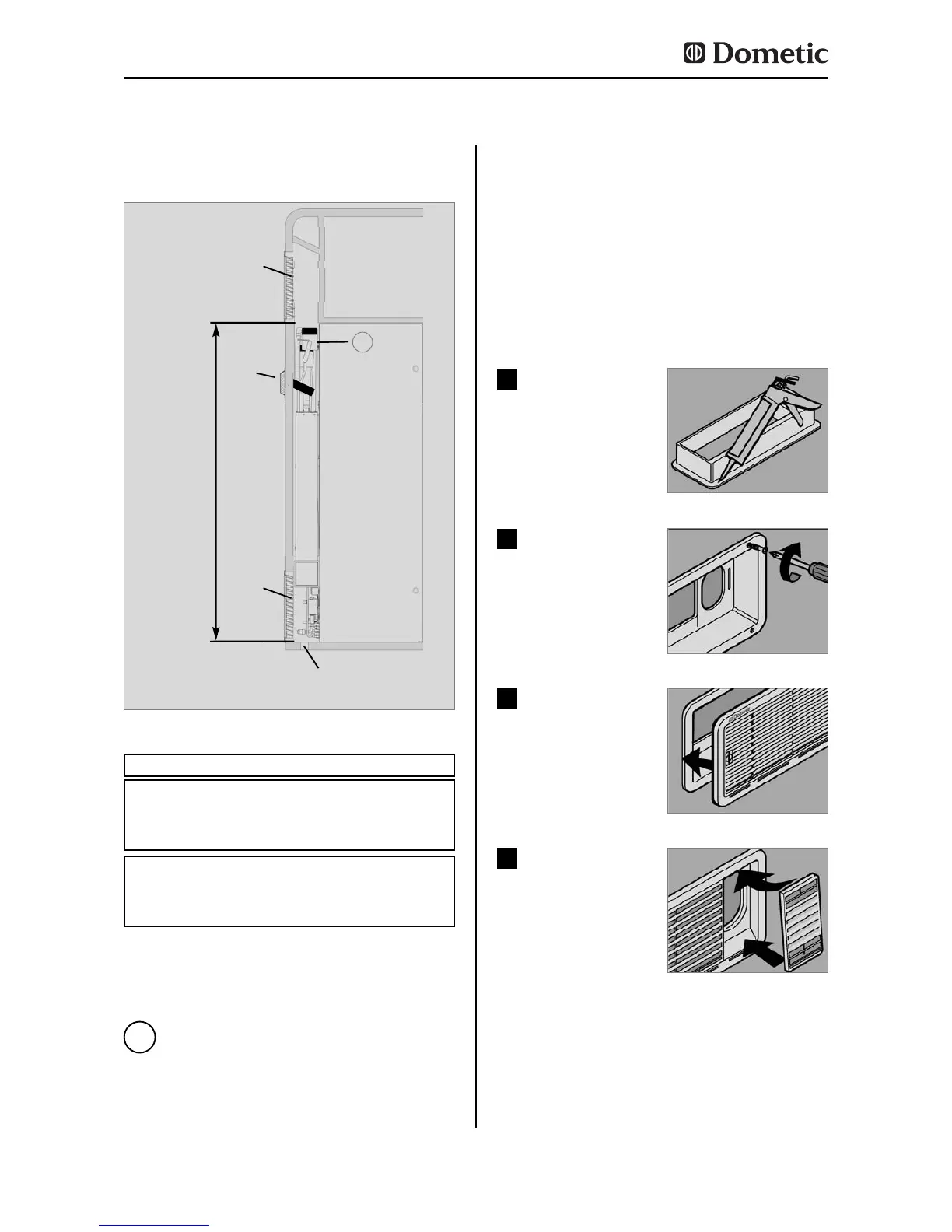

Positioning of lower and upper ventilation
grilles LS300 or L500 (NZ)
Fig. 17
Minimum height of ventilation
H
optional ventilation
aperture Ø min 40 mm
LS300
or
L500
(NZ)
LS300
or
L500
(NZ)
A
Fig. 18
Seal the mounting
frame making it water-
proof ( does not apply
for mounting frames
with integral seal ).
1
Fig. 19
Insert frame and screw
into position
2
To install the ventilation grilles cut two rectan-
gles to suit vents in the outer wall of the vehi-
cle ( for position of the cuts, see figures 12, 17) .
Fig. 20
Insert and lock ventilati-
on grille.
3
Fig. 21
Clip the insert for flue
gas duct in position.
4
4.3.3 Installing the vent grilles
AS 1625
Installation
Flue kit
3776
i
