20

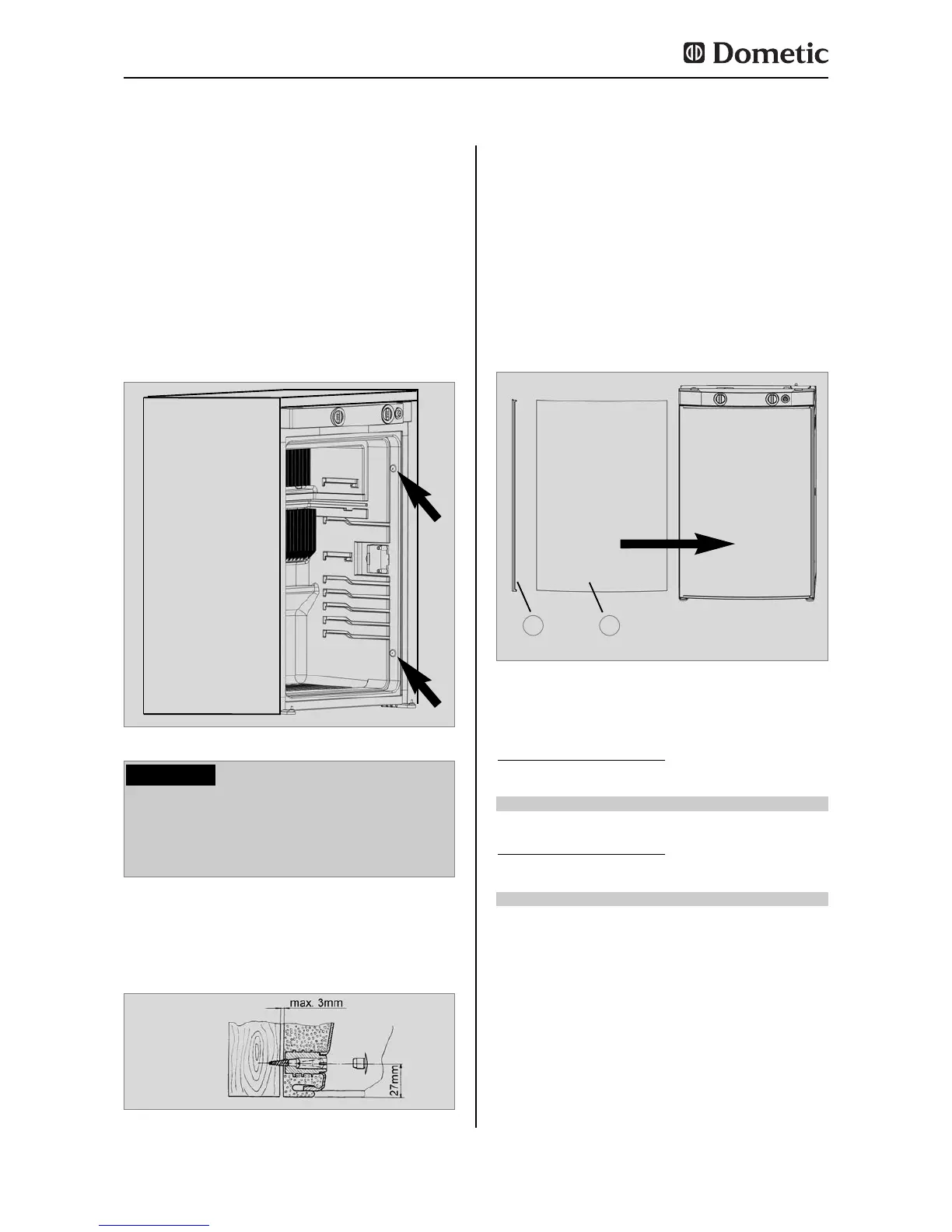

After the refrigerator is put in its final place,
secure the screws into the wall of the recess.
The screws must penetrate the casing of the
refrigerator.
Fig. 34
Fig. 35
In the sidewalls of the refrigerator, there are
four plastic sleeves for securing the refrigera-
tor. The sidewalls or strips attached for secu-
ring the refrigerator must be prepared to hold
the screws firmly in place even when under
increased load (while the vehicle is moving).
Fastening screws and caps are supplied with
the refrigerator.
4.6 Securing the refrigerator
Always insert screws through the sleeves
provided as otherwise components laid in
foam, such as cables etc., could be dama-
ged.
CAUTION!
4.7 Inserting the decor panel
n Remove the lateral ledge (1) the door
(ledge is attached, not screwed).
n Shift decor panel (2) away from the door
and insert the new decor panel. Re-attach
ledge (1) .
Fig. 36
Model RM 8xxx, RMS 8xxx
2
1
Decor panel dimensions :
743 +/- 0.5 mm 472 +/- 0.5 mm max. 2.2 mm
Casing width
486 mm
Height Width Thickness
743 +/- 0.5 mm 510,5 +0/- 1 mm max. 2.2 mm
Casing width
523 mm
Height Width Thickness
Installation
