Dometic RML8 Series Installation Instructions

17
LS 300 / L 500

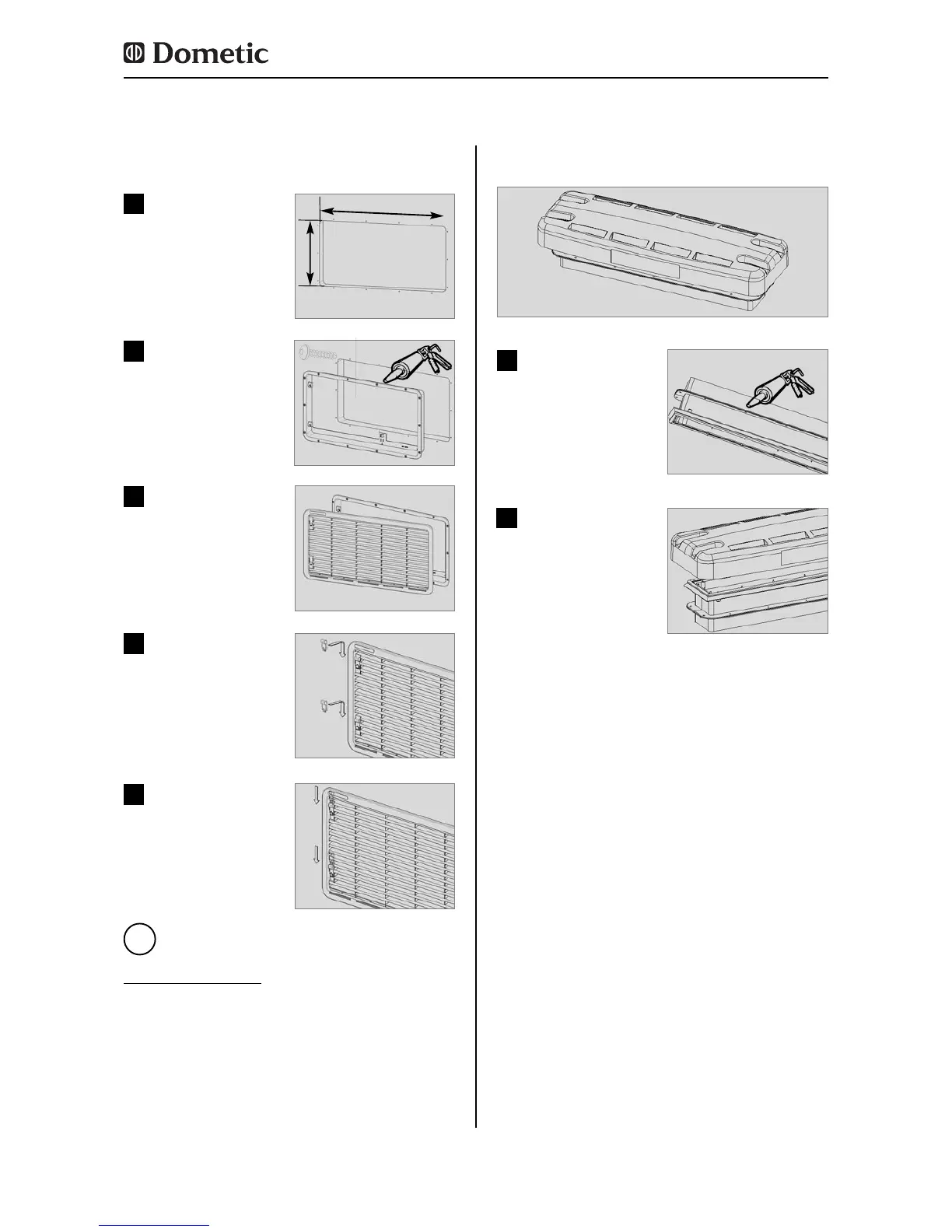

Fig. 22
Cut two rectangles in
the exterior wall of the
vehicle.
1
Fig. 23
Seal the mounting
frame making it water-
proof ( does not apply
for mounting frames
with integral seal) and
screw into position.
2
Fig. 24
Fig. 27
Fig. 29
Insert ventilation grille.
3
2
Fig. 25
Install locking slider.
4
Fig. 26
Lock ventilation grille.
5
b
a
14 x
New Zealand only: Please be aware that the
L 500 vent grille is equipped with locking
screws instead of sliders.
Fig. 28
Seal the installation
bays and screw them
to the vehicle roof.
1
Place the hood in
postion and screw it to
the installation bays.
Open cross-section of roof exhaust
minimum 640 cm²
4.3.4 Installing roof exhaust vent
Installation
i
