Installation and Operation of 613 & E Series Gas Fired Convection Oven
HI
ON
GAS SHUTOFF
POWER
LIGHT OFF
OVEN READY
HR/MIN MIN/SEC
FAN
COOK
COOL
DOWN
OVEN OFF
OFF
FAN
LOW
LIGHTS
START
STOP
HOLD
6
9
8
7
10
11
12
3
4
1
2
5

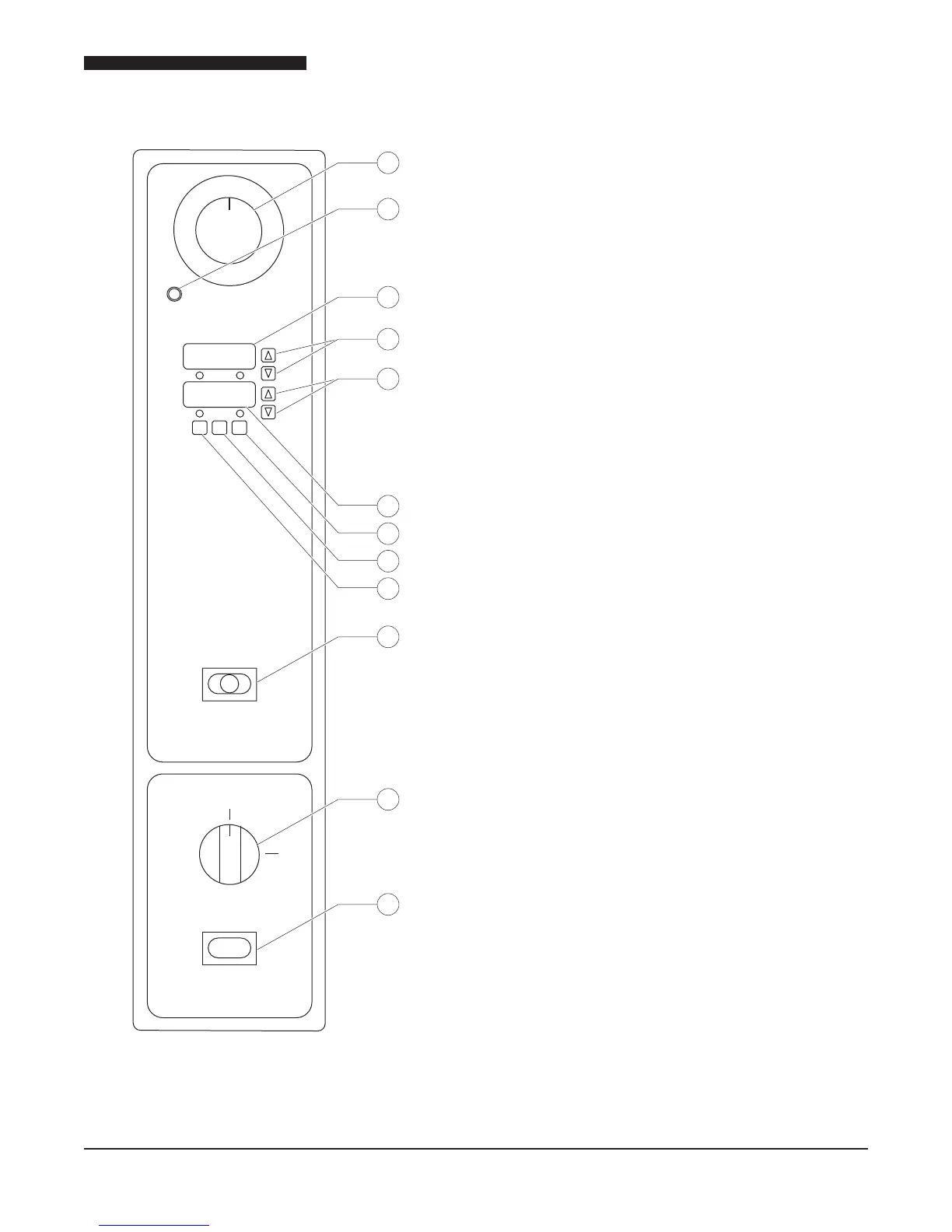

Controls power to Cook or Cool
Down functions.
When lit indicates burners or
elements are operating. When the light goes out,
the oven has reached the desired temperature.
Displays time remaining in
the chosen cycle.
Sets/Adjusts
countdown timer for cook cycle.
Sets/Adjusts
cooking temperature.
Displays the
temperature inside the oven
Enable/Disables the Hold function.
Starts/Stops the cooking cycle.
Enables/Disables the Pulse
Fan function.
(Optional) – Sets fan speed
to high or low.
Shuts the gas OFF or turns
the gas ON.
Turns interior lights on/off.
Models with the XX controller enable the oven to
cook food at a specied temperature for a specied
time period, than enter an optional hold mode. The
hold mode holds food at a specied temperature for a
specied period of time.
When the power switch is in the ON position the oven
will be in one of two modes:
• Cook Mode: In this mode the oven operates
at a specied temperature and the fan runs
continuously, unless the cycle option is selected.
In cycle mode the fan runs for 30 seconds and is
off for 30 seconds. This cycle continues during the
specied cook time.
• Hold Mode: In this mode the oven operates at a
specied hold temperature; however the fan only
runs when the burners are on. If the fan mode
switch is in the COOL position the fan will run
continuously in the Hold mode.
