NOTE: This chapter is only for Non-Touch SKU. We provide Touch Panel Assembly for
Touch SKU.
4.11 LCD Module Mask
Remove the LCD Module Mask

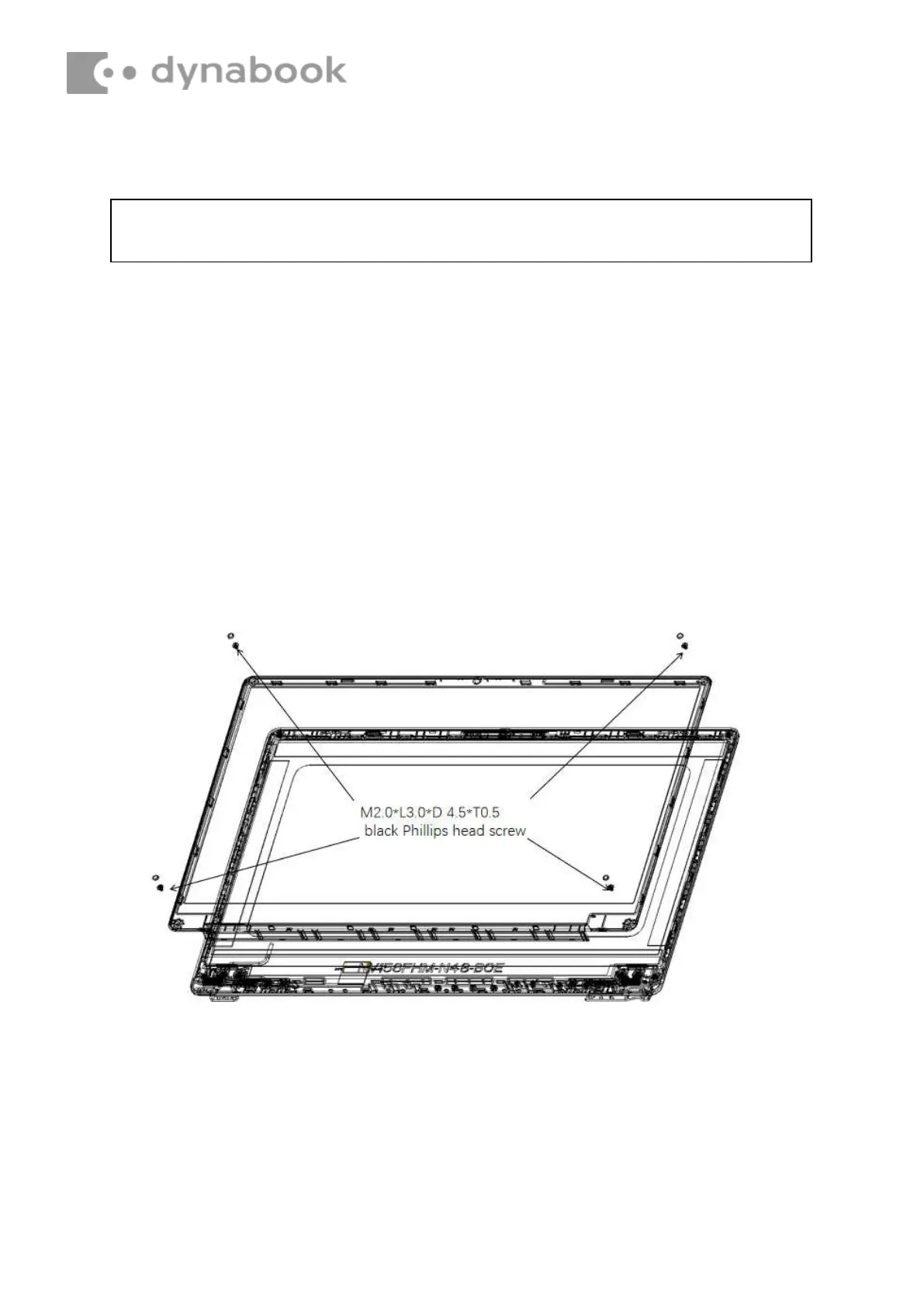

Removing the LCD Module Mask according to the following procedures and Figure 4-
1 & 4-12.
1. 1.Remove four Black (Remove the four rubber footpads from the B shell)
2. Remove four M2.0x3.0x4.5 black Phillips head screws securing the LCD Module
Mask as Figure 4- 1 shown.
3. Insert your finger between the edge of LCD Module Mask and the LCD panel by twist
in correct indication and follow step 1, 2 & 3 to release the latches as Figure 4- 27
shown.
4. Remove the LCD Module Mask while unlatching the LCD Module Mask.
Figure 4-27 Removing the LCD Module Mask
