5.2 Battery-module replacement
The battery can cause electrocution and high short-circuit currents. The following safety precautions are required
before servicing the battery components:
• remove watches, rings, bracelets and all other metal objects from the hands and arms,
• use tools with an insulated handle.
Mounting the new battery module
Carry out the above instructions in reverse order.
• To ensure safety and high performance, use only batteries supplied by EATON.
• Take care to firmly press together the two parts of the connector during remounting.

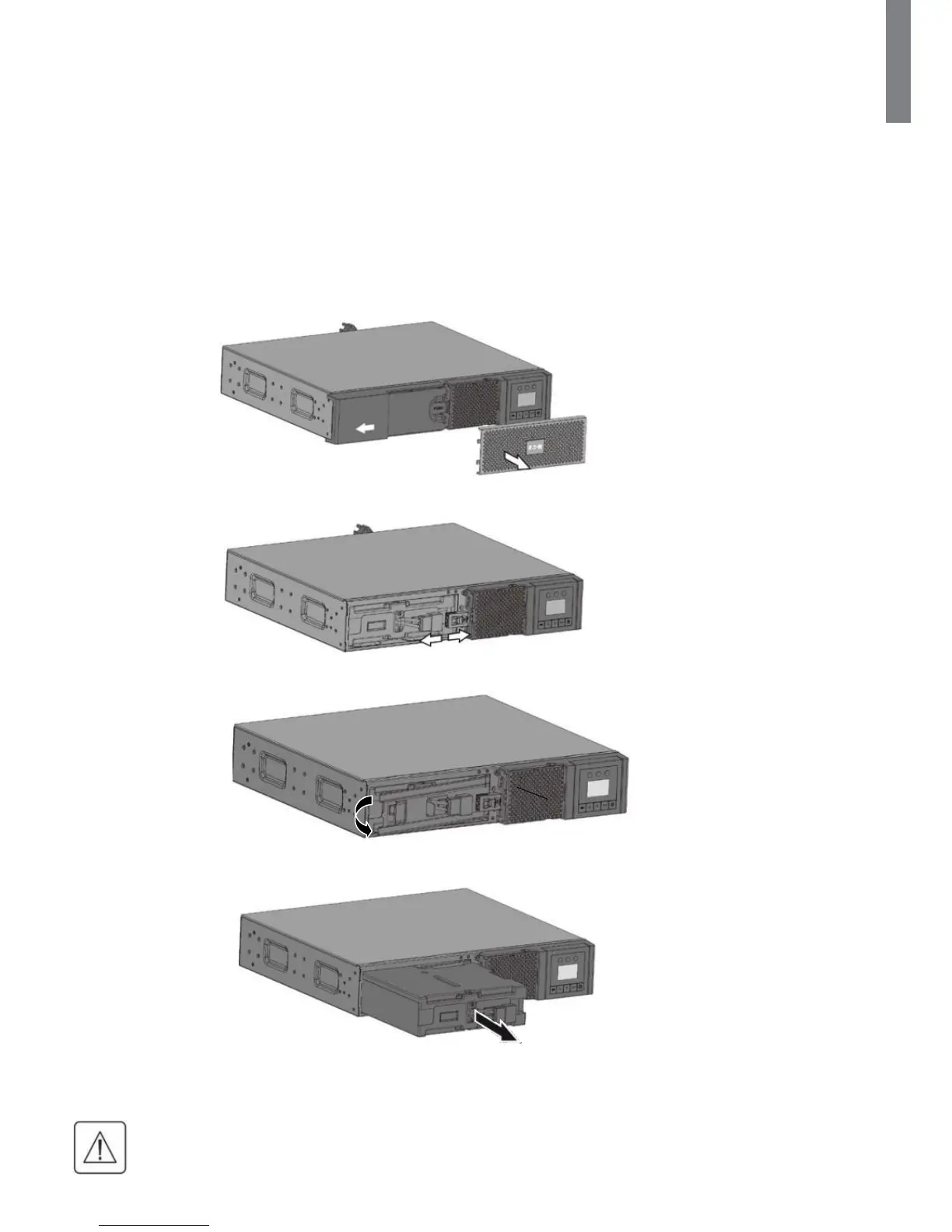

A. Remove the center panel
B. Remove the left-hand side of the
front panel
C. Disconnect the battery module by
separating the two connectors
D. Remove the metal protection
cover in front of the battery (one
screw)
E. Remove the battery module and
replace it
