Eaton 5SC 1500G User Manual

619-00470-02-us (en)
Page 7
ENGLISH
2. Presentation
2.1 Standard installation
D
H
W
Description Weights
(lb/kg)
Dimensions (inch/mm)
D x W x H
5SC 500 15.0 / 6.8 9.4 x 5.9 x 8.3 / 240 x 150 x 210
5SC 750 23.6 / 10.7 13.4 x 5.9 x 8.3 / 340 x 150 x 210
5SC 1000 25.1 / 11. 4 13.4 x 5.9 x 8.3 / 340 x 150 x 210
5SC 1500 34.4 / 15.6 16.1 x 5.9 x 8.3 / 410 x 150 x 210
5SC 500G 14.6 / 6.6 9.4 x 5.9 x 8.3 / 240 x 150 x 210
5SC 750G 22.9 / 10.4 13.4 x 5.9 x 8.3 / 340 x 150 x 210
5SC 1500G 33.5 / 15.2 16.1 x 5.9 x 8.3 / 410 x 150 x 210

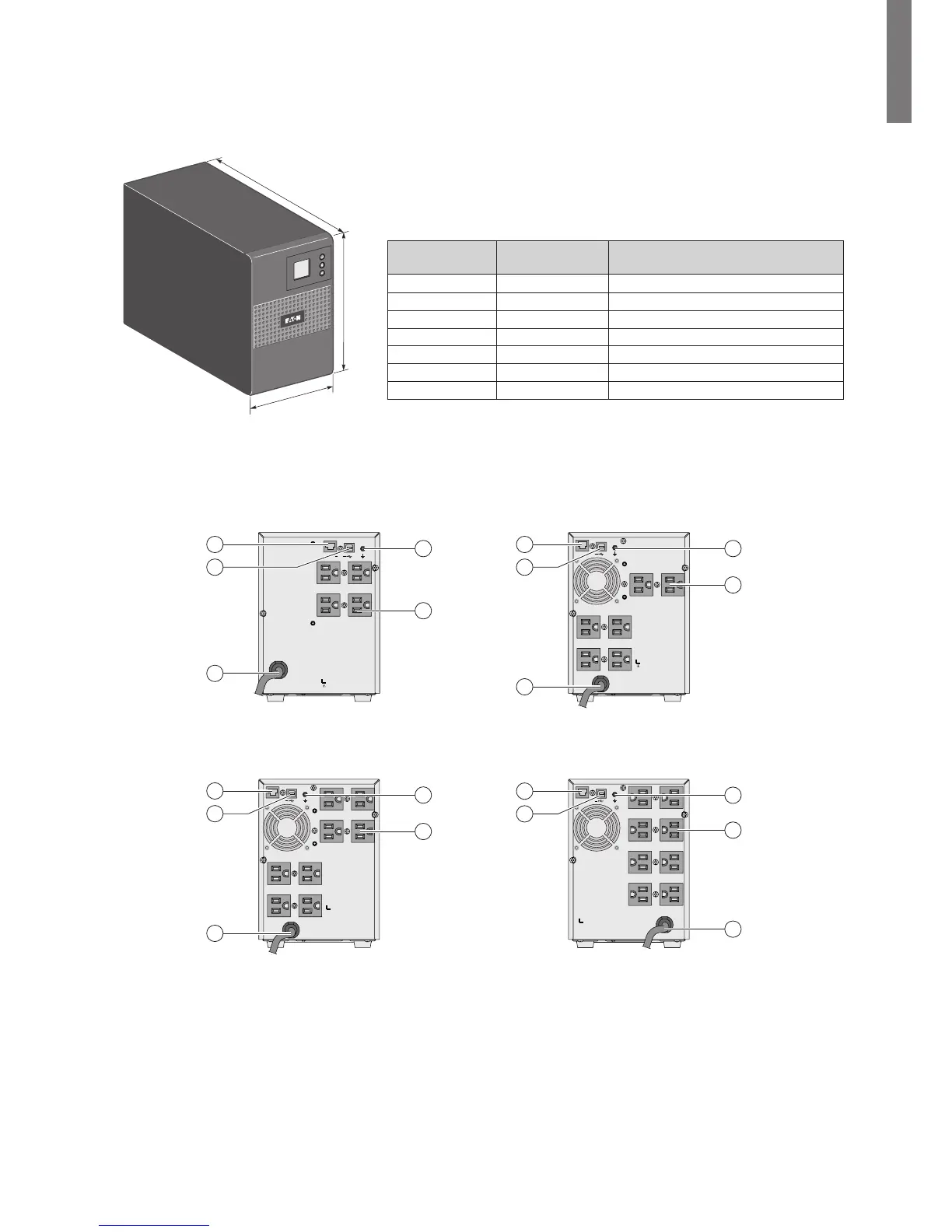

2.2 Rear panels
5SC 500 5SC 750
INPUT
OUTPUT
RS232 OR
5
3
4
1
2
Refer to the Bottom of
the unit for caution markings!
INPUT
OUTPUT
OUTPUT
RS232 OR
5
3
4
1
2
Refer to the Bottom of
the unit for caution markings!
5SC 1000 5SC 1500
INPUT
OUTPUT
OUTPUT
RS232 OR
Refer to the Bottom of
the unit for caution markings!
5
3
4
1
2
INPUT
OUTPUT
RS232 OR
Refer to the Bottom of
the unit for caution markings!
5
3
4
1
2
(1) USB communication port
(2) RS232 communication port
(3) Outlets for connection of critical equipment
(4) Attached 6 ft. input power cord for AC-power source
(5) Ground screw

Eaton 5SC 1500G Specifications

General

Brand	Eaton
Model	5SC 1500G
Category	UPS
Language	English
