INSTALLATION

Eaton

9130 UPS (700–3000 VA) User's Guide S 164201718 Rev 3 www.eaton.com/powerquality

C A U T I O N

A small amount of arcing may occur when connecting the internal batteries. This is normal

and will not harm personnel. Connect the cables quickly and firmly.

2. Connect the internal battery connector (see Figure 15).

Connect the white connectors together, connecting red to red, and

black to black. Press the two parts tightly together to ensure a

proper connection.

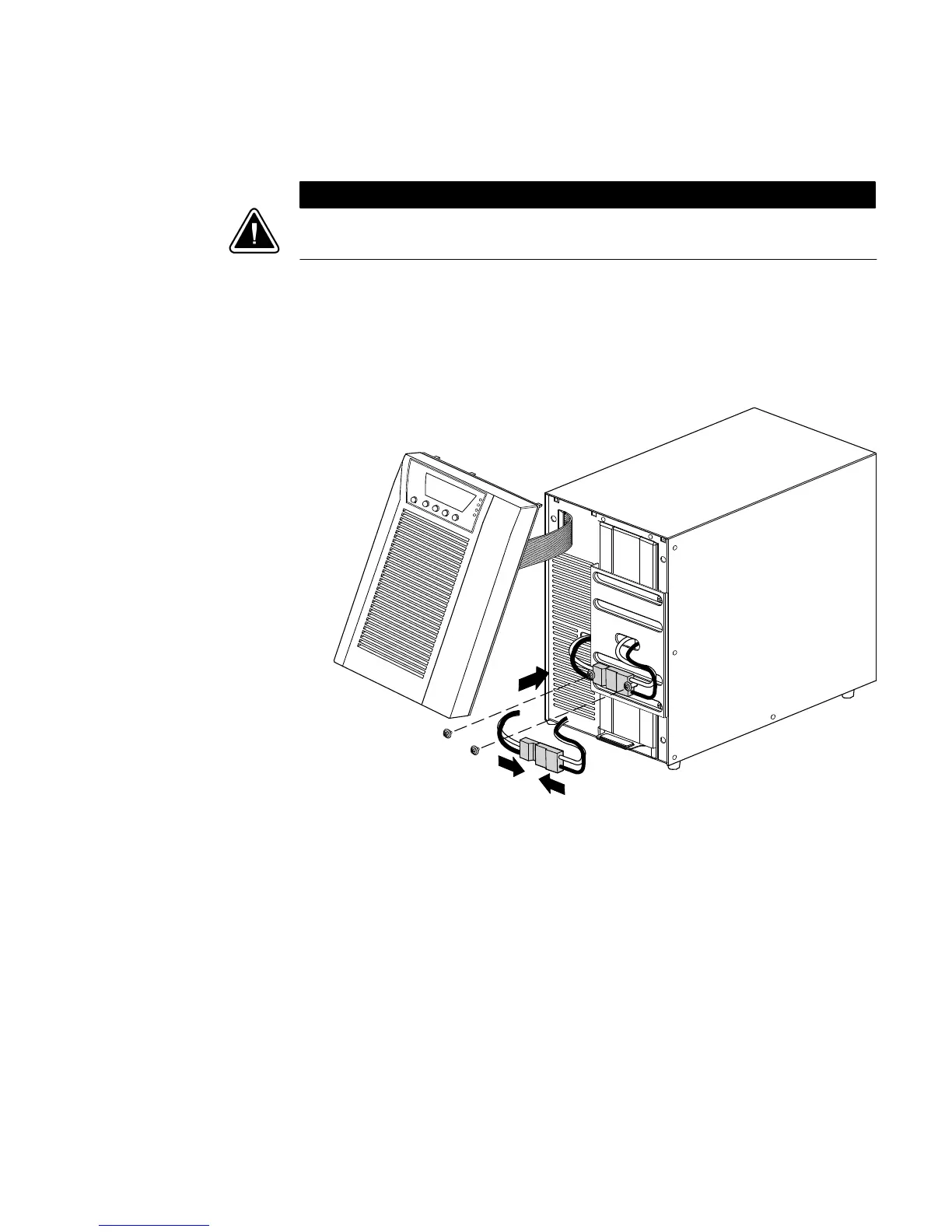

Figure 15. Connecting the UPS Internal Batteries

3. Remove the two screws from the screw mounts and retain (see

Figure 15).

4. Place the battery connector between the screw mounts. Reinstall

the two screws to hold the connector in place.

5. Replace the UPS front cover.

To replace the cover, verify that the ribbon cable is protected, then

insert the clips on the back of the cover into the cabinet and push

firmly to snap the cover into place.
