UPS SETUP
Eaton 9155 UPS (8–15 kVA) User's Guide S 164201553 Rev G (www.eaton.com/powerquality)
9
2. Remove the four M4 screws securing the stabilizing bracket to the cabinet rear
panel and remove the bracket (see Figure 3). Retain the hardware for later use.
NOTE Be sure to retain the stabilizing bracket and hardware for later re-assembly onto the cabinet.
3. Remove the front cover from the bottom cabinet to access the front shipping
bracket.
Press and release the handle latch at the bottom of the cover and then lift the
cover up and off the cabinet.
4. Remove the three M10 bolts securing the rear shipping pad to the pallet and
remove the shipping pad (see Figure 3).
NOTE Hold the back of the cabinet so that the bolts can be removed easily without the cabinet rolling
backward.
5. Remove the two M10 bolts securing the front shipping bracket and remove the
bracket (see Figure 3).
If needed, adjust the leveling feet to release the bracket.
Stabilizing Bracket
Front Shipping
Bracket
Shipping Pad
M4 Screws
M10 Bolts
M10 Bolts

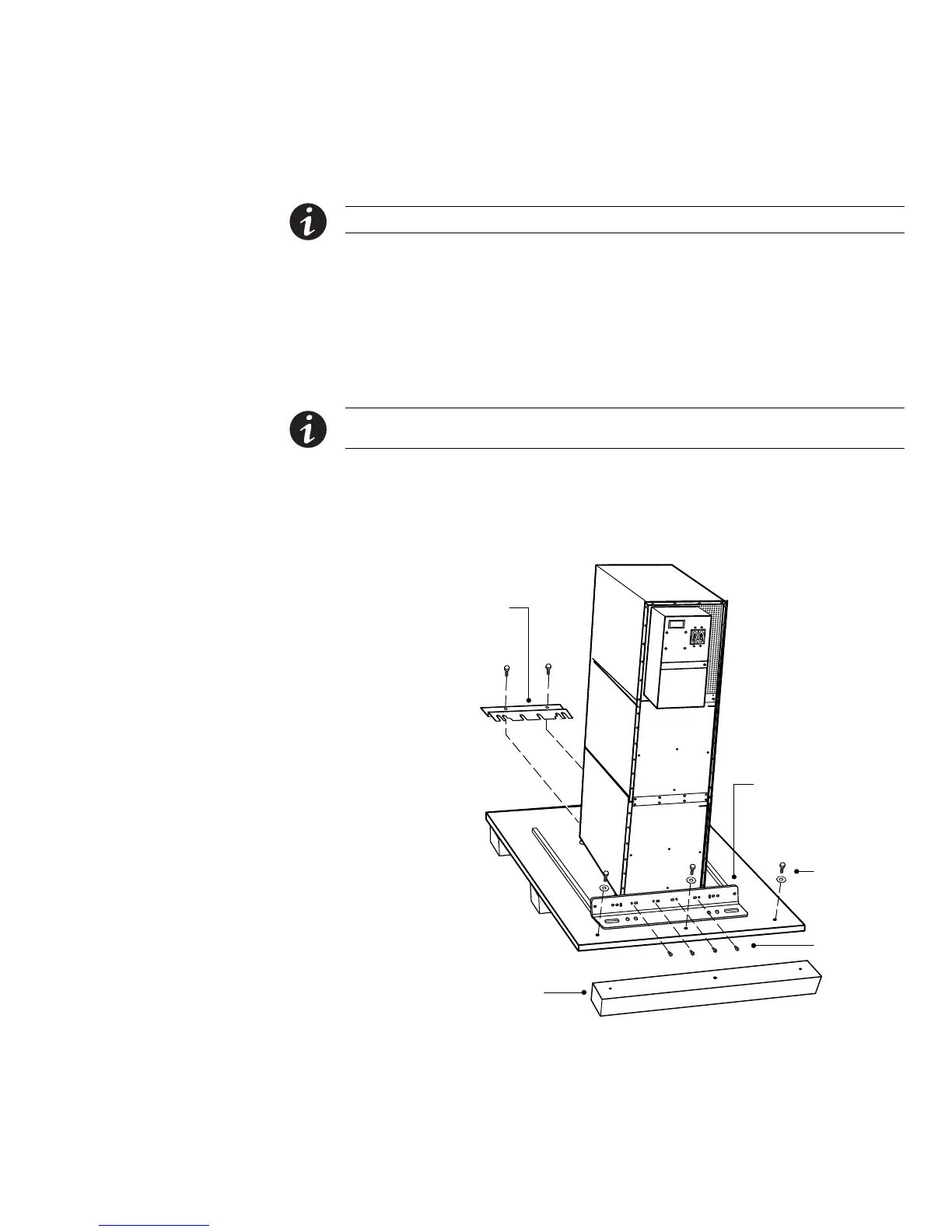

Figure 3. Removing the Brackets and Shipping Pad
6. Reinstall the front cover removed in Step 3.
Hang the top edge of the cover on the cabinet first, then lower the bottom edge
and snap into place.
To Next Page
