Eaton 9355 UPS (10/15 kVA) User’s Guide 164201594—Rev H0 41

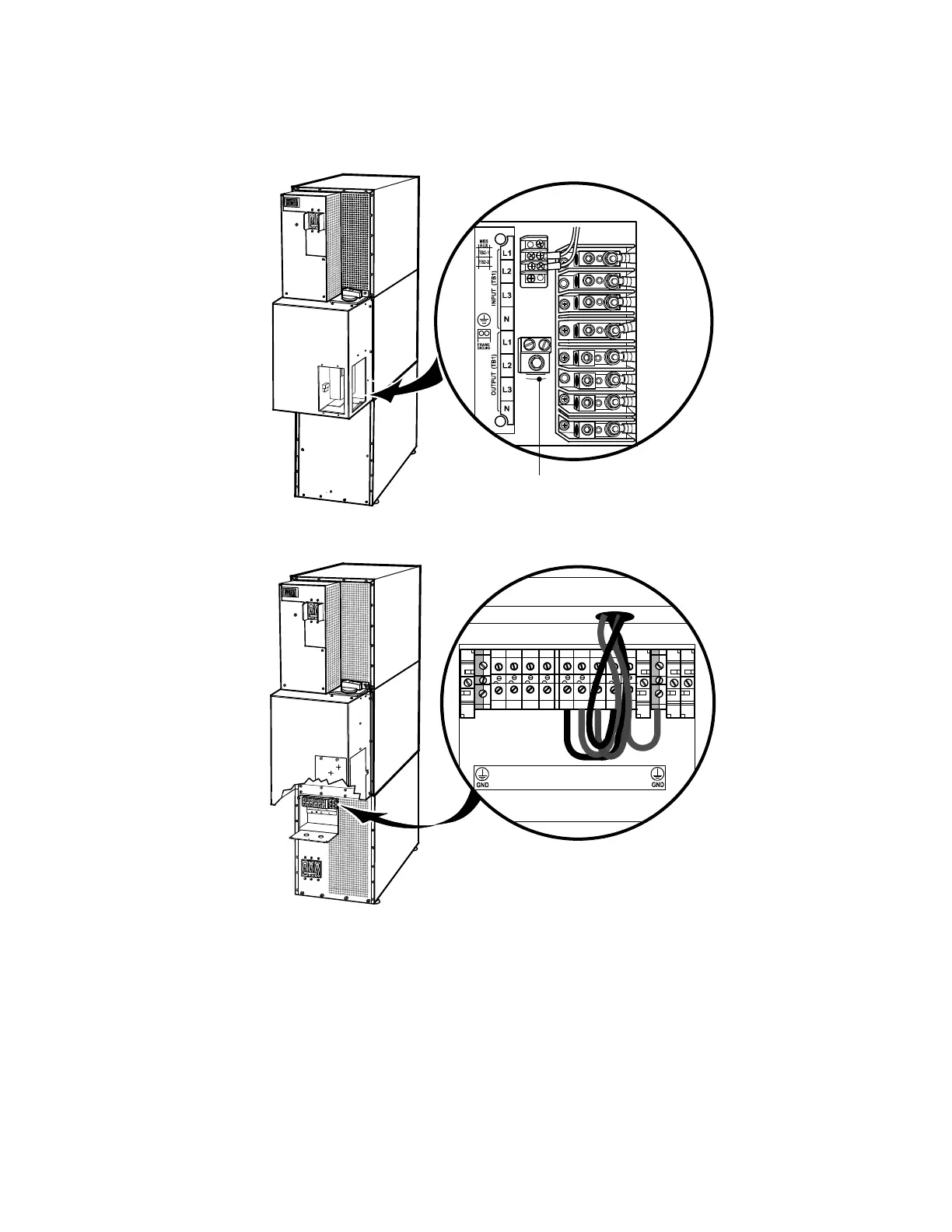

Figure 23. UPS Terminal Block (3-High Shown)
Ground
Figure 24. Input Isolation Transformer Terminal Block
L1 L2 L3 N
INPUT
L1 L2 L3 N
OUPUT
N
13. For UPS only installations, replace the UPS wiring access cover and conduit landing plate.
For UPS installations with an input isolation transformer, replace the transformer wiring access cover.
14. Proceed to to complete the UPS installation.
44..33..33 UUPPSS wwiitthh aa VVeerrssiioonn 11 WWaallll--MMoouunntteedd BByyppaassss SSwwiittcchh
This chapter describes installing the wall-mounted bypass switch with the UPS. The wall-mounted bypass
switch is a Make-Before-Break (MBB) maintenance bypass switch.
UPS System Installation

Eaton 9355 Specifications

General

Efficiency	91 %
Noise level	58 dB
Output power	27000 W
Input frequency	50/60 Hz
Audible alarm(s)	Yes
Input power factor	0.99
Output power factor	0.9
Output power capacity	30 kVA
Input operation voltage (min)	220 V
Input current Total Harmonic Distortion (THD)	5 %
RS-232 ports	1
AC outlet types	-
AC outlets quantity	- AC outlet(s)
Safety	IEC 62040-1-1, IEC 60950, EN 62040-1-1, UL 1778, NOM-0190SCP8-1993
Form factor	Tower
Display type	LCD
Certification	EN 50091-2 Class A\\r UL, cUL, NOM-NYCE
Product color	Black
Battery technology	Sealed Lead Acid (VRLA)
Typical backup time at half load	- min
Operating altitude	0 - 3000 m
Storage temperature (T-T)	0 - 25 °C
Operating temperature (T-T)	10 - 40 °C

Weight and Dimensions

Depth	866.14 mm
Width	508 mm
Height	1676.4 mm
