3. Installation for 9PX 6K SP

3.4 Tower installation

If you ordered other UPS accessories, refer to specific user manuals to check the tower installation

with the UPS.

To install the cabinet:

1. PlacetheUPSonaat,stablesurfaceinitsnallocation.

2. Always keep 150 mm of free space behind the UPS rear panel.

3. Ifinstallingadditionalcabinets,placethemnexttotheUPSintheirnallocation.

4. Install mounting brackets to attach the EBM to UPS module (if EBM is present).

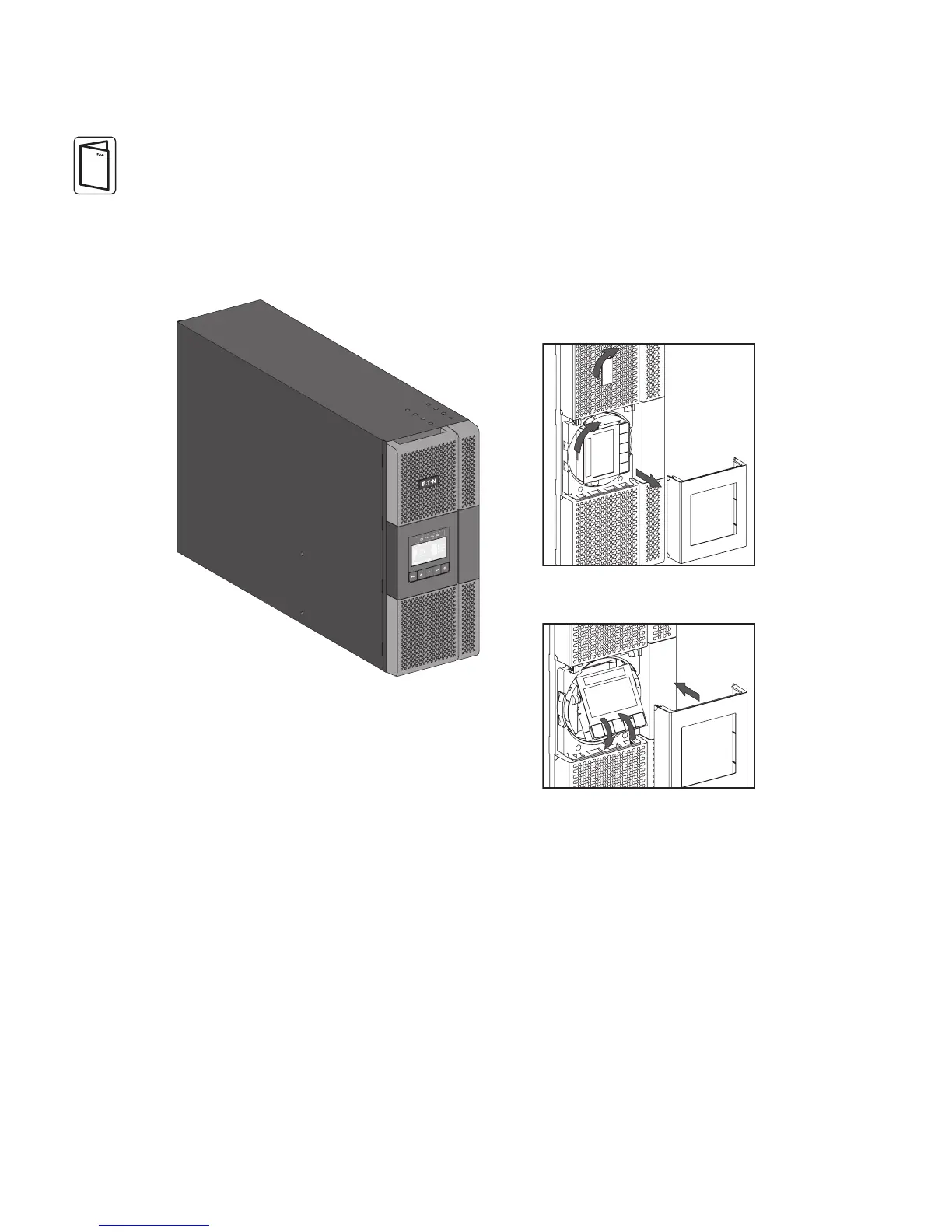

• Adjustment of the orientation of the LCD

panel and of the logo.

• Adjustment of the angle of vision of the

LCD panel.
