Page 9
9PX-6K-SP_EN
ENGLISH
2. Presentation

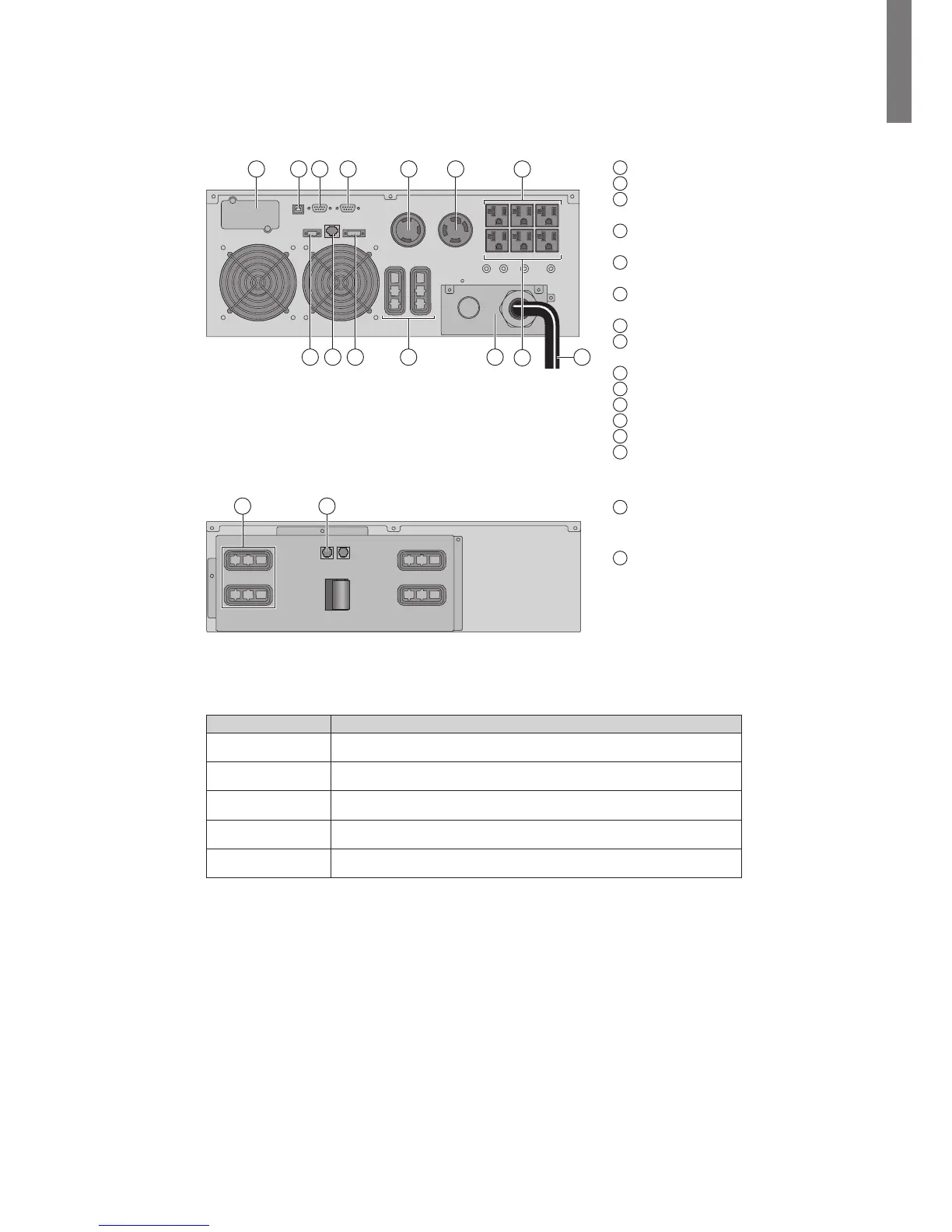

2.2 Rear panel layout
9PX 6K SP
1 3 12 13
14
27
9 108654
11
1
RS232 communication port
2
USB communication port
3
Dry (relay) contacts communication
port
4
Connector for ROO (Remote On/Off)
control
5
Connectors for automatic recognition
of an additional battery module
6
Connector for RPO (Remote Power Off)
control
7
Slot for optional communication card
8
Connector for additional battery
module
9
Input/Output terminal blocks
10
Input power cable with L6-30P plug
11
(1) L6-30R outlet
12
(1) L14-30R outlet
13
(3) 5-20R outlets (L1)
14
(3) 5-20R outlets (L2)
9PX EBM 240SP
(Extended Battery Module of the 9PX 6K SP)
16
15
15
Connectors for battery modules
(to the UPS or to the other battery
modules)
16
Connectors for automatic recognition
of battery modules
2.3 Accessories (optional)
Part number Description
9PXEBM240SP Extended Battery Module
Modbus-MS Modbus and network card
Relay-MS Relay card
BINTSYS Battery Integration System
EBMCBL240 6 feet cable for 9PXEBM240SP
