Standard/Wheel motor with extreme duty
seal guard

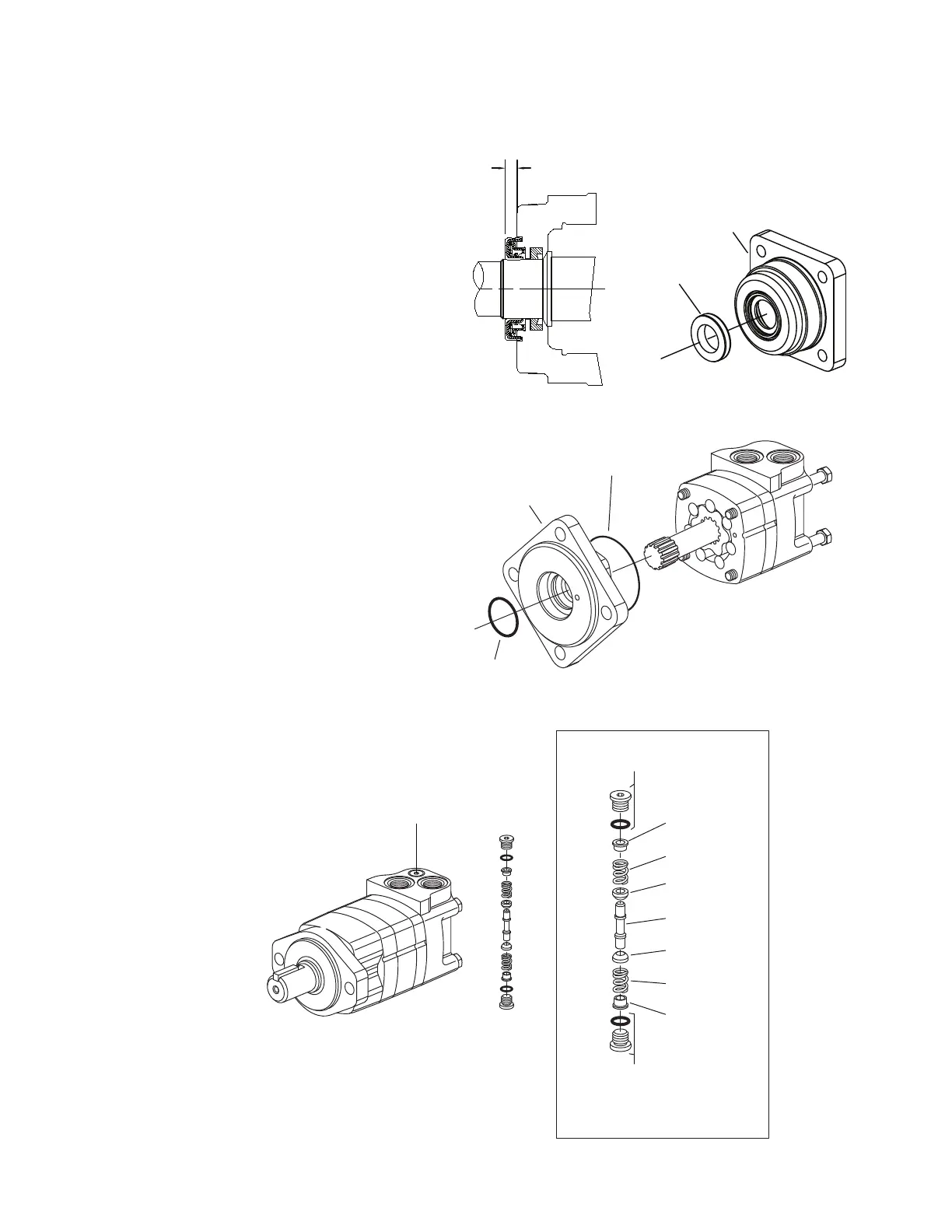

Installation of extreme duty seal guard:
After completing assembly of the shaft and bearing
assembly into the bearing housing, press the Extreme Duty
Seal Guard onto the shaft with a tool that will provide an
even push over the seal. This tool must bottom out against
the bearing housing and provide a 7,1 mm [.28 inch] stop
for the seal guard. (Applicable for standard and wheel
mount motors)
Extreme Duty
Seal guard
Bearing Housing with
Extreme Duty Seal
guard Groove
7.1
[.28] MAX
This motor is the same as the standard motor without the
shaft/bearing assembly, and bearing housing. The mounting
flange replaces the bearing housing, see Figure 20. Follow
same disassembly and reassembly procedures as rear
section of standard motor.
Seal
Seal
Flange
Bearingless motor
Disassembly reassembly
shuttle valve option
Disassembly of shuttle valve option, this valve is located in
the valve housing. Clean and inspect shuttle valve parts and
reassemble with new seals, torque plugs to
8-11 Nm [75-100 lb-in].
Shuttle Location
when Applicable
O-ring/Plug S/A
Torque to 8-11 Nm [75-100 lb-in]
O-ring/Plug S/A
Torque to 8-11 Nm [75-100 lb-in]
Shuttle Valve Option
Piston
Spring
Poppet
Poppet
Spring
Dash Pot
Dash Pot
Figure 21.
Figure 22.
Figure 23.
To Next Page
