2000 Series Disc Valve Motors
2000 SerieS diSc valve geroler motor C-MOLO-TM010-E1 June 2018 www.eaton.com
Tools required for disassembly
and reassembly.
Torque wrench 57Nm [500 lb-in] capacity
300-450 [12-16]* breaker bar
9/16 socket
Small screwdriver 150-200 x 6,5 [6-8 x 1/4] blade
3/16 Allen wrench
Press
* Unless indicated otherwise, measurements
are given in mm [inches]
** Shaft seal installation tool (600496)
** Bullet (600465) for 1 diameter shafts
The following tools are not necessary for
disassembly and reassembly, but are

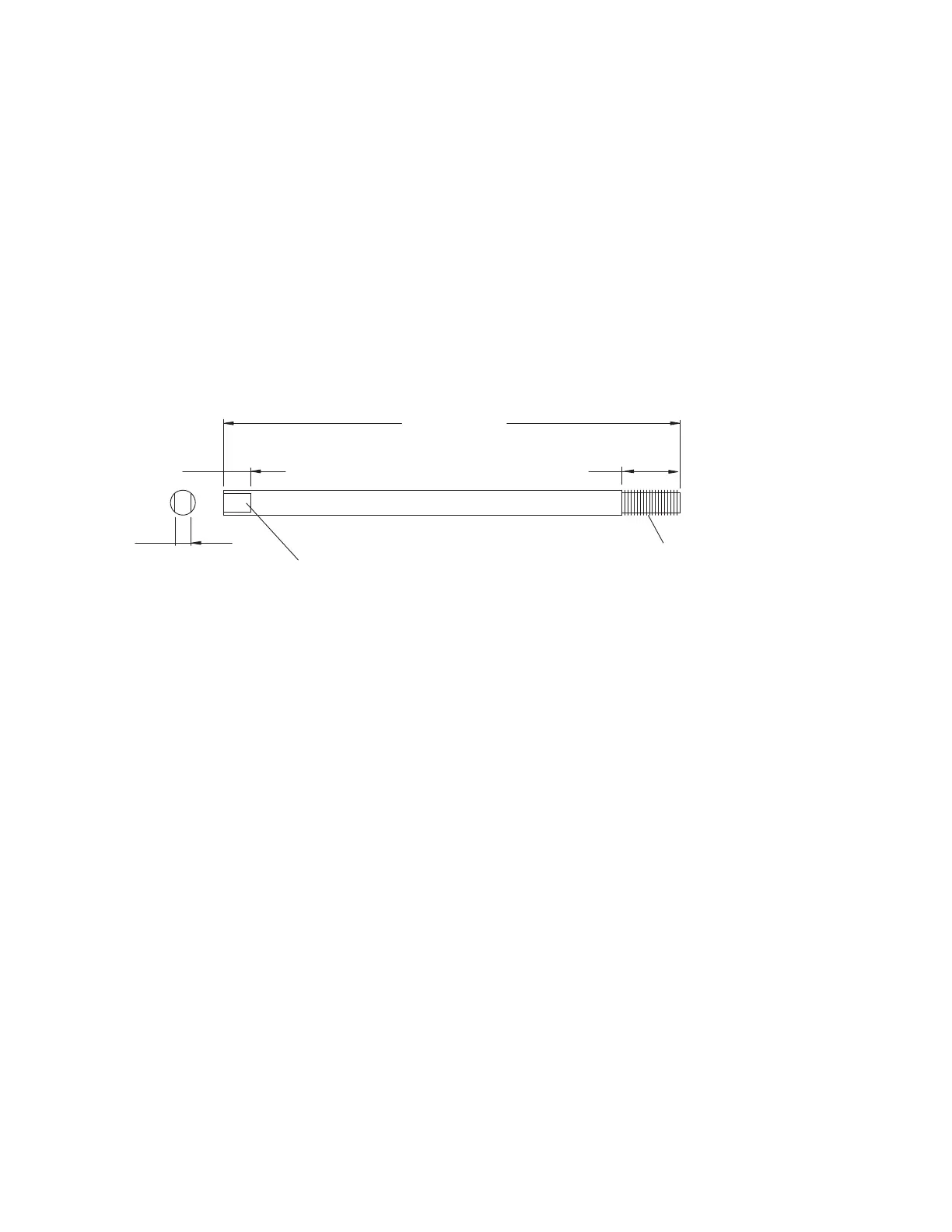

extremely helpful. Alignment studs (2)
8,0 [.312]
Grind at spots on each side
Approx. 13,0 [.50]
200,0 [8.00]
Alignment studs (2)
25,0 [1.00]
3/8-24 UNF thread
9,5 [.375] Dia. Steel Rod
