I.B. ATS-V003

Page 14

Effective 6/98

Gutter

Space

Transformer

Panel

Logic

Panel

Power

Panel

Top of Lugs

on Power Panel

Side ViewFront View

Plan View

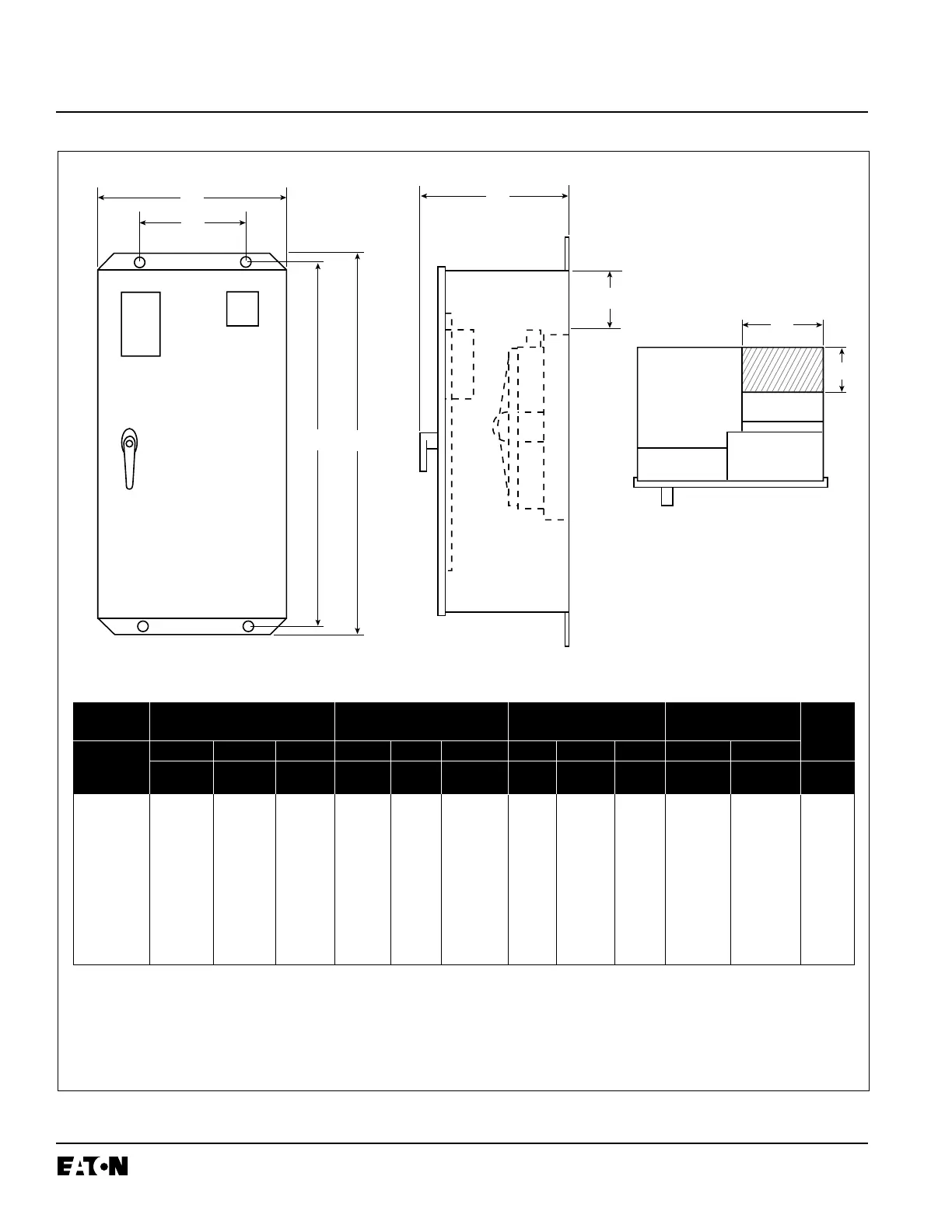

Figure 4-1 Enclosed Automatic Transfer Switch Dimensions and Approximate Weights

Approx.

Switch Type Power Panel Enclosure Gutter Space Bolt Pattern Shipping

Height Width Depth Height Width Depth Width Depth Bending Horizontal Vertical Weight

In. (mm) In. (mm) In. (mm) ➀ In. (mm) In. (mm) In. (mm) ➁ In. (mm) In. (mm) In. (mm) In. (mm) In. (mm) lbs. (kg)

AB C DEF G H

FD (30-150A) 11.00 (279) 17.00 (432) 6.81 (173) 44 (1118) 21 (533) 18.13 (461) 21 (533) 14.5 (368) 4 (102) 11.00 (279) 42.86 (1089) 210 (95)

KD (225A) 24.50 (622) 11.88 (302) 17.5 (445) 44 (1118) 21 (533) 19.63 (499) 8 (203) 4.00 (102) 6 (152) 11.00 (279) 42.86 (1089) 380 (173)

KD (300A) 24.50 (622) 11.88 (302) 17.5 (445) 52 (1321) 21 (533) 19.63 (499) 8 (203) 4.00 (102) 9 (229) 11.00 (279) 50.86 (1292) 380 (173)

LD (400A) 26.00 (660) 16.88 (429) 17.5 (445) 61 (1549) 26 (660) 19.63 (499) 8 (203) 4.00 (102) 11 (279) 16.00 (406) 59.86 (1520) 430 (195)

MA (600A) 36.25 (921) 16.88 (429) 17.5 (445) 73 (1854) 26 (660) 20.63 (524) 8 (203) 4.75 (121) 12 (305) 16.00 (406) 71.86 (1825) 525 (238)

NB (800A) 36.25 (921) 16.88 (429) 19.0 (483) 79 (2007) 26 (660) 20.63 (524) 8 (203) 4.75 (121) 15 (381) 16.00 (406) 77.86 (1978) 610 (277)

NB (1000A) 36.25 (921) 16.88 (429) 19.0 (483) 79 (2007) 26 (660) 20.63 (524) 8 (203) 4.75 (121) 15 (381) 16.00 (406) 77.86 (1978) 610 (277)

ND (800A) 36.25 (921) 16.88 (429) 19.0 (483) 79 (2007) 26 (660) 20.63 (524) 8 (203) 4.75 (121) 15 (381) 16.00 (406) 77.86 (1978) 610 (277)

ND (1000A) 36.25 (921) 16.88 (429) 19.0 (483) 79 (2007) 26 (660) 20.63 (524) 8 (203) 4.75 (121) 15 (381) 16.00 (406) 77.86 (1978) 610 (277)

Logic Panel: 38 in. H x 11 in. W x 6.5 in. D/965 mm H x 279 mm W x 165 mm D

Transformer Panel: 22 in. H x 16.5 in. W x 6.5 in. D/559 mm H x 419 mm W x 165 mm D (30 - 100A)

28.63 in. H x 8.25 in. W x 5.5 in. D/727 mm H x 210 mm W x 140 mm D (150 - 1000A)

➀ Depth includes the interior handle extended.

➁ Enclosure depth includes the exterior (or door) handle.

Note: Run power cables behind

transformer panel in the

gutter space provided.
